2.5 Attaching the 759 Swing Head
14
824 Easy Sample Changer, Installation
2.5 Attaching the 759 Swing Head
In order to accurately move to the individual sample vessels when multi-
row sample racks are used (see p. 19), the 759 Swing Head can be
used instead of a normal titration head. It is equipped with either a titra-
tion head (Model 2.759.0020) or with a transfer head (Model
2.759.0010).
The 759 Swing Head with titration head can be used with the 2-row
sample rack M48-1. The swing head version with the transfer head is in-
tended for use with the 3-row sample racks M128-2, M129-2 and M142-
2.
2.5.1 Procedure
• Switch off instrument.
• Remove the titration head 14 by loosening the four screws on both
the outer sides of the lift.
• Screw off the tubing guide from the titration head 14.
• Attach the new titration head (6.1462.020) or the transfer head
(6.1462.010) to the bottom of the swing head by using the three
screws provided.
• Screw the tubing guide 12 onto the new titration or transfer head.

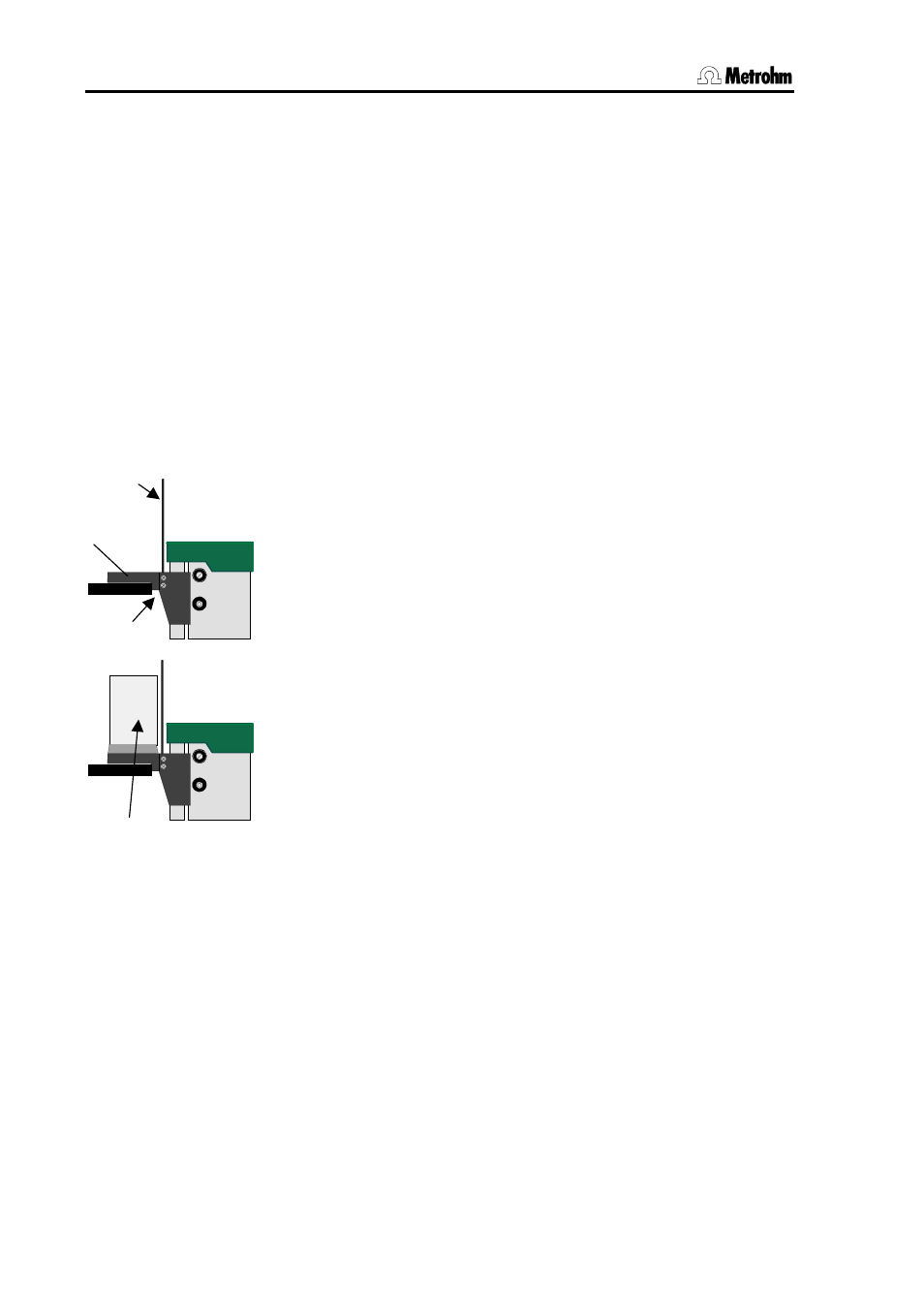

Fig. 12
Attaching the 759
Swing Head
• Attach new titration or transfer head to the lift and fasten it with the
four screws.
• Connect the 759 Swing Head to the Remote socket 19 of the 824
Easy Sample Changer, see also p. 17.
• Place a multi-row sample rack on the turntable of the sample
changer.
• Switch on instrument.
• If the swing head moves when the instrument is switched on then
this means that it has been recognized by the 824 Easy Sample
Changer and is ready for use.
• If the swing head does not move when the instrument is switched on
then switch the instrument off and then on again.
Loosen
screws
12
759 Swing
Head
14
