4.1 Description of the curves
12
822 Titration Curve Simulator, Instructions for Use
parameters: DET U with standard parameters
5 mL exchange unit
stop volume: 5.0 mL

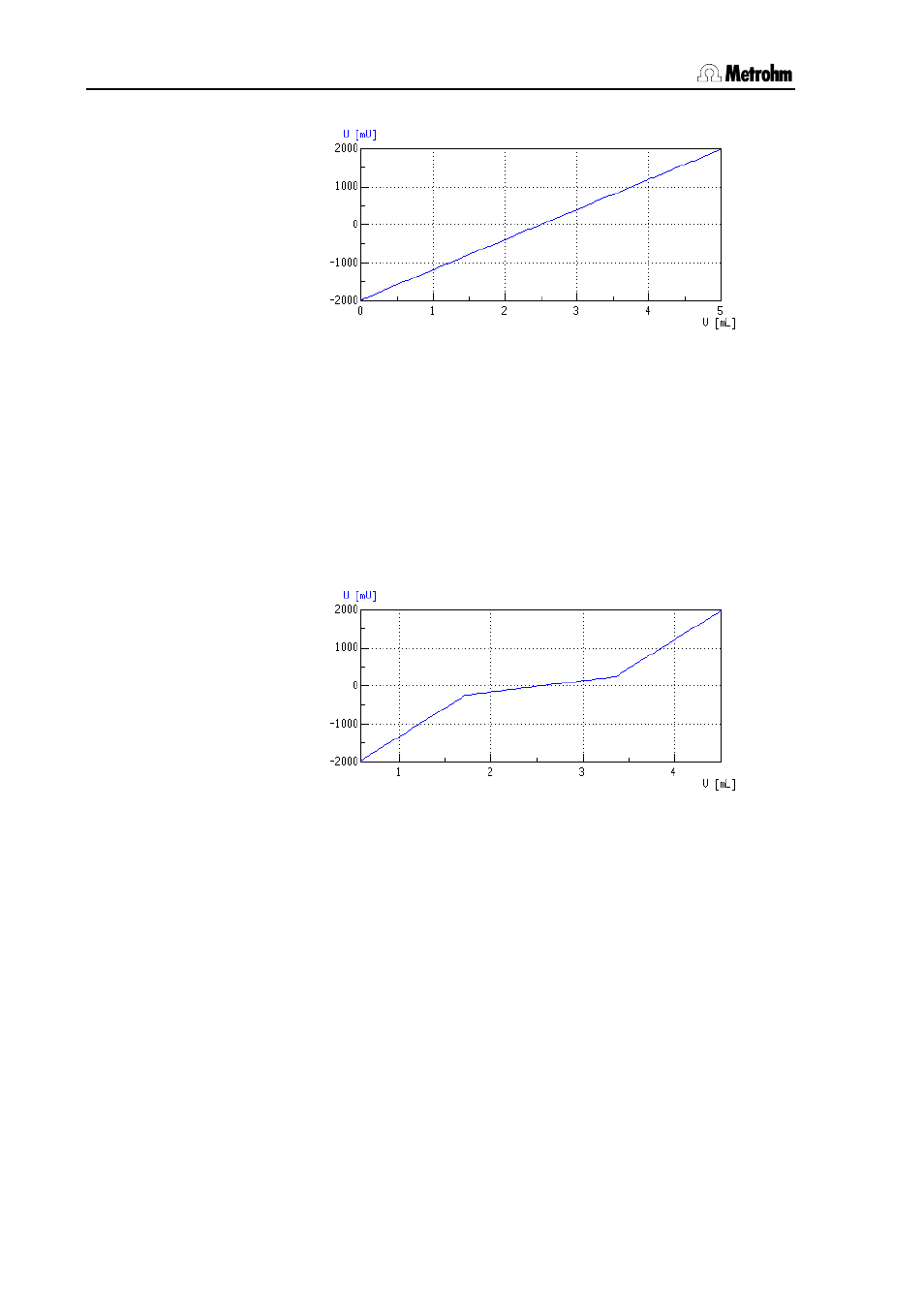

4.1.3 D/A – converter test
Curve "6" checks the D/A converter in the entire voltage range from
-2.5 V to +2.5 V. The 822 Titration Curve Simulator produces the follow-
ing curve:
parameters: DET U with standard parameters
5 mL exchange unit
stop volume: 5.0 mL
The A/D converter input of the titrators ranges only from –2 V to +2 V.
The area below and above is cut off.
