2.3 Connection to the remote interface
6
822 Titration Curve Simulator, Instructions for Use

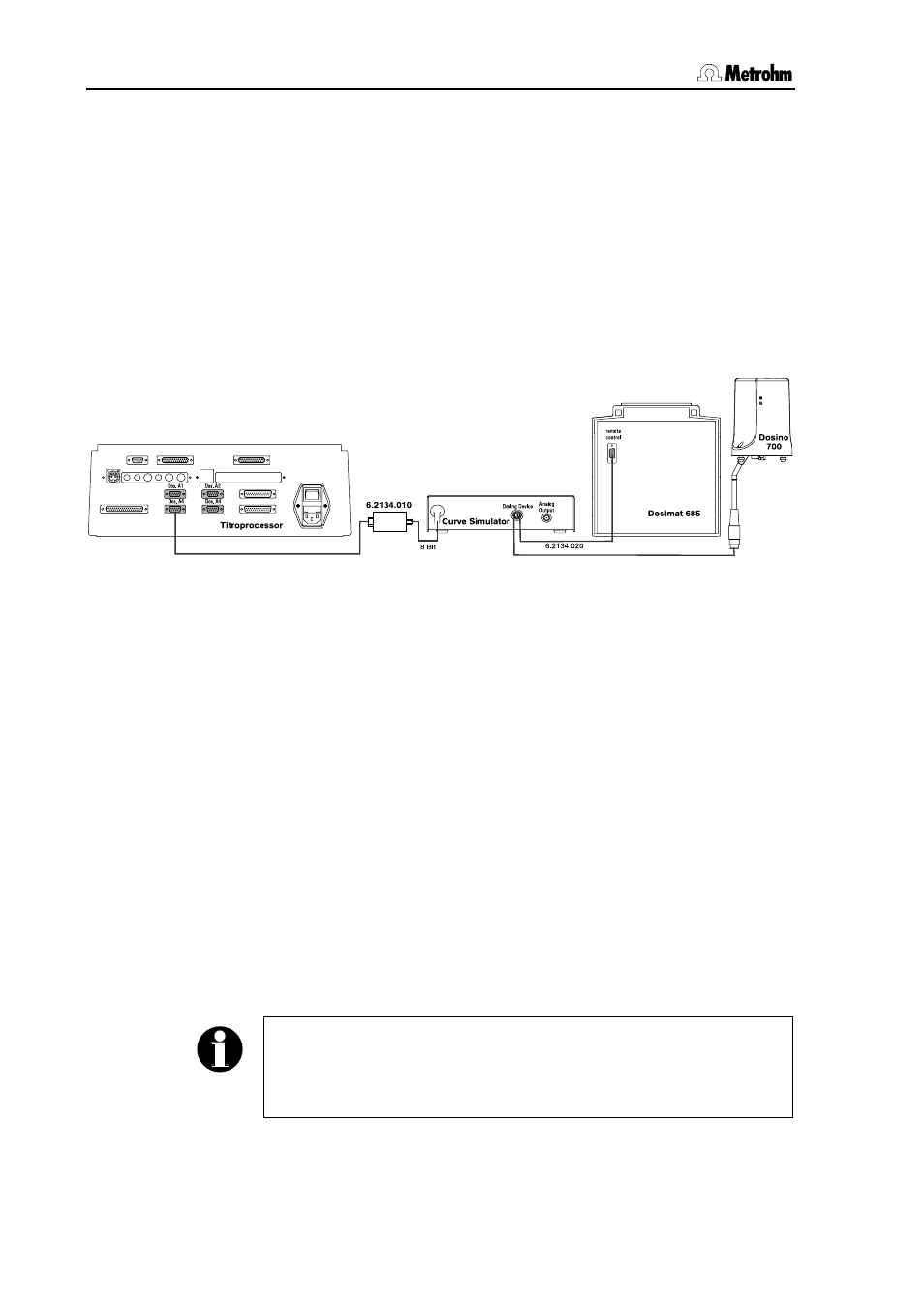

2.2.2 Connection to Titroprocessors
Connect the 822 Titration Curve Simulator to the 6.2134.010 adapter
box with the connector cable 4. Connect the adapter box with one
of the dosing interfaces Dos. A1...4 of the Titroprocessor.
Connect the dosing device to the Dosing device connection 6 of the
822 Titration Curve Simulator.
Connect the Analog Output 7 with the measuring input of the Titro-
processor with the 6.2116.020 cable.
Adjust the communication protocol 1 to 8 bit.
700 Dosino
The 700 Dosino with the 8-pin MiniDIN plug type (2.700.0020) can be
connected directly to the 822 Titration Curve Simulator. If you have a
700 Dosino with a 9-pin Sub-D plug type (2.700.0010) you need the
6.2134.020 adapter cable.
2.3 Connection to the remote interface
2.3.1 Connection to Titrinos with internal dosing drive
Connect the 822 Titration Curve Simulator with the connector cable
4 to the remote interface of the Titrino.
Connect the Analog Output 7 with the measuring input of the Titrino
with the 6.2116.020 cable.
The adjustment of the communication protocol 1 does not matter in
this case.
Switch on the activation pulse of the Titrino under parame-
ters>preselections.
Note!
The parameter activate pulse does not exist for the 701 and 787
Titrinos. The conditioning must therefore be switched off so that a KF
titration can be simulated.
