2 Overview of the instrument

930 Compact IC Flex Oven/SeS/PP (2.930.2500)

■■■■■■■■

7

2 Overview of the instrument

2.1

Front

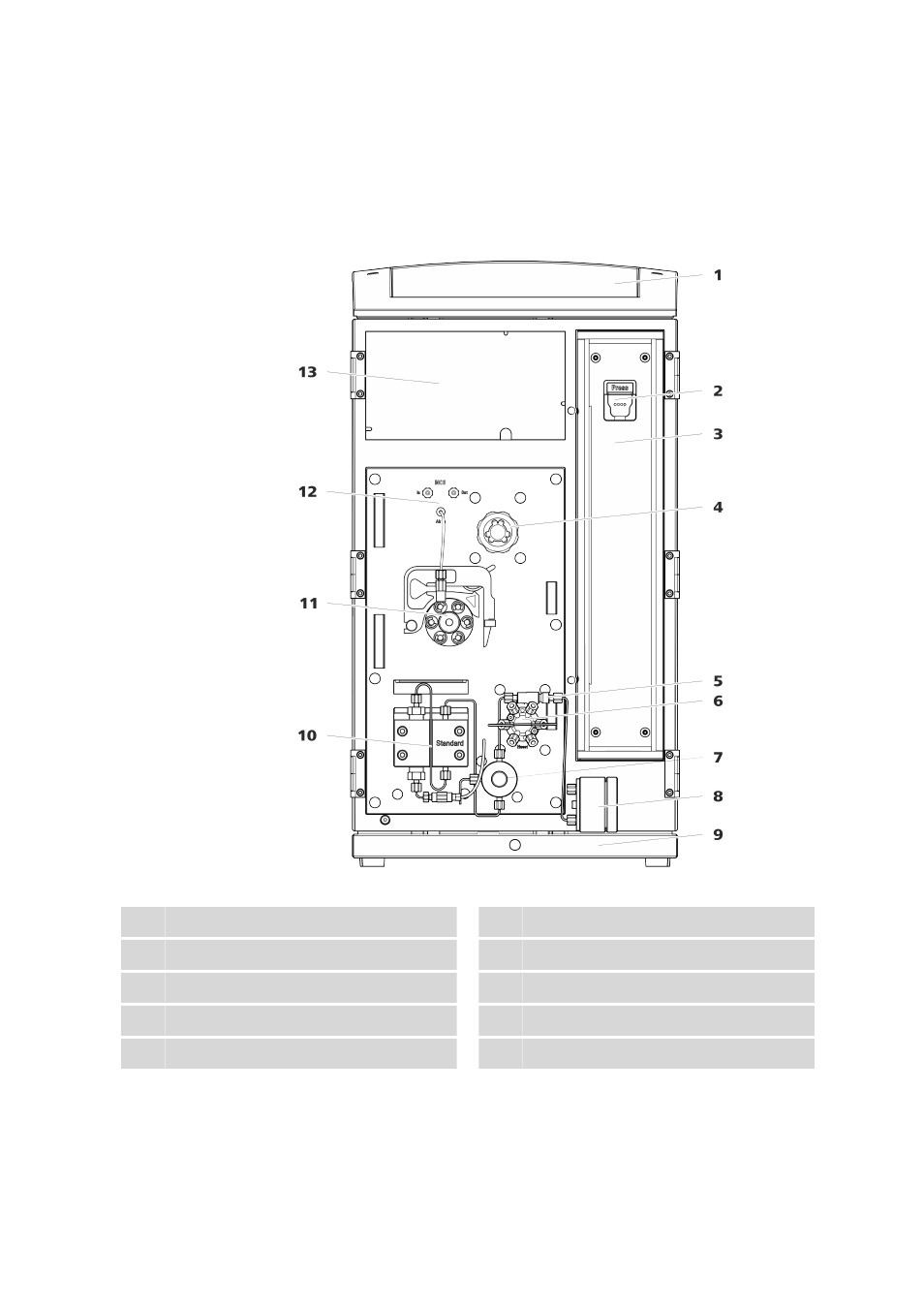

Figure 1

Front

1

Bottle holder

2

Column holder

3

Column oven

4

Suppressor

5

Inline filter

6

Injection valve

7

Purge valve

8

Pulsation absorber

9

Base tray

10 High-pressure pump
