▪▪▪▪▪▪▪ 51

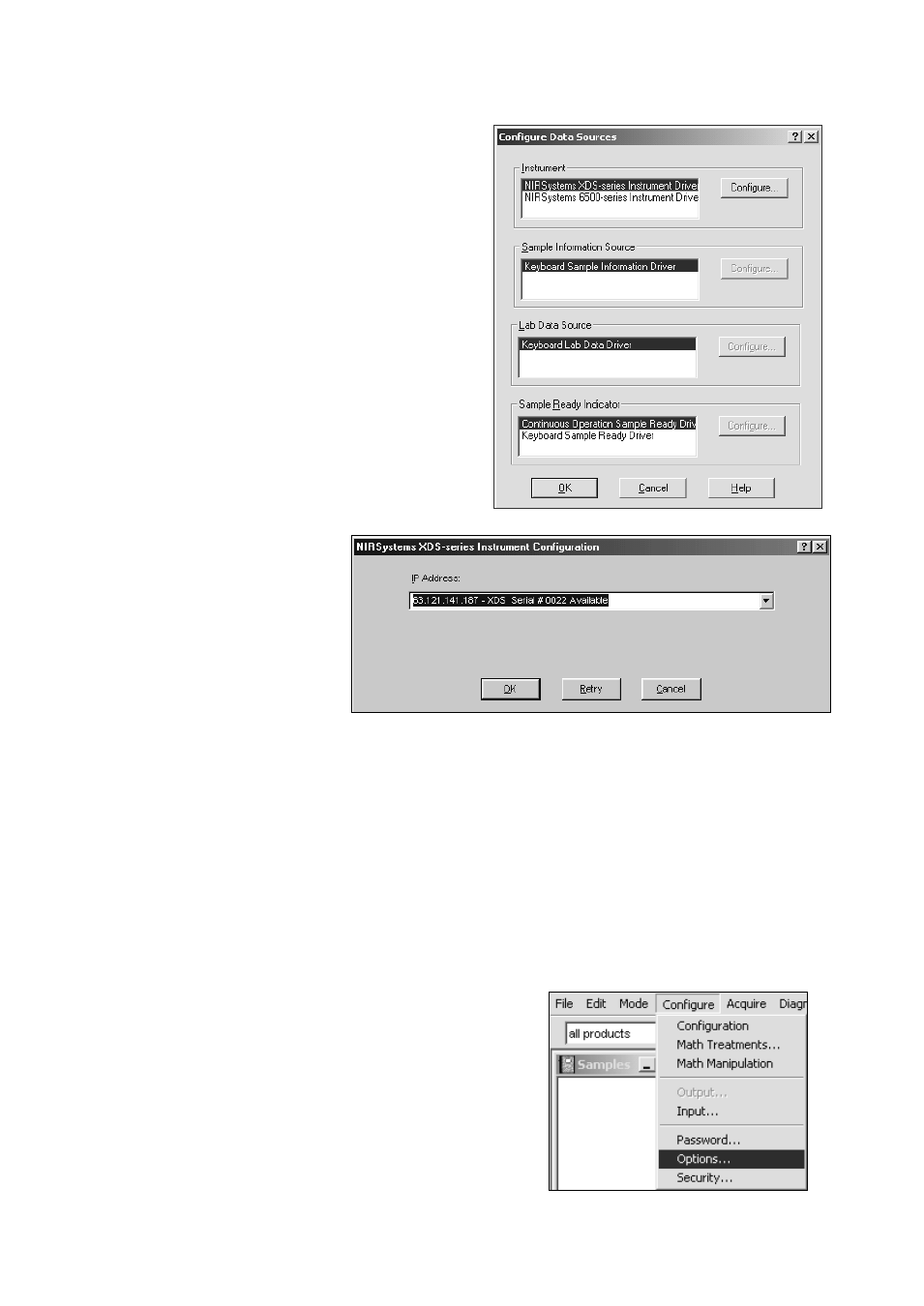

7. This screen sets up communication
parameters for the instrument. The XDS
instrument has a unique driver. Highlight
this box and click on “Configure”.
8. This box allows the
user to select the
instrument identified by
the instrument serial
number. The number in
front of the instrument
S/N is the IP (Internet
Protocol) address
assigned to the XDS
instrument.
Use the drop-down
arrow of the IP Address
box, and select the
correct instrument. The
instrument must show
“Available” to be
selected.
9. Highlight the instrument, then Click “OK” to exit the dialog box.
10. If the data to be acquired will be used on other
similar instruments, it is advisable to enter
Configure, Options from the menu bar.
This should be done before setting up a Data
Collection Method (DCM).
