2.4 Remote Connections
717 Sample Changer, Installation
13
2.4.1 External Bus Connections

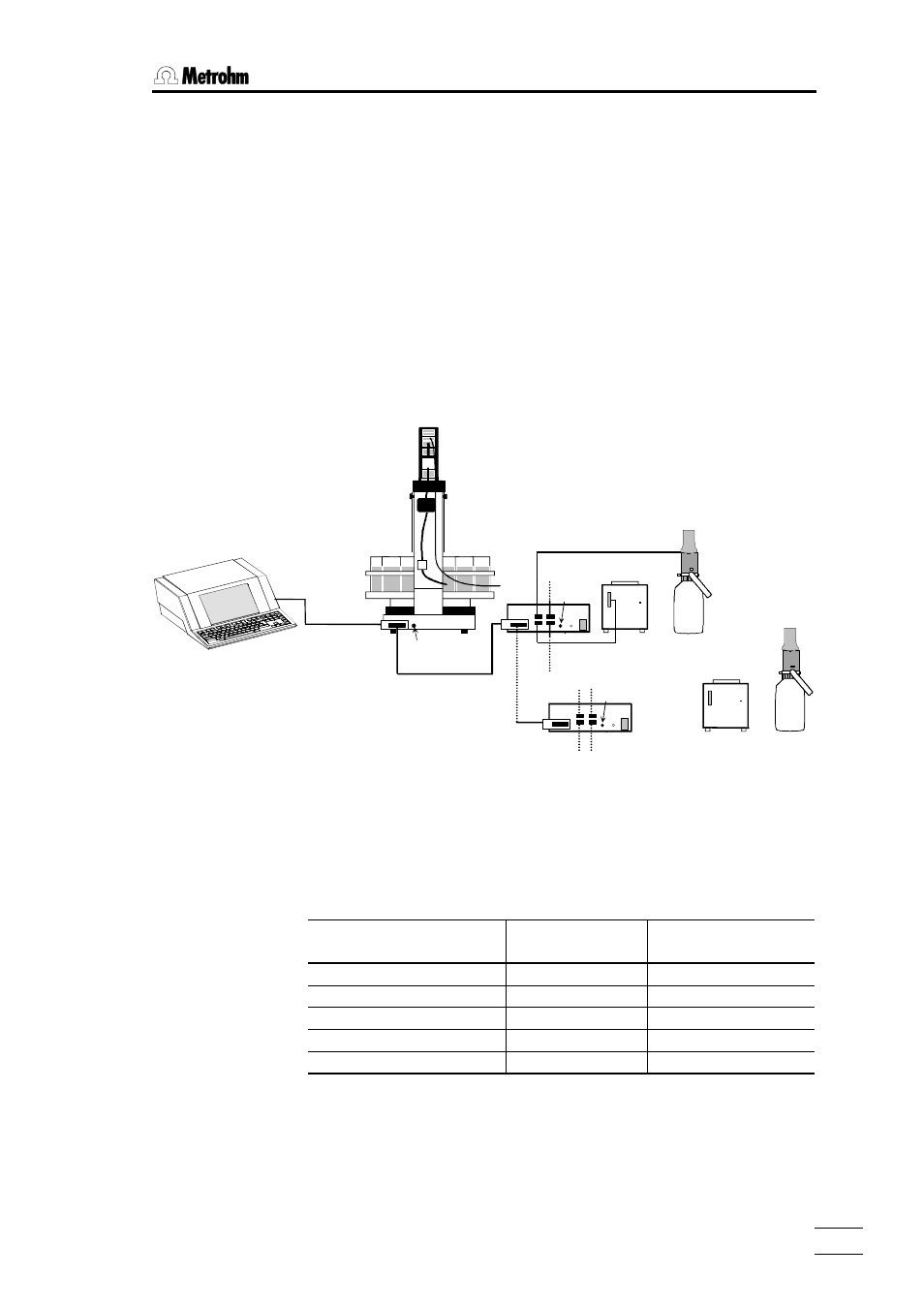

Via the "External Bus" the 717 Sample Changer is operated by a
control instrument, e.g. the 726 Titroprocessor.
Four dosing instruments (Dosimat 685 or Dosino 700) may be
connected to the "External Bus" interface using a 729 Dosimat
Interface. Up to two Dosimat Interfaces may be connected in line
(daisy chaining) and be assembled with dosing instruments. Each
interface must be addressed correctly.
Before the instruments are connected, all devices have to be
switched off.
717
700
685
729
Dos. 2
Dos. 1
729
EBus
Adress 2
Dos. 3
Dos. 4
EBus
Adress 1
700
685
Dos. 1...4
EBus
Adress 1
EBus
Adress 0
Devices such as sample changers which consume a lot of current
should be connected in the first position of the EBus chain behind
the control instrument.
Addresses:
"External Bus"-
Address
Dosing Unit
Control instrument
0
Dos. 1 … Dos. 4
1. 717 Sample Changer
1
2. 717 Sample Changer
2
1. Interface
1
Dos. 1 … Dos. 4
2. Interface
2
Dos. 1 … Dos. 4
The corresponding EBus address can be set with a screwdriver on
the EBus address selector that is located on the rear panel of the
device (see p. 3).
Cable 6.2135.000
Cable 6.2134.000
Control instrument
