2.4 Remote Connections
717 Sample Changer, Installation 11

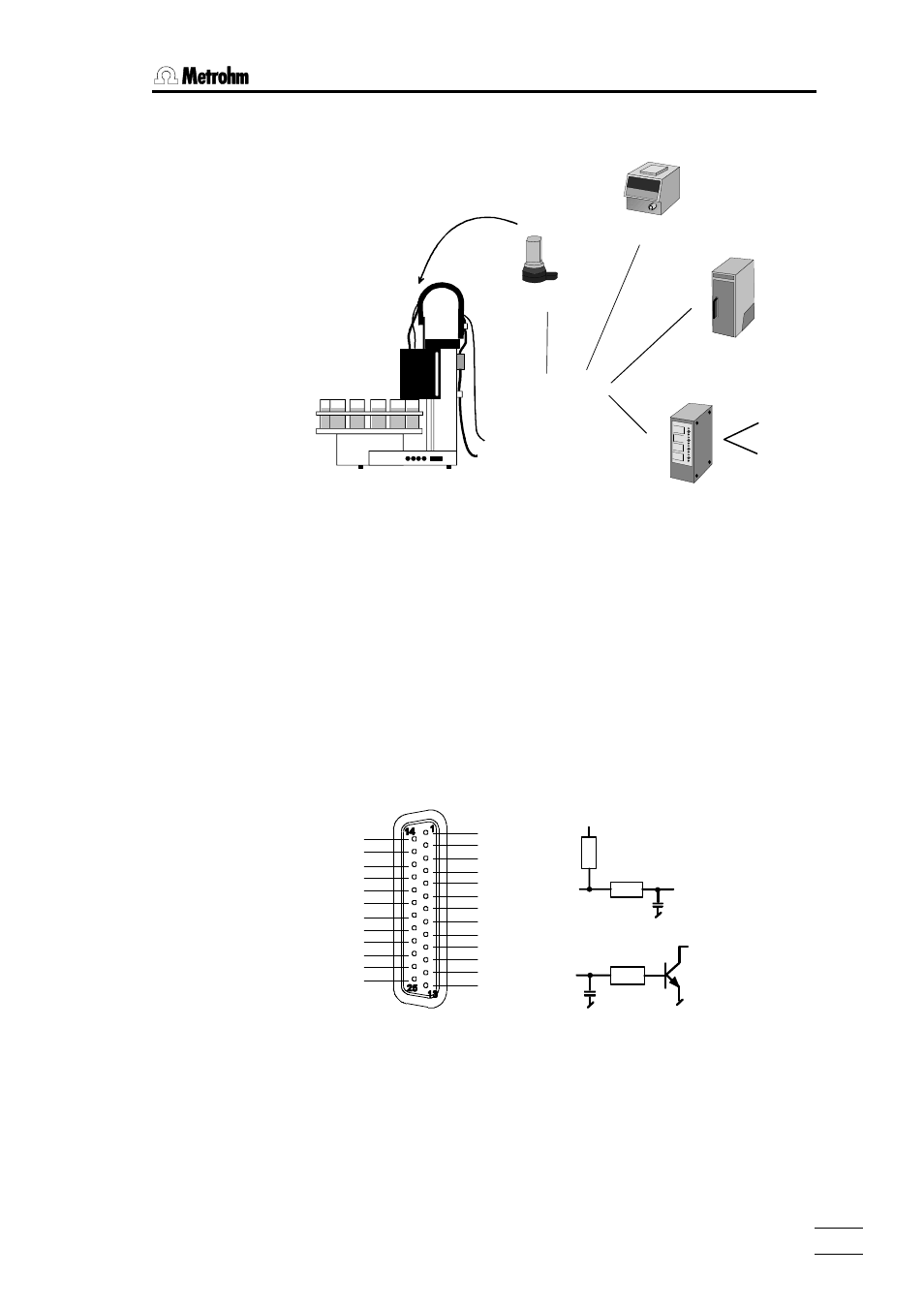

2.4 Remote Connections
Remote
Dosimat
717 Sample Changer
665
725
711 Liquino
759 Swing Head
731 Relay Box
Valves
Pumps,
e.g. 772
Connecting peripheral instruments to the 717 Sample Changer re-
quires Metrohm cables. Otherwise a safe data transmission may
not be guaranteed.
All instruments have to be switched off, before they are con-
nected. Otherwise the instruments could suffer from damage.
14 lines (Output 0–13) are available for the emission of signals.
For receiving signals 8 lines are provided (Input 0–7).
Pin assignment of the Remote socket:
Output 6
Output 7
Output 4
Output 2
Output 0
Output 8
Output 9
Output 10
Input 1
Input 3
Input 5
Input 7
Output 11
0 Vo lt
+5 Volt
Output 5
Output 3
Output 1
Output 12
Output 13
Input 0
Input 2
Input 4
Input 6
0 Vo lt
The +5 V supply line may by charged with 20 mA maximally.
Inputs
Outputs
+5V
active = low
inactive = high
active = low
inactive = high
