INSTALLATION
6
seCtiOn 2:
Parts Description
This section describes each of the parts in the Parts List, each description provides a physi-
cal set of attributes and a purpose for each part.
the watChDOg heaD unit:
The Head Unit is the interface through which all operating functions take place including:
Monitoring functions, the Driving Coach feature, and performance tests.

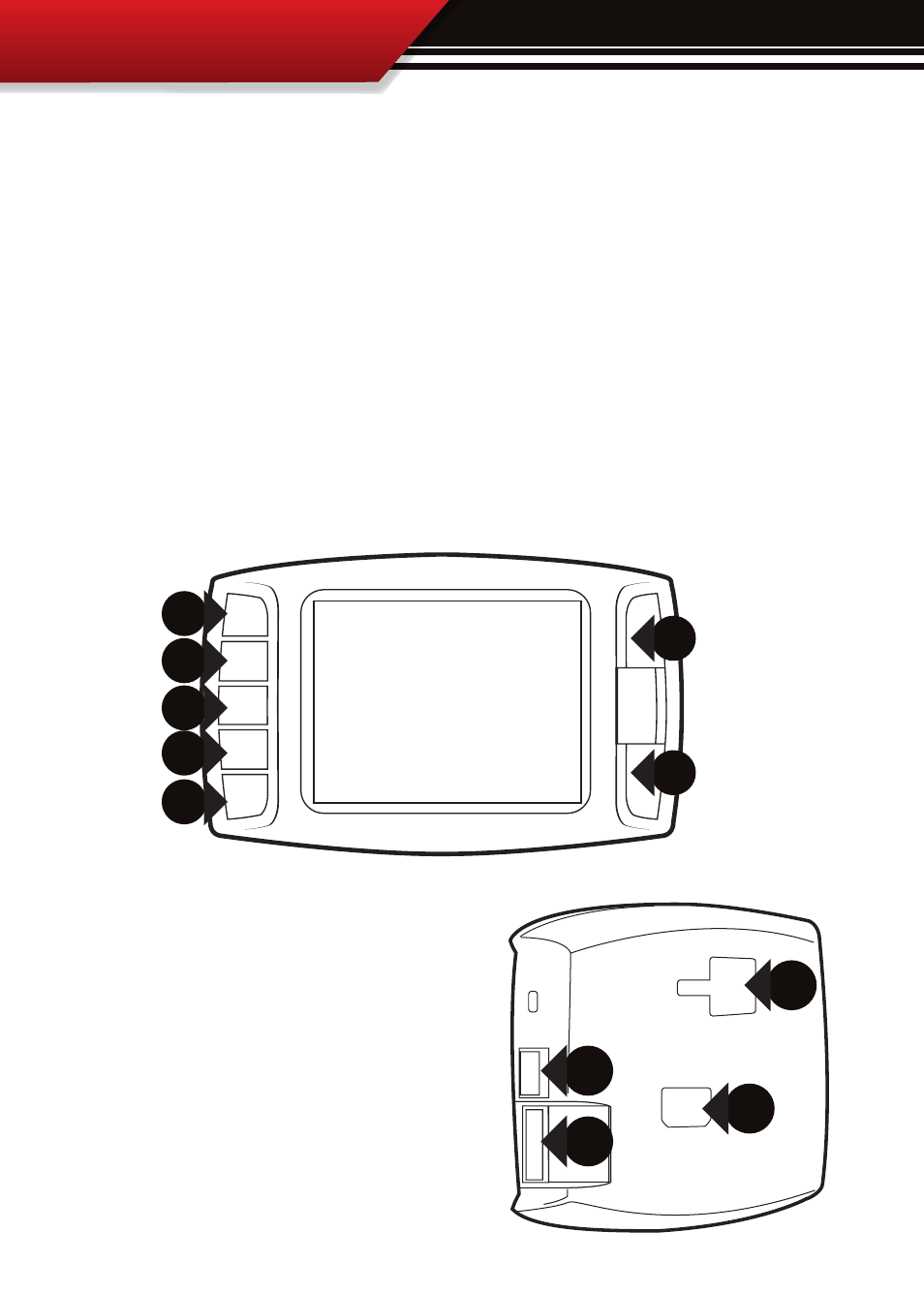

Watchdog Front Side: The Watchdog has seven capacitive touch buttons. Capacitive touch buttons are a
button style that is sensitive to the presence of your finger. Capacitive buttons do not need to be pushed,
only touched to activate. The Watchdog interface features a 2.4” LCD screen.
1
2
4
3
Watchdog Parts (Back side):
1. T-slot Mount Socket, this will work with a large range of
off the shelve mounting options.
2. Main harness port, electronic port for the main harness
with HDMI style plugs ends.
3. Micro SD Card Slot
4. Mini USB port
2.4”
LCD
