brite-View Air Sync3D BVW-200 User Manual User Manual

Page 14

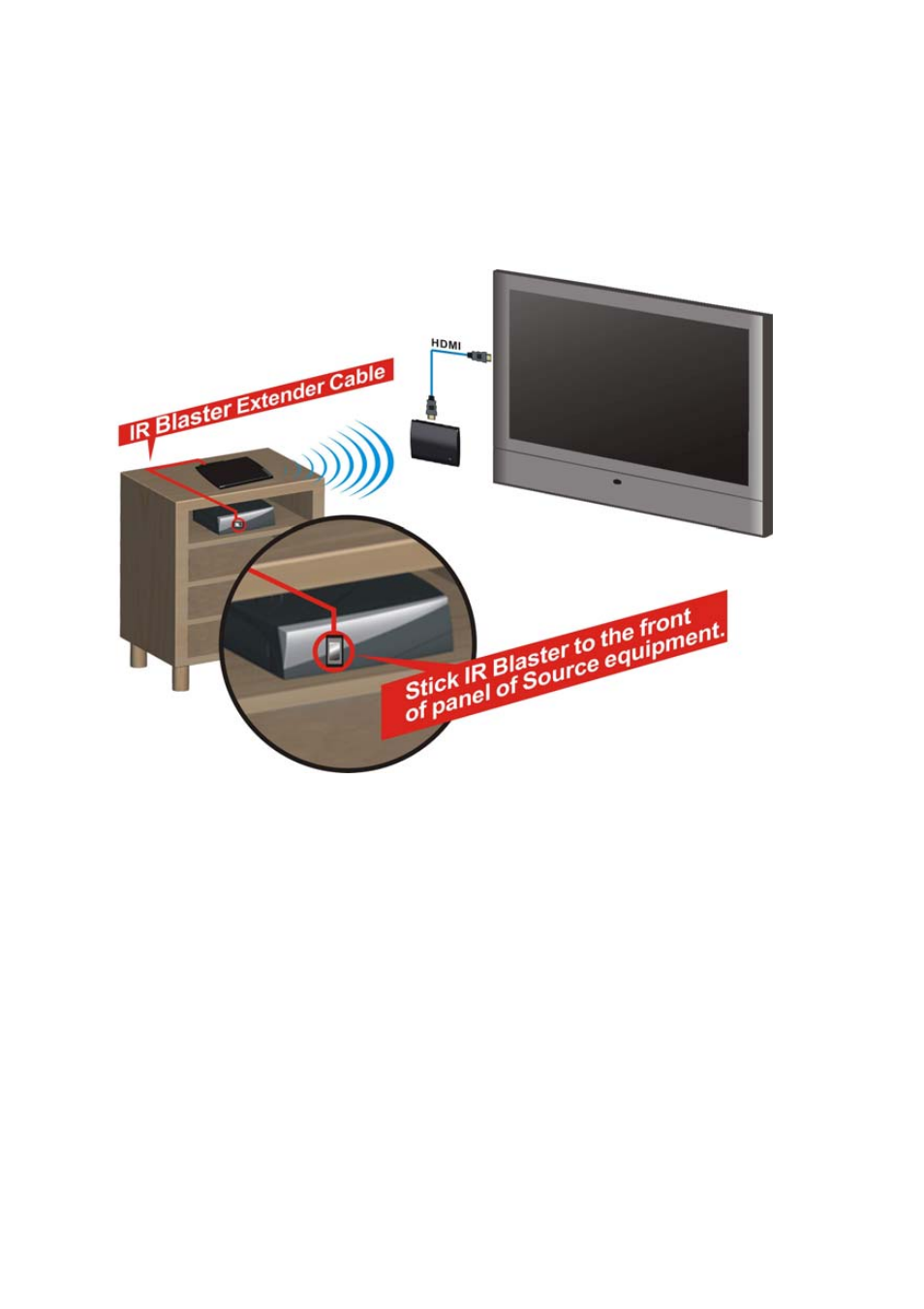

Step3: Setup the IR blaster extender cable

If necessary, connect the Infrared (IR) blaster Extender cable. Users can point hand‐held remote
control of your High Definition AV equipment at the receiver or the HDTV set to operate the
source devices, not exceeding the distance of 66 feet at Line‐of‐sight.

(1)

Plug the IR blaster cable into the IR OUT jack of the transmitter.

(2)

Please try to manually move the IR blaster in the front of the front panel of your HD device
and then press the key of remote control to search a good position of IR response. Paste the
IR blaster head near the front of IR sensor of your High‐Definition audio/video devices.

(3)

When the IR blaster cable is connected, it relays infrared command from your remote control
to the device. Users can control their AV devices by pointing their remote control to the
receiver instead of to their AV equipment.

Note:
(1) The IR sensor supports 36KHz ~ 56KHz (NEC, RC5, RC6) remote’s signal protocol. Therefore, it is

possible that some devices may not be supported.

(2) The IR blaster supports 47KHz remote’ signal protocol.
