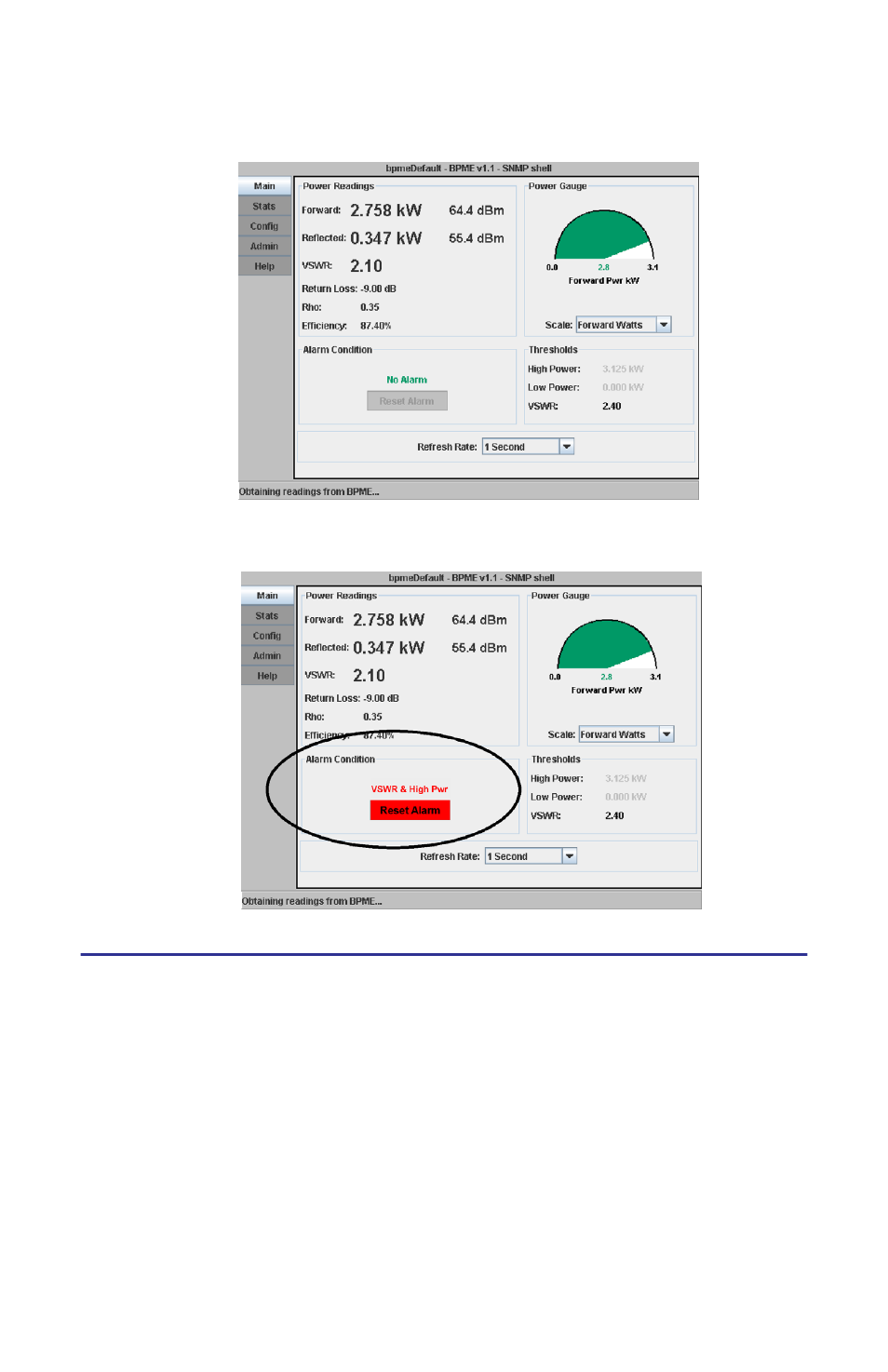

Figure 6 ACMI WebTool Software, Main Screen
Figure 7 Alarm Active Message
Stats Screen
The Stats screen (Figure 12 on page 20) can chart and display historical data
stored in the ACMI memory. You can chart forward and reflected power read-
ings and alarm conditions (low power, high power, and VSWR alarm). You can
display the data in either a line graph or a bar chart.
The ACMI keeps data for a 365 day period. You select the starting day (in the
Begin field) and the number of days to view. Day 0 is today, day 1 is yesterday,
and so on to day 364. Click the Add >> button to add the days to the list to view.
When you click the Chart It button, the WebTool retrieves the data and gener-
ates a new chart. Click the Clear button to clear your day selection.
The Stats View is not password protected. It is used to retrieve and plot histori-
cal data stored on the BPME. You can use the controls provided on this view to
generate charts and save the data for your records.
