Theory of operation, Coupling circuit, Figure 1 element schematic diagram – Bird Technologies 4412A User Manual

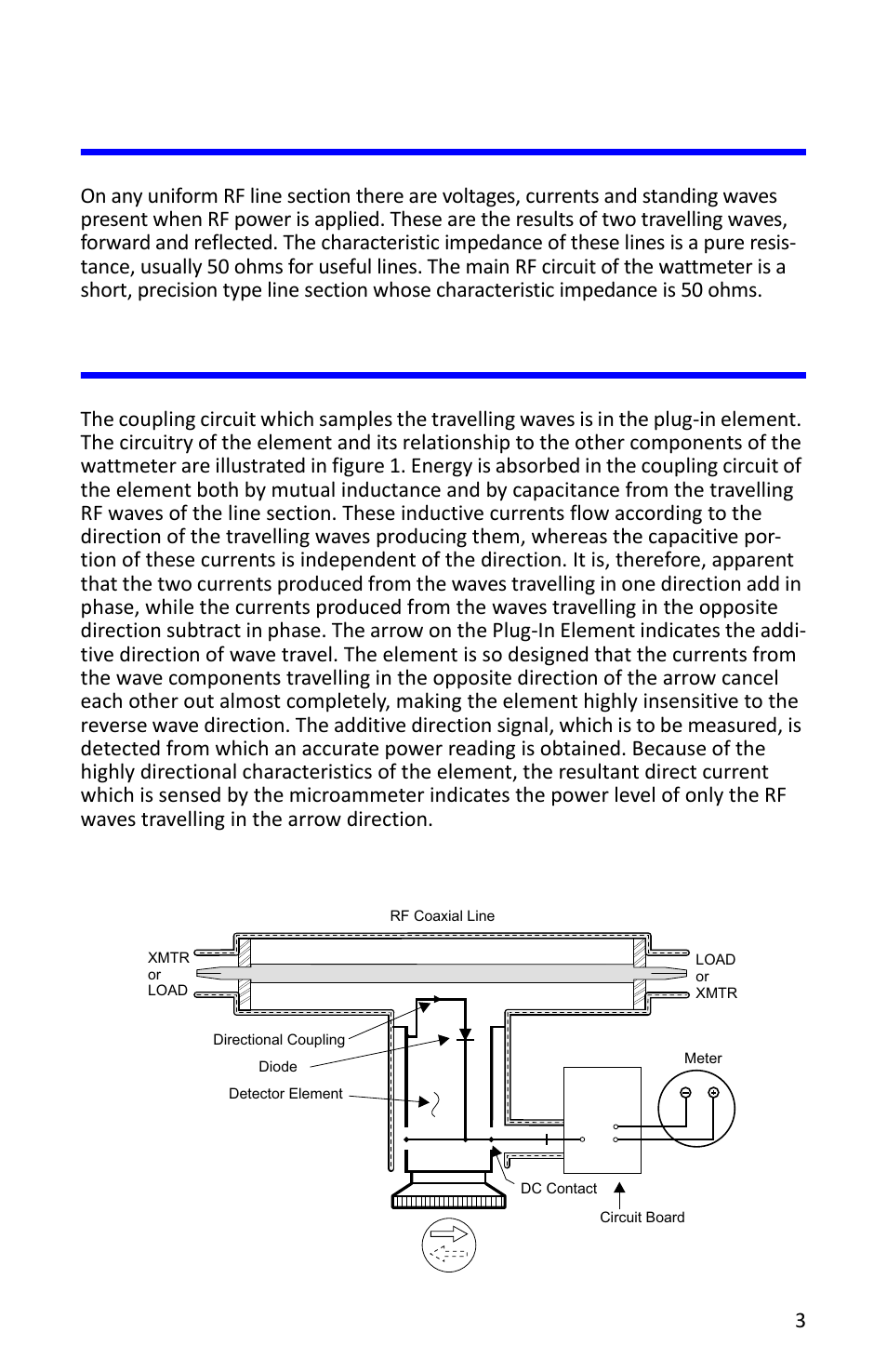

Page 13: Theory of operation coupling circuit
