7

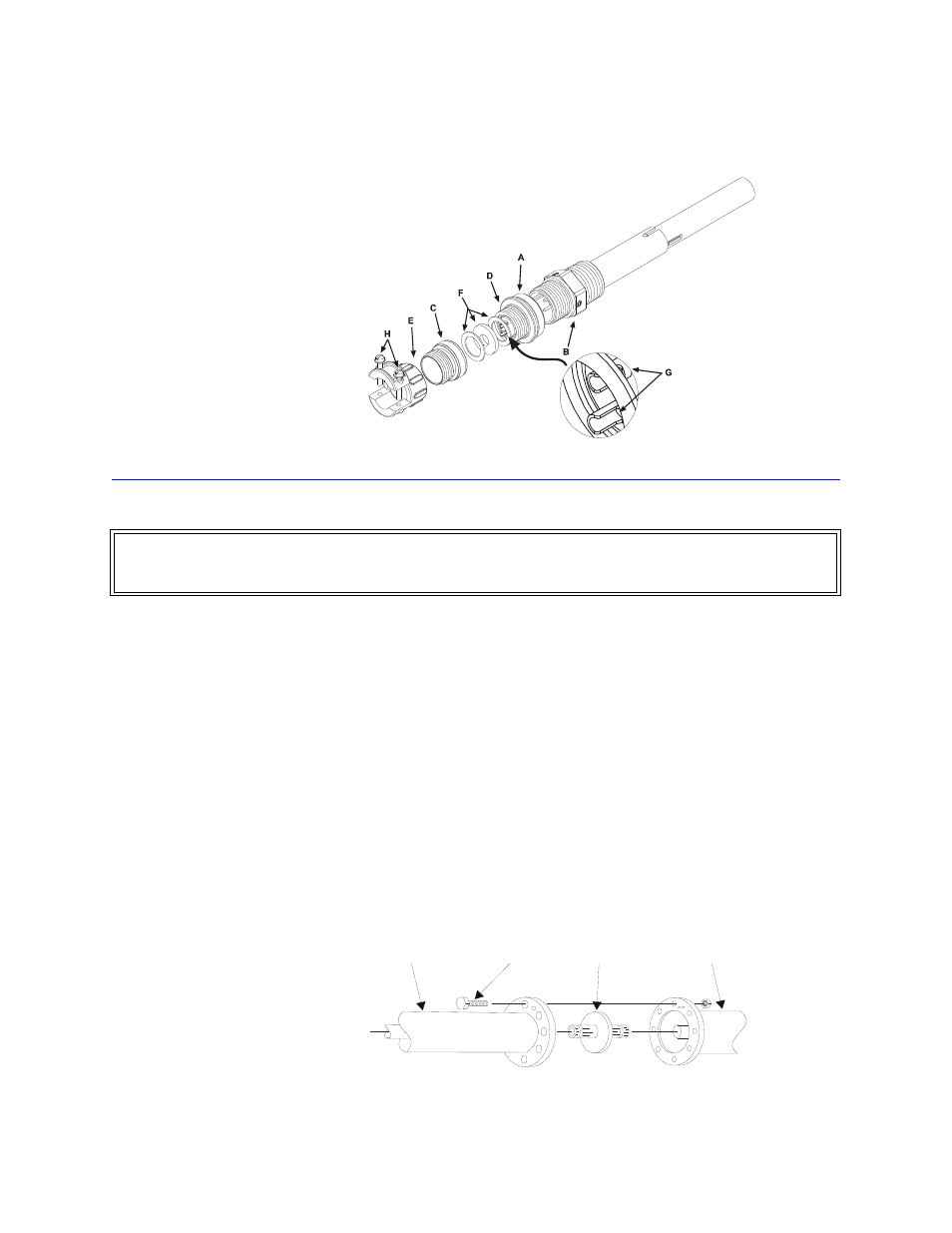

Figure 4 Thermoswitch Assembly
Connecting RF Power
After installing the load, the RF transmission line can be attached using standard coaxial line coupling kits.
“QC” Connector Coupling
•
Use 50 ohm coaxial cable such as RG-218/U or -220/U (-17A or -19A), appropri-
ate for the frequency and power level of operation.
•
Use a cable connector which will mate with the one on the load.
Swivel Flanged Coupling
Note: To couple the swivel flange with a flanged RF transmission line, use an appropriate coupling kit.
1. Insert the center bullet.
2. Push it in until it is fully seated.
3. Connect the coaxial input in a straight line.
4. Push carefully on the center conductor to close.
Note: The swivel flange on the load makes connection independent of the ori-
entation of the fixed flange on the coaxial input outer conductor.
5. Insert the bolt sets and tighten evenly all around to transmission line manufacturer’s
recommended torque.
6. Use all of the bolts.
Figure 5 Swivel Flanged Coupling
WARNING
Never attempt to connect or disconnect RF equipment from the transmission line while RF power is being
applied. Leaking RF energy is a potential health hazard.
BOLT BULLET LOAD RF COAXIAL LINE
