18

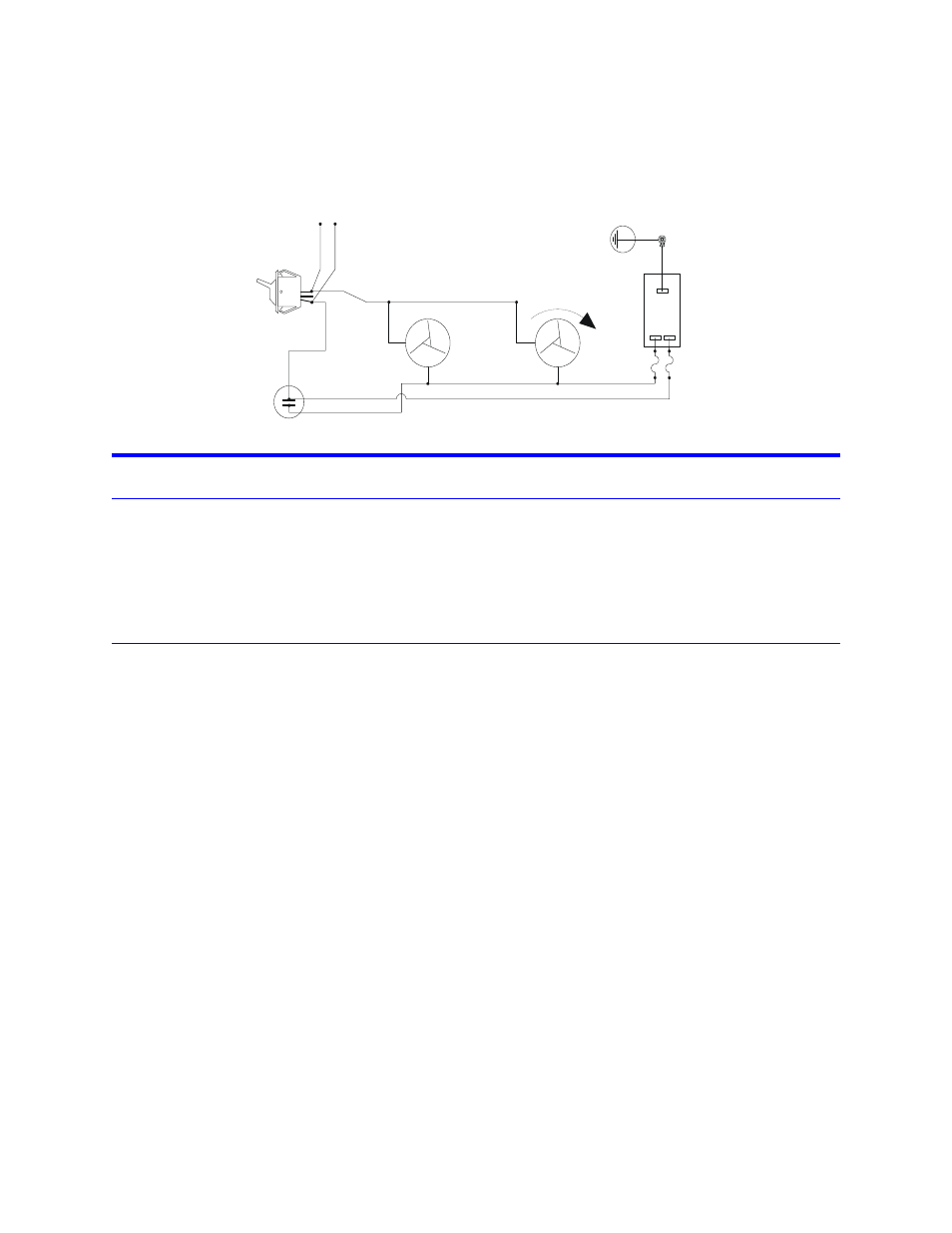

Figure 8 Schematic Diagram
Storage and Shipment
Storing the Load Resistor
•
Cover Bird 8890 Loads before storing to keep out dust and dirt.
•
It is not necessary to install the shipping plug.
•
Store in a dry, dust-free environment where the ambient temperature will remain between –40 and +45 °C
(–40 to +113 °F).
Shipping the Load Resistor
1. Remove the vent plug.
2. Install the shipping plug.
3. Wrap the vent plug with padding and tape it to the side of the load for protection.
Note: With the shipping plug installed, it is not necessary to empty out the
coolant.
4. Wrap the connector in padding.
5. Pack and brace the load in a sturdy wooden crate for shipment.
N L
L1
L2
L1
L2
ROTATION
FANS
GRN/YEL
AC
RECEPTACLE
WHT/YEL
TO CONTROL
THERMOSWITCH
BLACK RED
TOGGLE
SWITCH
WHT/BLK
WHT/BLK
INDICATOR
LIGHT
WHT/BLK
