Volvo V70R Intercooler System
/ Installation Manual
1
Bell Intercoolers, inc. © 2009 All rights reserved. S601-V70R-IMv7

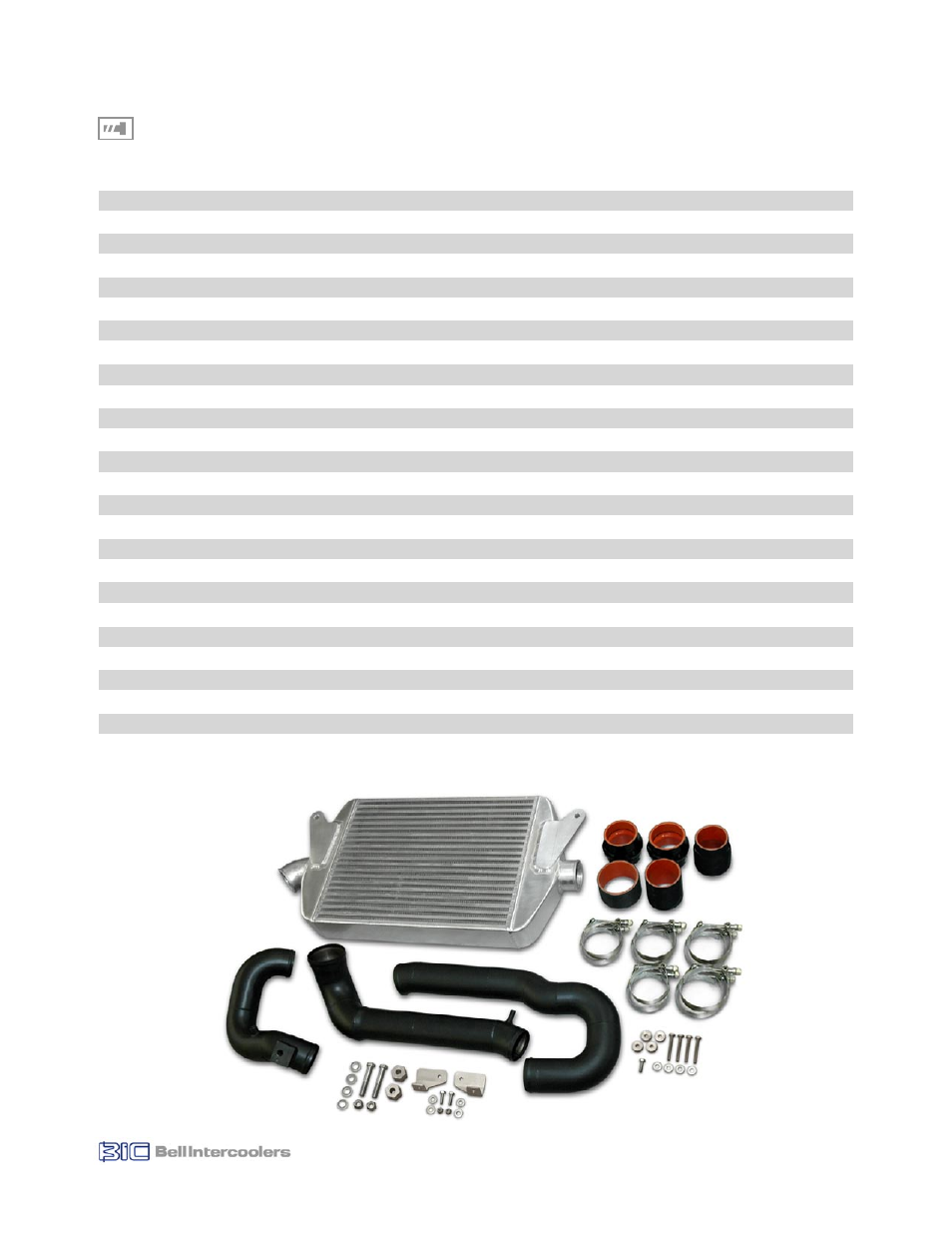

Parts List
Part Name
Packet
Qty
Part Number
Intercooler Assembly
Intercooler
1
A3001361806070(B)
Intercooler Inlet Tube
Components
1
PLV6070-01-B
Intercooler Outlet Tube
Components
1
PLV6070-02-B
Throttle Inlet Tube
Components
1
PLV6070-03-B
Silicone Hose
Straight (2.5” ID x 3” L)
Hose
1
P00503-0300BLAC
Bellows/Hump (2.5” ID x 3” L)
Hose
2
P00553-0300BLAC
Straight (3.0” ID x 2.5” L)
Hose
1
P00505-0250BLAC
Reducer (2.0” or 2.25” dia. to 2.5” dia.)
Hose
1
P00562-250200B or P00561-250225B
Intercooler Mounting Spacer
Parts - Bag 1
2
PLV6070-07
M10-1.25 x 60mm Bolt - Hex Head
Parts - Bag 1
2
P00700-M10-60-Z
M10 Washer
Parts - Bag 1
4
P00740-M10-C
M10-1.25 Hex Locknut (Mechanical)
Parts - Bag 1
2
P00710-M10-125-Z
Horn Bracket - Left
Parts - Bag 2
1
PLV6070-05
Horn Bracket - Right
Parts - Bag 2
1
PLV6070-06
M6-1.0 x 20mm Bolt - Hex Head
Parts - Bag 2
2
P00700-M6-20-Z
M6-1.0 Hex Locknut (Mechanical)
Parts - Bag 2
2
P00710-M6-1.0-Z
M6 Washer
Parts - Bag 2
4
P00740-M6-C
M6-1.0 x 20mm Bolt - Hex Head (Sensor)
Parts - Bag 2
1
P00700-M6-20-Z
Radiator/AC Condenser Spacer
Parts - Bag 3
4
PLV6070-08
M6-1.0 x 40mm Bolt - Hex Head
Parts - Bag 3
4
P00700-M6-40-Z
M6 Washer
Parts - Bag 3
4
P00740-M6-C
Hose Clamps - T-Bolt Style
2.0” or 2.25”
Hose Clamps
1
P00600-002 or P00607-002
2.5”
Hose Clamps
7
P00603-002
3.0”
Hose Clamps
2
P00609-002
