Section D: SmarTire Trailer-Link ™ TPMS Display Options
5.0 Trailer Information Display Options
5.1 Tractor SmarTire Dash Display
When the SmarTire Trailer-Link ™ TPMS system is combined with a tractor
equipped with the SmarTire ® TPMS system, the trailer tires will be added in
the form of ‘T’ axles following the last tractor axle on the 2-inch SmarTire dash
display. The dash gauge will reboot shortly after the wireless connection is
established with the SmarTire Trailer-Link system and the new trailer axle
positions will be displayed for the tractor. To become more familiar with the
functions of the SmarTire dash display, refer to Section C of the SmarTire
Operator’s Manual BW2799 before continuing on in this section.
CAUTION: The tractor dash display cannot be used to make any
SmarTire Trailer-Link system parameter adjustments or to change the
sensor configuration programmed into the SmarTire Trailer-Link ECU!
These parameters are stored directly in the SmarTire Trailer-Link ECU
and must be configured by connecting to the SmarTire Trailer-Link ECU
as described in Section 4.1.
Ensure the SmarTire Trailer-Link Enable function is set in the SmarTire
tow-vehicle-mounted ECU part number 200.0216.
For tractors equipped with the part number 200.0184 ECU to be able
to communicate with the SmarTire Trailer-Link ECU, the ECU firmware
MUST BE updated to new firmware. For instructions on performing
this update, please contact your Bendix account representative or call
1-800-AIR-BRAKE (1-800-247-2725).

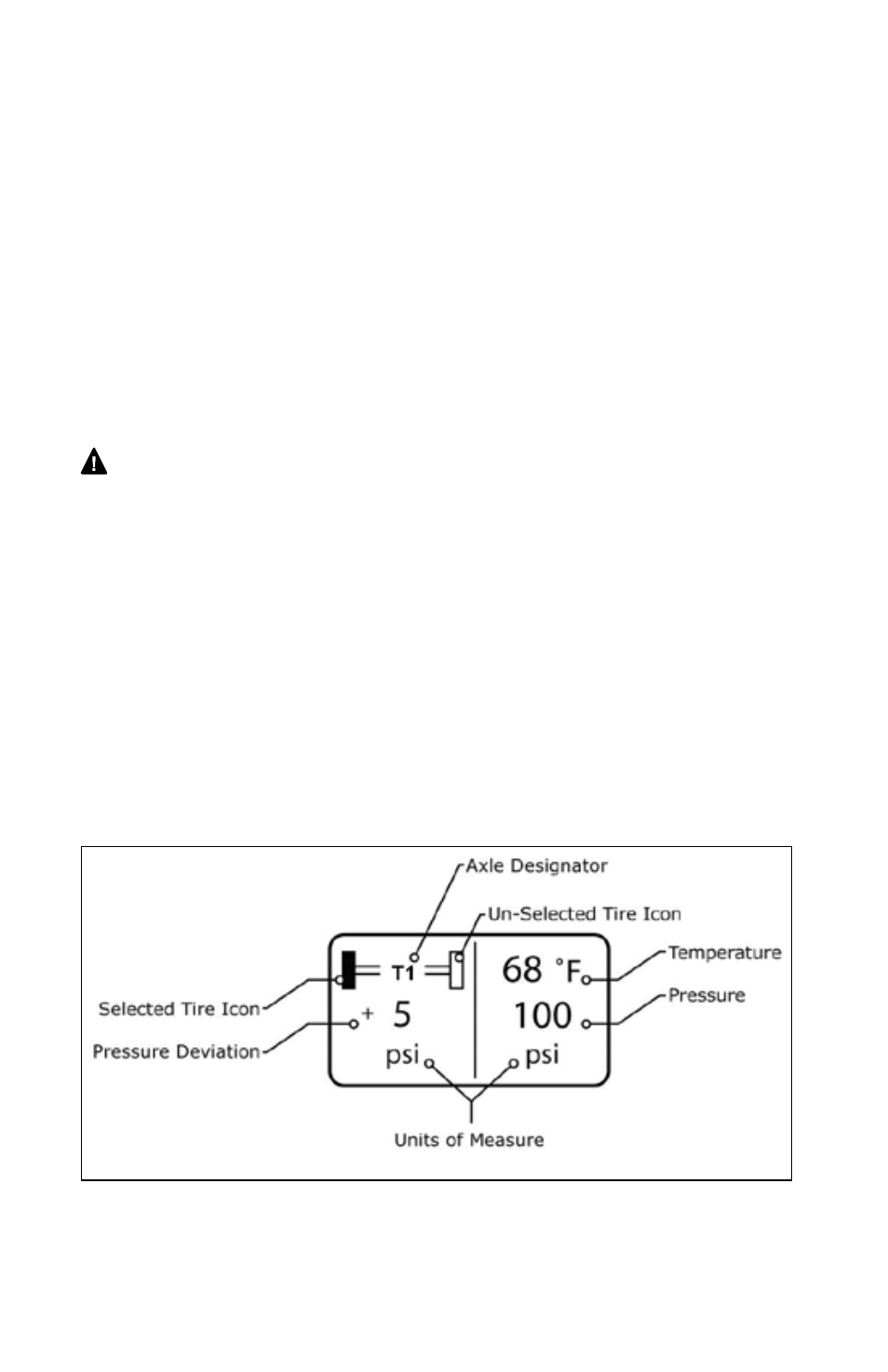

Figure 39
