8. Once the tool has learned the tire pressure sensor ID for the given
position, it briefly displays the received ID code and automatically
switches to the next tire position.

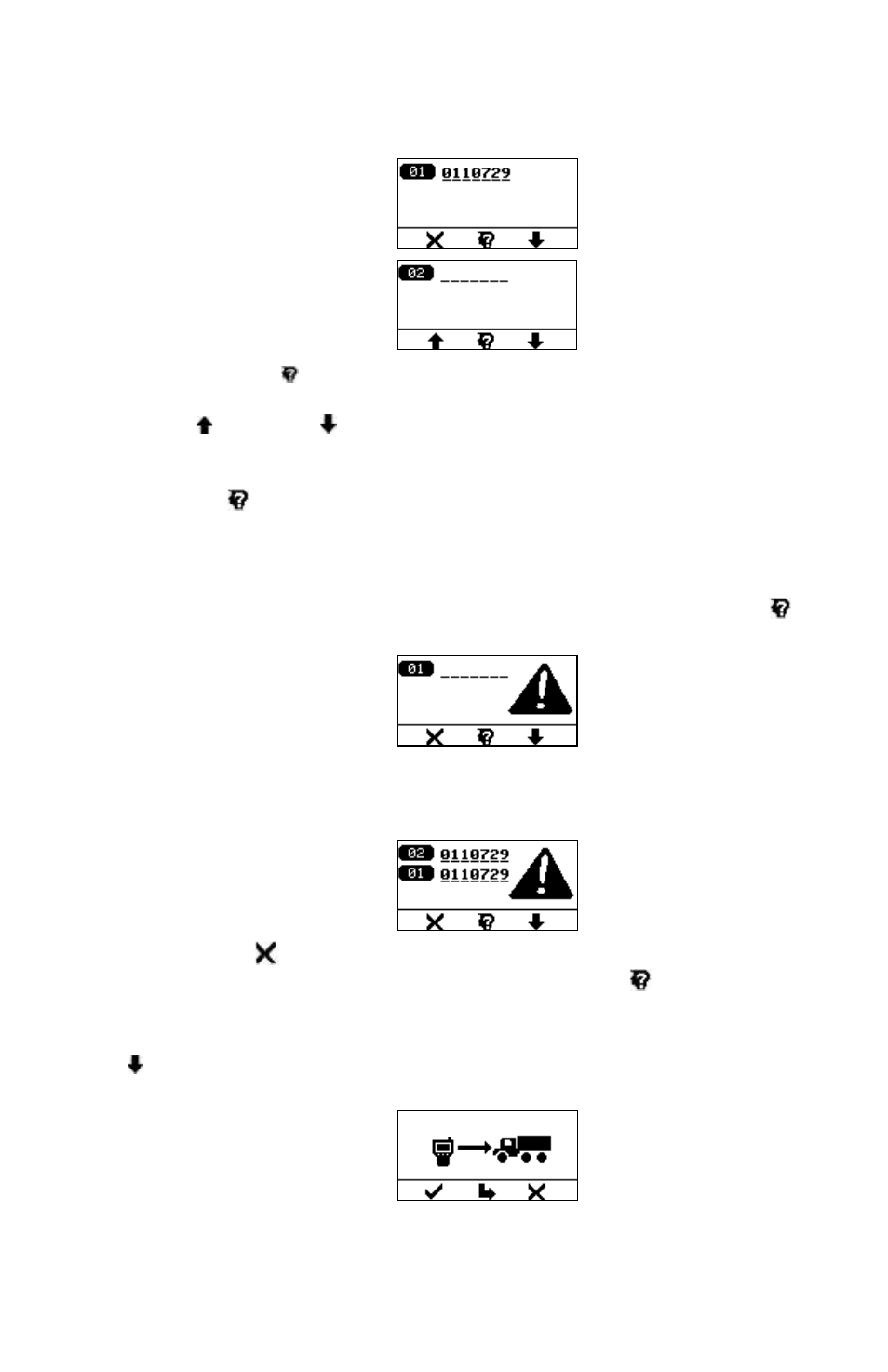

Figure 30
Figure 31
Press the Learn button to initiate the next tire sensor. Repeat until all
the tires have been learned into the tool. At this point you may also press
the Up and Down arrow buttons to select and view any previously
learned wheel positions. If needed, you may also reprogram a tire
position by simply selecting a previously learned position and pressing
the Learn button. Any previously learned sensor ID codes will be
replaced by the new ID code for that position.
9. If a sensor failed to activate, the following screen will be displayed (Figure
32). If this occurs, ensure that the tool is placed at the correct position
around the tire and retry the sensor activation by pressing the Learn
button.
Figure 32
10. If, while learning a particular wheel position, a tire pressure sensor ID
code is received that is already used in a different position, the following
“Duplicate ID” error screen is displayed.
Figure 33
Pressing the button will delete the received ID and the screen will
go to the previously learned position. Press the Learn button to learn
the tire sensor into the position again.
11. After the last tire position has been learned into the tool, press the Down
arrow button. The tool is now ready to transmit this information to the
SmarTire Trailer-Link ™ receiver.
Figure 34
12. Using the SmarTire Trailer-Link programming cable (Part Number
K092501), connect the tool to the SmarTire Trailer-Link harness.
