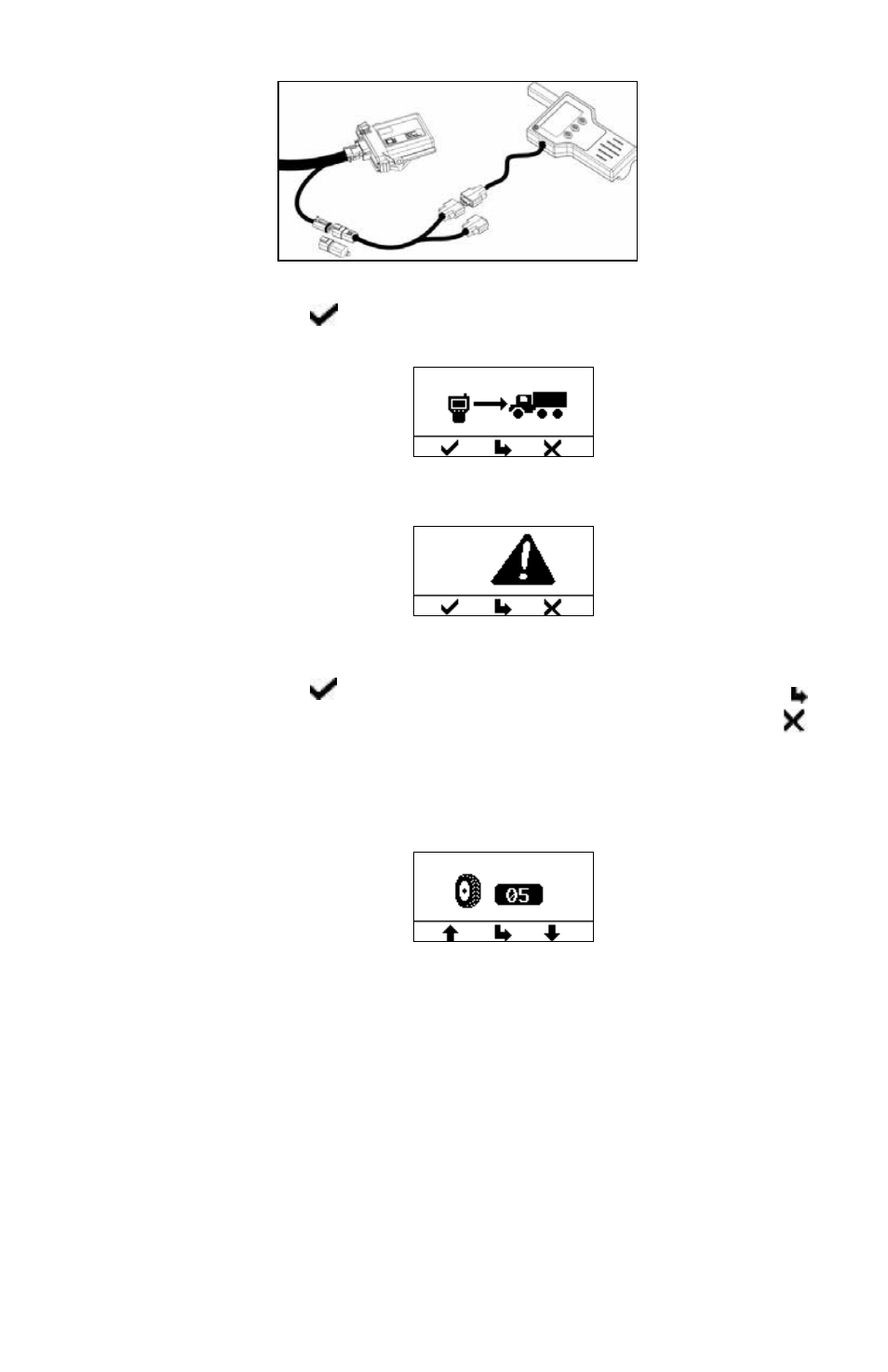

Figure 35
13. Press the Check button to begin downloading the new tire sensor
IDs into the SmarTire Trailer-Link ™ receiver.
Figure 36
14. In the case of a programming error, the following screen is shown:
Figure 37
15. If this occurs, ensure the SmarTire Trailer-Link ™ ECU is powered and the
connection from the tool to the SmarTire Trailer-Link harness is correct.
Press the Check button to retry the operation, press the Return
button to return to the learn procedure screen in step 5, or press the
button to abort the learn procedure and return to the main menu.
16. If the tool screen reverts back to the screen for entering the number of
tires, then the number of tires entered does not match the number of
tires currently programmed into the SmarTire Trailer-Link receiver.
Figure 38
Make sure the number of tires entered on the tool matches the number of
tires being monitored by the SmarTire Trailer-Link receiver and then return
to Step 4 and repeat the Walk-Around Learn procedure.
