3.4.3 Re-Mounting Commercial Tires
Using a Vertical Tire Machine
1. Place the rim on the machine so that the rim flange clamp is at the
12 o’clock position, the sensor is at the 2 o’clock position and the
mounting hook is at the 8 o’clock position.

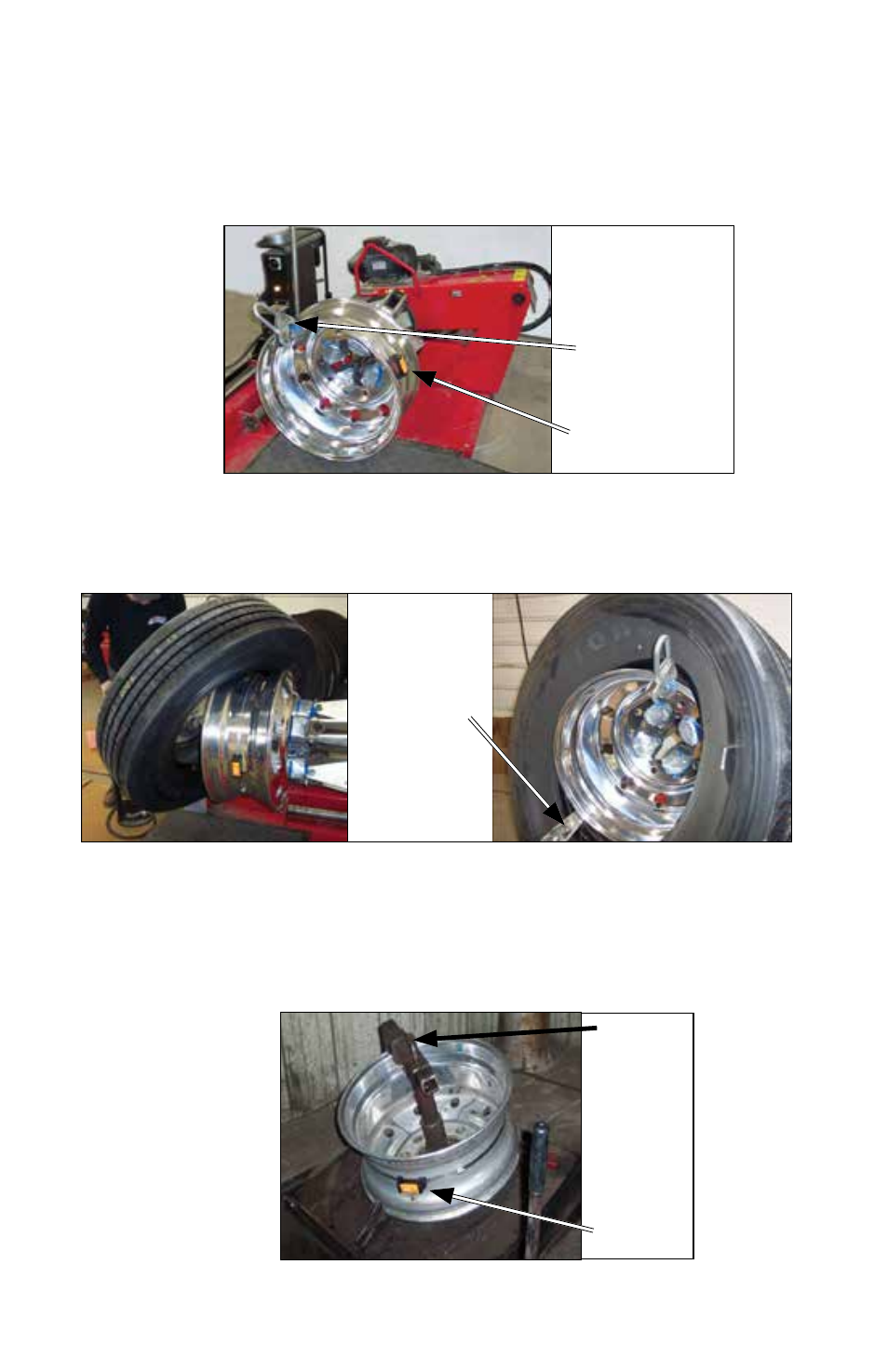

Figure 8
Rim Flange Clamp
Sensor
2. Advance the wheel clockwise to pass both beads over the rim flange
simultaneously. The tire should mount onto the wheel without contacting
the sensor.
Mounting
Hook
Figure 9
3.4.4 Re-Mounting Commercial Vehicle Tires
Using A Center Post Tire Machine
1. Place the rim on the machine with the mounting shoe at the 9 o’clock
position and the sensor at the 5 o’clock position.
Figure 10
Sensor
Mounting
Shoe
