Appendix B
Driver Interface Unit: Displays & Alerts
B4.0 Impact Alert (IA)
The “Impact Alert”, uses a combination of distance to the vehicle ahead, plus high relative velocity, to decide when
to issue a loud solid tone, as well as a visual indicator to the driver. The red LED bar across the top of the DIU will

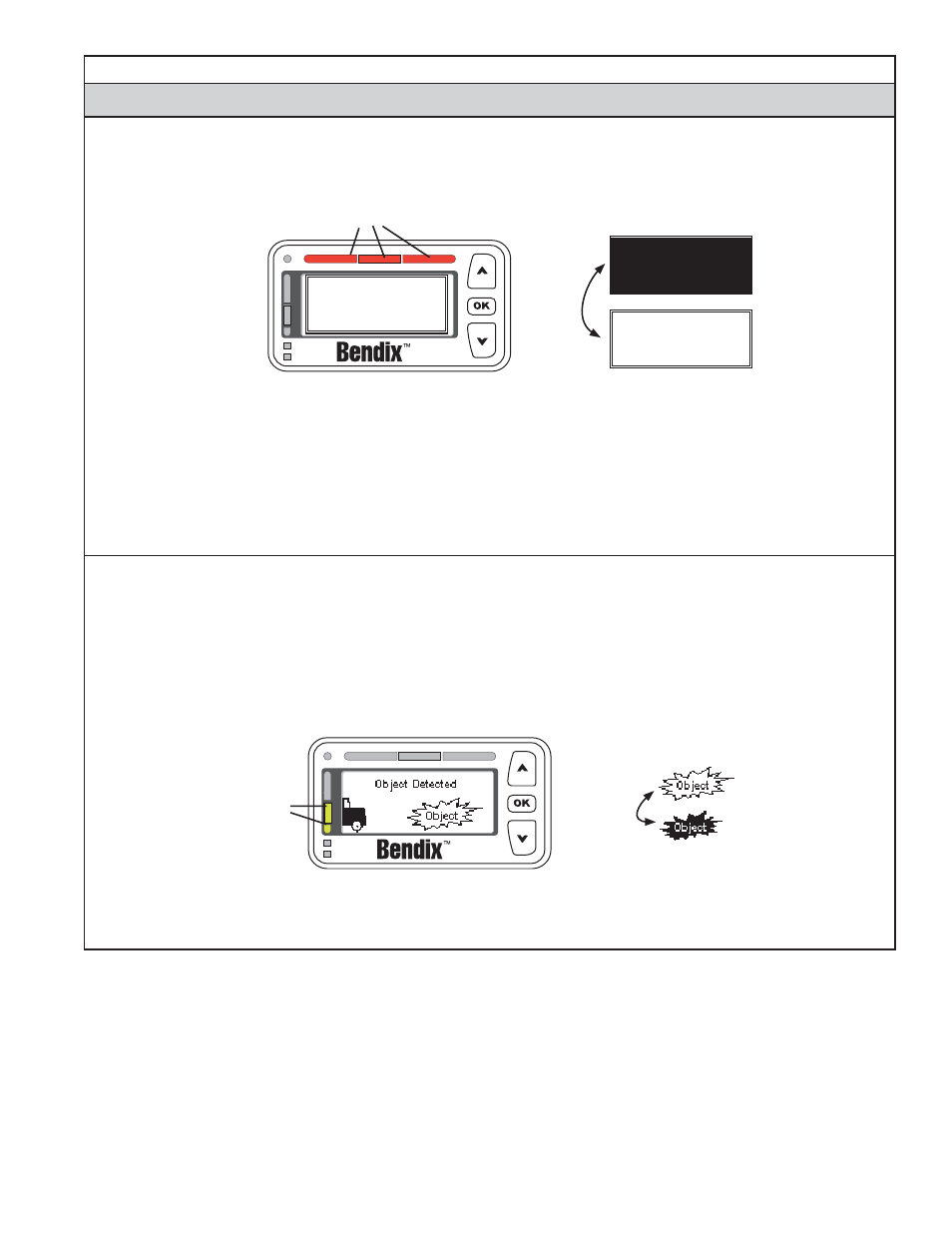

illuminate and “Wingman Adv. Requires DRIVER INTERVENTION” will fl ash using the two screens below:
Screen
fl
ashes
between
these two
displays
ACB REQUIRES
DRIVER INTERVENTION
ACB REQUIRES
DRIVER INTERVENTION
All Red LEDs Illuminated
ACB REQUIRES
DRIVER INTERVENTION
When the Impact Alert activates, the driver must immediately act to potentially avoid, or lessen the severity
of, a collision.
The impact alert can not be confi gured or turned off.
NOTE: At most, the active cruise with braking feature of Bendix ® Wingman ® ACB will apply up to one-third of
the vehicle’s braking capacity. The driver must apply additional braking, when necessary, in order to maintain
a safe distance from the vehicle ahead.
B5.0 Stationary Object Alert (SOA)
Stationary Object Alert (SOA) is an alert given to the driver when the radar detects a sizeable, nonmoving
metallic object in the vehicle's path of travel. To reduce the number of false detections, such as bridges and
overhead signs, an advanced set of fi lters are put in place so the SOA will not warn on every stationary object.
The SOA can be confi gured to be on or off through the display.
If a SOA is issued, the DIU will very briefl y send out an alert identical to a very brief FDA Level 2: continuous
tone and two yellow LEDs, with the display image switching between the two shown below.
“Object” icon
fl
ashes
between
these two
symbols
Two
Yellow
LEDs
Illuminated
Appendix B
Check if 2 or 3
yellow LEDs are
shown????
