Page 31
PAGE 28 TP10583
8.0 BASIC MACHINE SETUP
8
.1: Units of Measurement
Toggles between metric and english units ( mm or inches).
See Quickstart Instructions page 14.
8.2: Language
This selection specifies the Language. Available choices
are ENGLISH, GERMAN, SPANISH and FRENCH. Use the
Setup Preferences Screen to change languages. See
Quickstart Instructions page 22.
8.3: Hardware and SoftwareVersion
This hardware versions are shown on the serial number
plate. This is located on the inside of the front frame between
pan 1 and pan 2.
The software loaded into each programmable component
is indicated by a label stuck onto each component: PLC, HMI,
and VFD.
9.0 DIAGNOSTICS

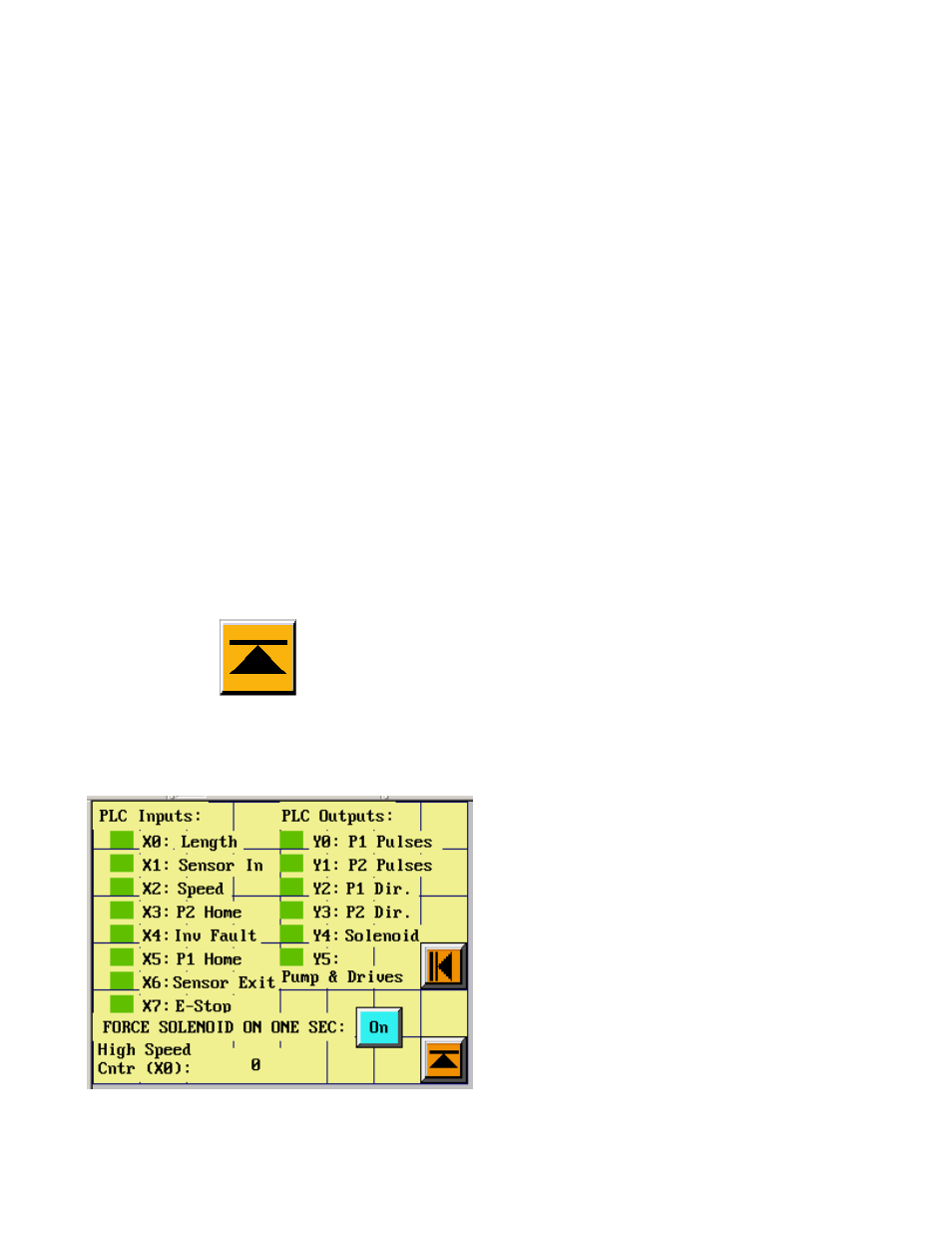

The inputs and output of the PLC can be monitored using the
HMI. Access the main screen using one of the orange
buttons with the upward arrow.
From the main screen select the Troubleshooting screen.
Green indicators show "on" states for all inputs X0-X7 and
outputs Y0-Y5. The encoder counts can also be monitored
here. There is also a button to force the solenoid "on."
