The recommended network setting to use is Manual configuration (Static IP address). You will
need to provide the QBox with a valid IP address on your network. Use the tab key to highlight
Manual Configuration. Press space bar to select. Press tab key to reach the IP Address field.
Enter the QBox IP address here. Use backspace key to remove any existing value. Use period
key (full stop) to move to the next box. Note: Y
ou may need to configure the PC’s network
configuration as well.
Press tab to reach the Subnet Mask field. Enter the correct subnet mask.
Press tab to reach the Default Gateway. Enter the gateway IP address (optional).

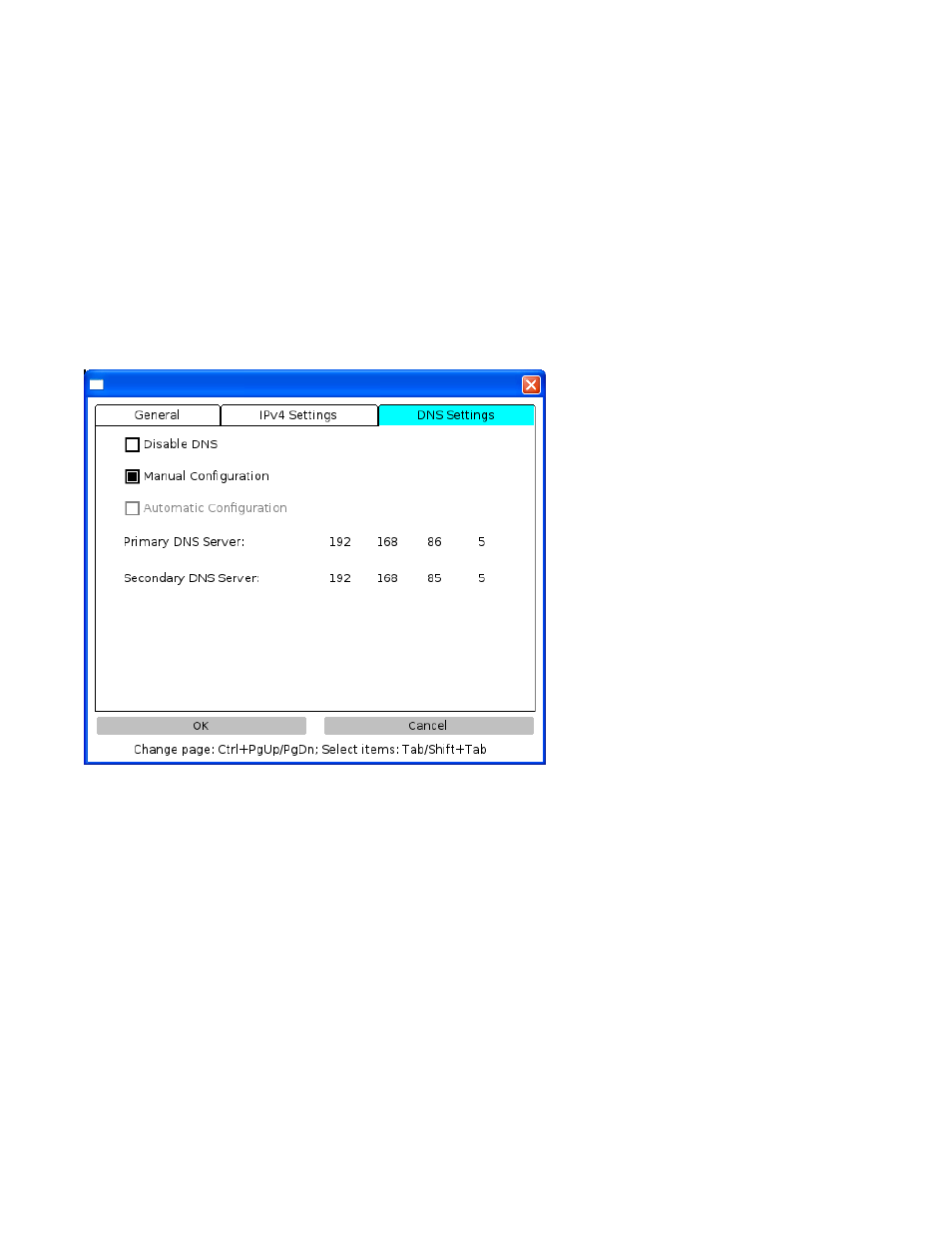

If entering DNS information (optional), press tab to reach the IPv4 Settings tab. Press right
arrow to display the DNS Settings tab.
When all network settings are done, press tab to reach the OK button. Press ENTER key. The
network interface will restart. Press F10 to exit the QBox configuration and return to prompt
mode. Once in prompt mode, press F5 to get the QBox information screen to display on the
video output. You will see the QBox IP address listed.
If no IP address is listed, the QBox is not detecting a connection to the network or to the PC.
Confirm the network cable is securely attached at both ends. Confirm LED indicators are
illuminated on the Ethernet port of the QBox.
Confirm you can ping the QBox from the PC by using the QBox IP address. The PC must be
able to ping the QBOX successfully in order for the software to work with the QBox.
