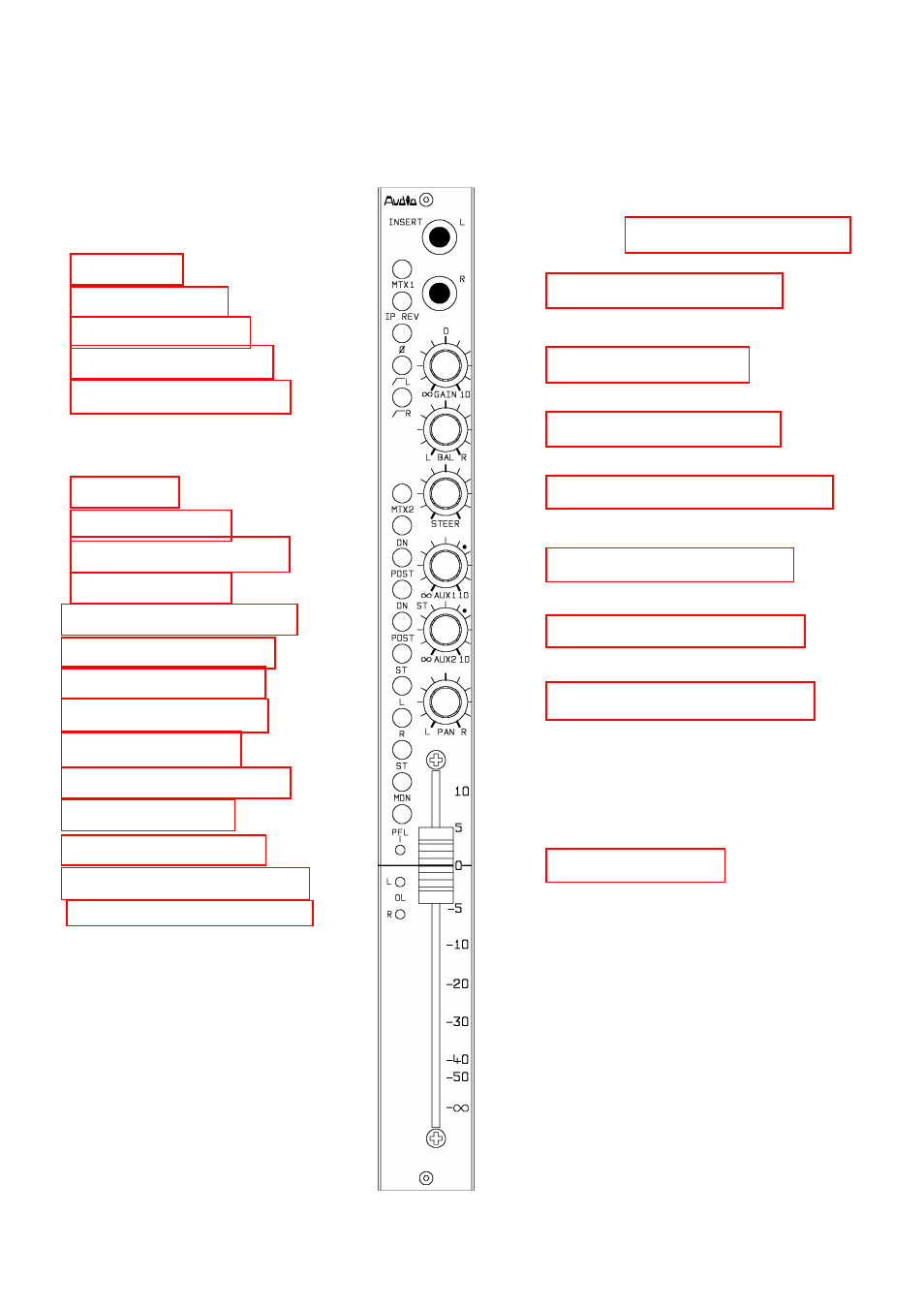

STEREO LINE MODULE
(20) Left-path insert jack
(21) Right-path insert jack
(22) Input-gain control
(23) Input-balance control
(24) Channel-output steer control
(25) Auxiliary 1 level control
( 26) Auxiliary 2 level control
(27) Panoramic potentiometer
(28) Channel fader
(1) Matrix 1
(2) Input reverse
(3) Phase change
(4) High-pass filter, left
(5) High-pass filter, right
(6) Matrix 2
(8) Aux 1 source selector
(9) Auxiliary 2 ON
( 10) Aux 2 source selector
ssselectorselectror
(11) Auxiliary stereo link
(12) Left-path selector
(13) Right-path selector
(14) Stereo override
(15) Routeing to monitor 1
(16) Pre-fade listen
(17) PFL indicator LED
(18) Left-path overload LED
(19) Right-path overload LED
(7) Auxiliary 1 ON
