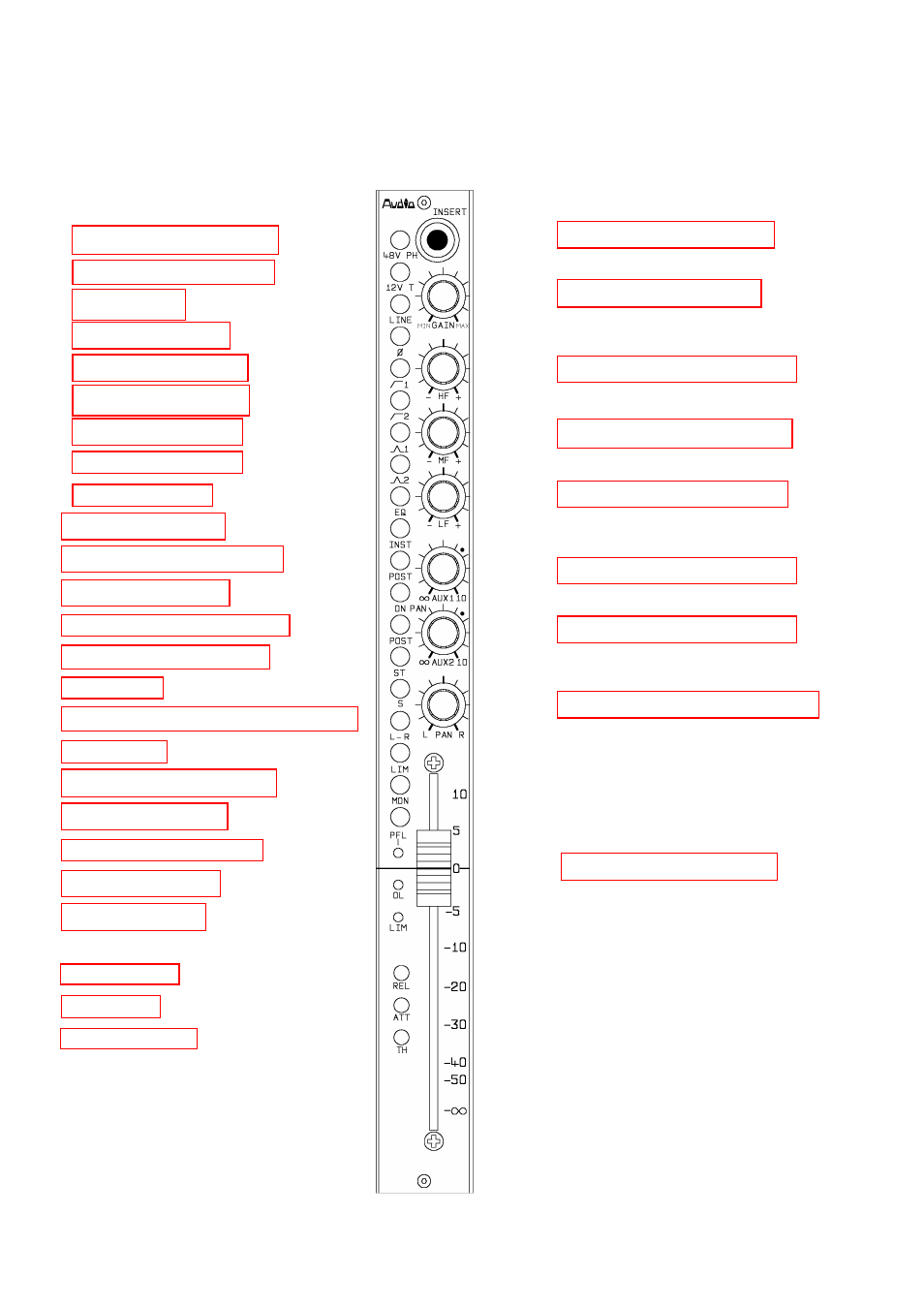

MICROPHONE/LINE MODULE
(1) 48V phantom power
(2) 12V tonader power
(3) Line input
(4) Phase change
(5) High-pass filter 1
(6) High-pass filter 2
(7) Mid-frequency 1
(8) Mid-frequency 2
(9) EQ selector
(10) Channel insert
(11) Aux 1 source selector
(12) Auxiliaries ON
(13) Aux 2 source selector
(14) Auxiliary stereo link
(15) Matrix
(16) Routeing to L-R output (mute)
(17) Limiter
(18) Routeing to monitor
1
(19) Pre-fade listen
(20) PFL indicator LED
(21) Overload LED
(26) Channel insert jack
(27) Input-gain control
(28) High-frequency control
(29) Mid-frequency control
(30) Low-frequency control
(31) Auxiliary 1 level control
(32) Auxiliary 2 level control
(33) Panoramic potentiometer
(34) Channel fader
(22) Limiter LED
(23) Release
(24) Attack
( 25) Threshold
