EQUALISATION CURVES

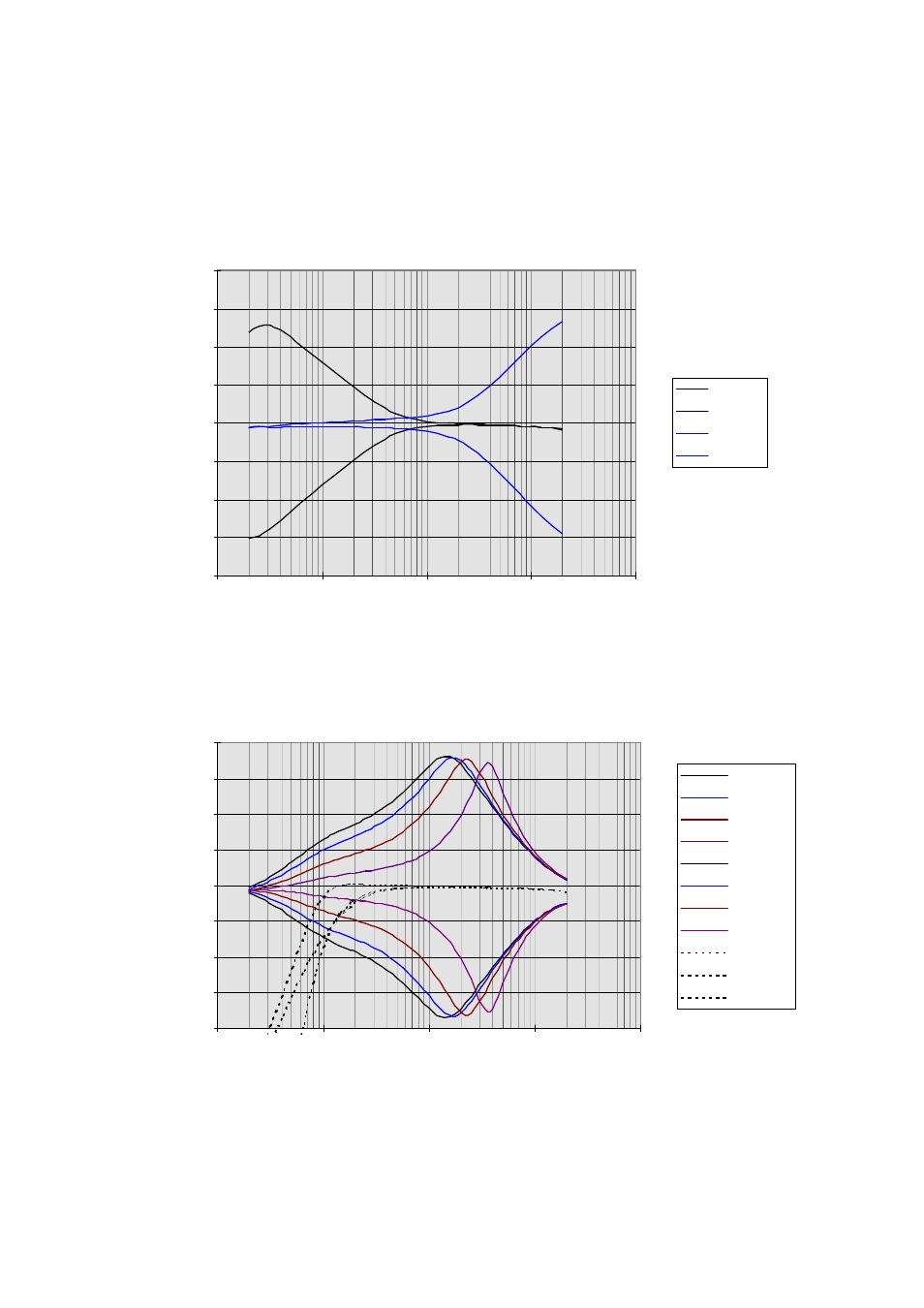

AD149 HF and LF EQ Plot
-20
-15
-10
-5
0
5
10
15
20
10 100 1000 10000 100000
Frequency
dB
LF Boost
LF Cut
HF Cut
HF Boost
AD149 MF and HPF EQ Plot
-20
-15
-10
-5
0
5
10
15
20
10 100 1000 10000 100000
Frequency
dB
MF1 Boost
MF2 Boost
MF3 Boost
MF4 Boost
MF1 Cut
MF2 Cut
MF3 Cut
MF4 Cut
HPF2
HPF1
HPF1&2
