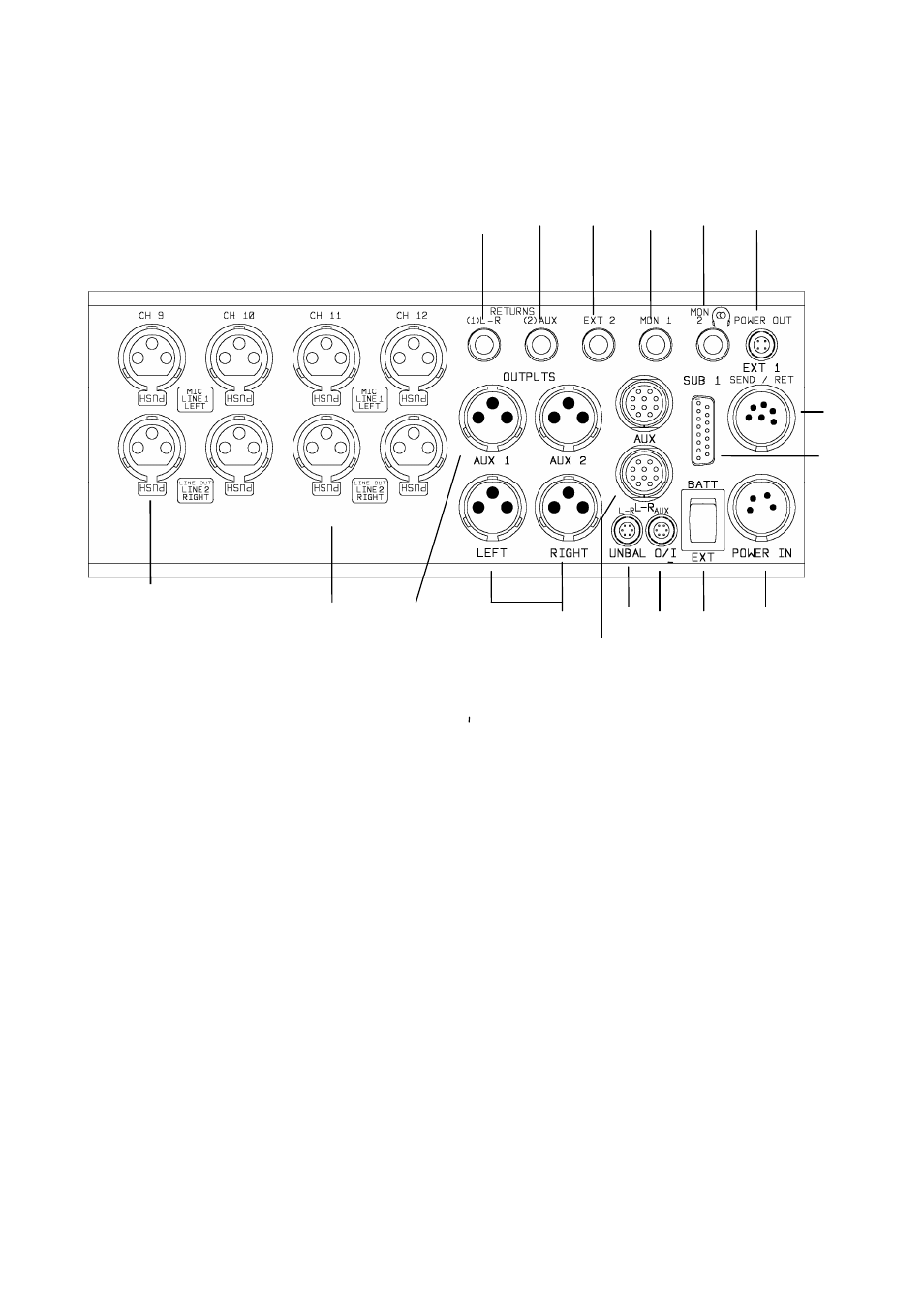

CONNECTOR PANEL
(1) Microphone input
(10)
Left-Right output/return multiway
(2) Line input
(11)
Left-Right output/return connector
(unbalanced)
(3) Main Left-Right output
(12)
Auxiliary output/return connector
(unbalanced)
(4) Auxiliary 1-2 output
(13)
Auxiliary output/return multiway
(5) Left-Right return jack socket
(14)
Off/On switch (external & internal)
(6) Auxiliary 1-2 return jack socket
(15)
External DC power input
(7) External 2 output jack socket
(16)
Subsidiary connector
(8) Monitor 1 output jack socket
(17)
Talk send & return
(9) Monitor 2 output jack socket
(18)
DC power output
Option-XLR & Jack in
single housing
