7.
Menu Description
POWER ON / OFF
To turn on the ACN-TL, press and hold the config switch for 4 seconds.
To turn off, press and hold the switch for 4 seconds. The display will show:
Press switch again to power down.
MAIN DISPLAY
The main display is the normal operation mode. It
displays the most important status information. These
are the time code momentarily running, sync signal
type and rate, time code frame rate, and various
additional information:
“X” next to the Fps indication indicates a cross-jam
mode, i.e. the time code rate is not consistent with the
sync rate, but compatible and in sync at each second’s
transition.
“A” in upper left corner indicates the jam mode “auto”, the lock symbol indicates “off” – no
external jamming available, “M” indicates manual / once.
“+00:00” top right beside the battery indicates the offset.
“COM” or “MTC” show the status of the USB port.

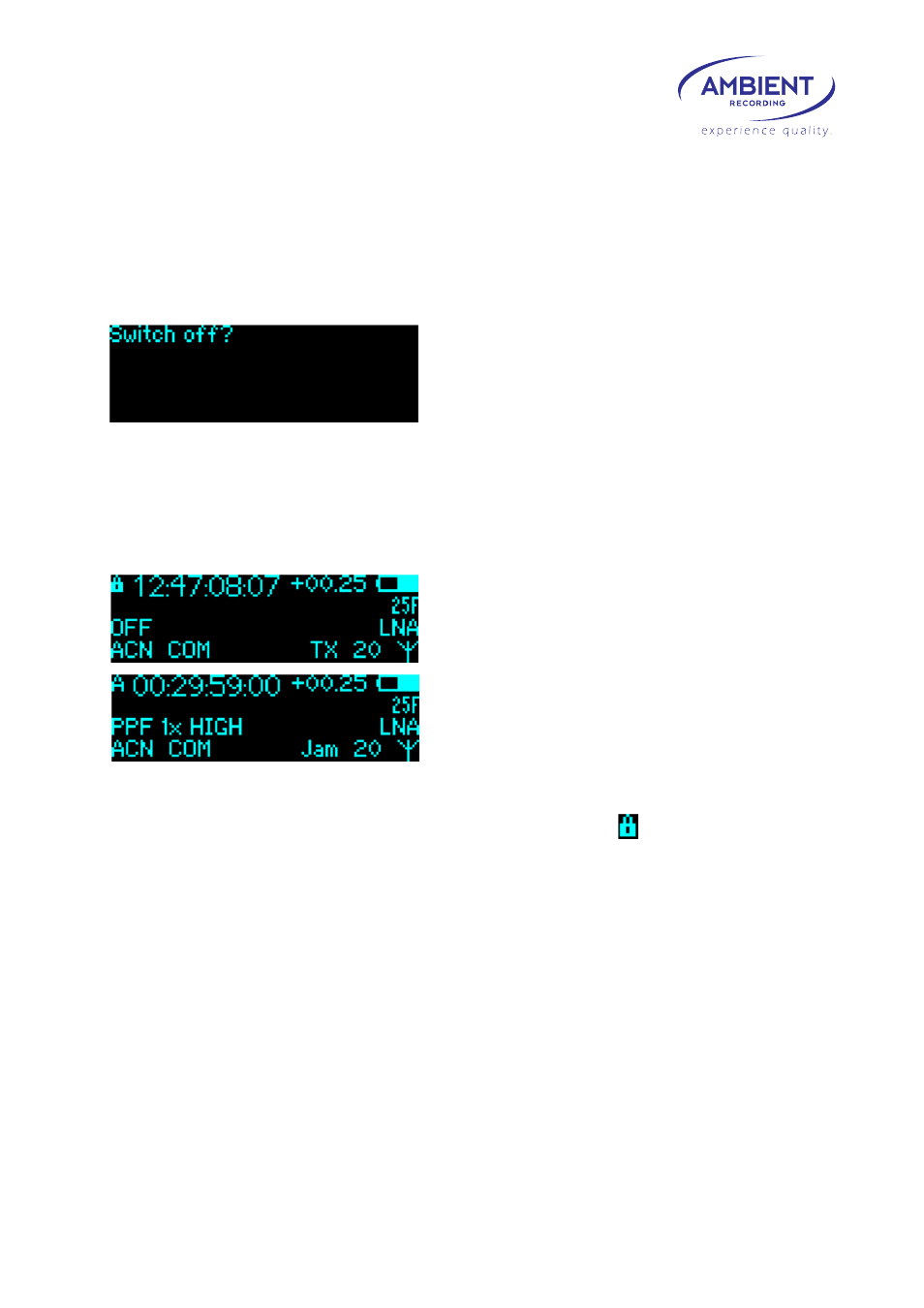

Information related to ACN will be displayed once it is activated (on above screen shot it is in “TX
external time code” mode, channel 20, external antenna and LNA activated).
If the display is switched off (power save), pushing the config switch once will turn it on again
without doing any changes. Also, a time code jam activates the display.
