Analog Output
Screen in 4K Mode
The Analog Output screen allows you to make the same selections previously described
for Standard Mode when an SD, HD, or 2K format is selected (refer to
“Analog Out Screen”
on page 58 ).

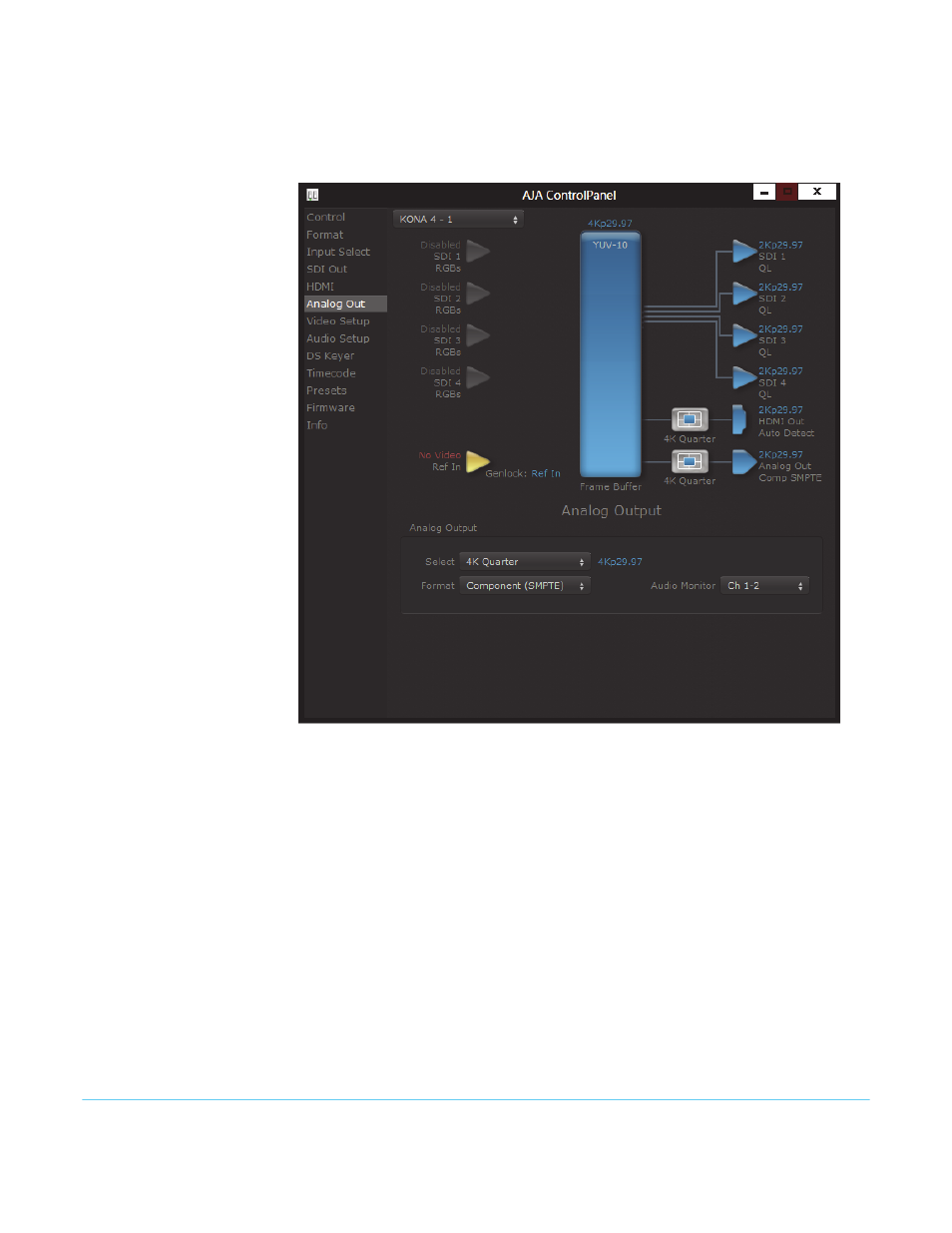

Figure 72. Analog Output Screen with 4K Primary Format
For 4K formats, a Quandrant Select menu is available to choose the desired quarter-
segment of the 4K display for Analog Output to a monitor (see the discussion on 4K
quadrant mapping at this beginning of this section).
NOTE: KONA 4 offers a 4K Quarter output that is a downconversion to 2K x 1080 for 4K format or
1920 x1080 for UHD
