LHe Plus Cable
Connections

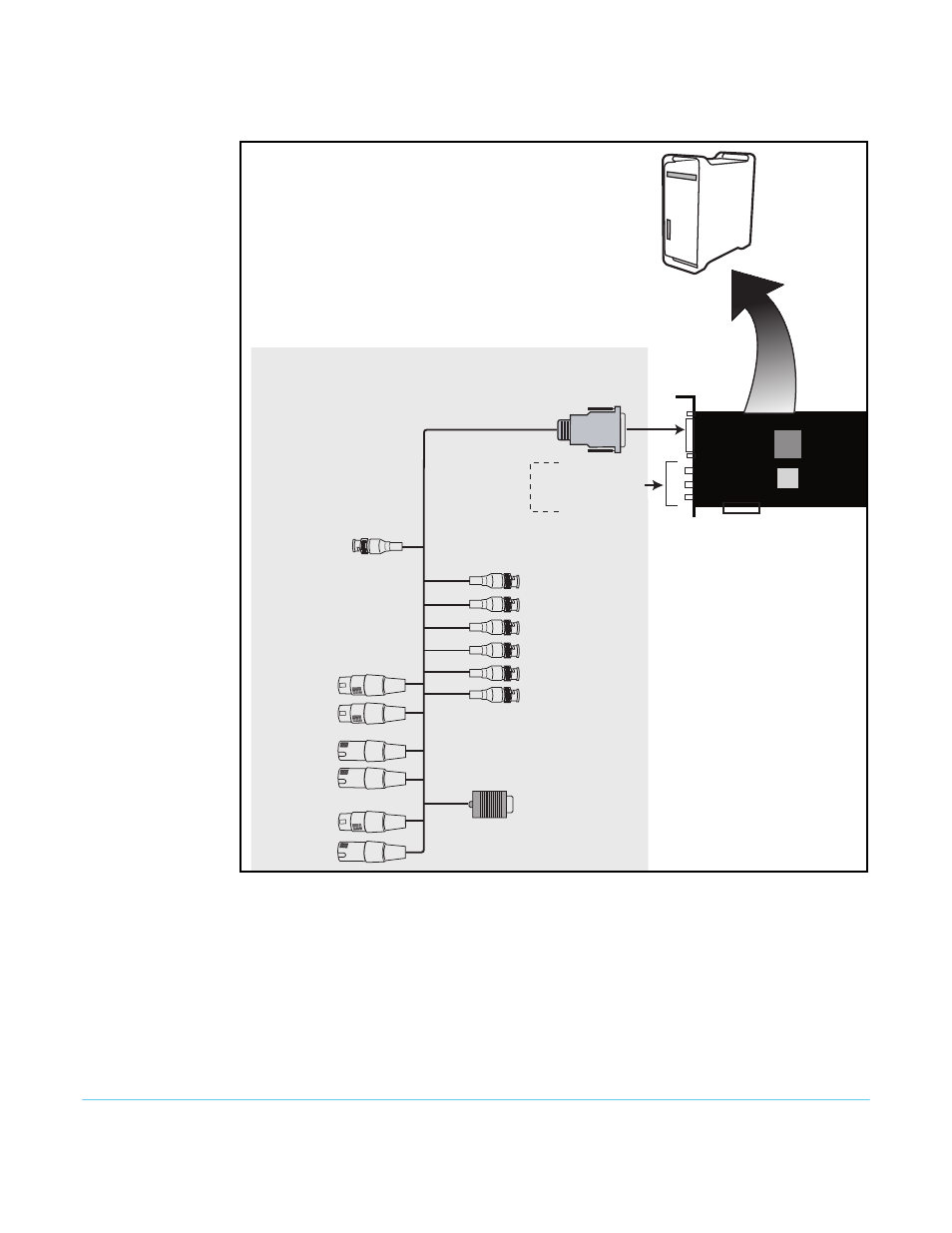

Figure 14. KONA LHe Plus System Using The Breakout Cable
Typical System Figure 15 on page 28 shows typical system interconnections for KONA LHe Plus with
digital A/V sources. Your system may differ depending on VTRs, audio monitoring, and
video monitoring.
1. If desired, connect your house reference sync to the KONA LHe Plus Ref Loop
connector (BNC). The second KONA Ref Loop connector on the KL-box (if used) can
be connected to the VTR or terminated with a 75-ohm terminator.
2. Connect a Video Monitor to the KONA LHe Plus Component Analog Video Out BNC
connectors (preferred), or instead connect to a composite monitor.
6 BNCs (Analog Connections):
Can be Configured for
Component,
Composite,
or Y/C
Standard Breakout Cable
KONA LHe Plus
Installs in
PCI-Express Slot
in Computer
Reference Input BNC
or LTC input
(switchable via AJA
Control Panel)
RS422
Machine Control
to VTR
(9-pin)
SDI Input BNC
SDI 1 Output BNC
SDI 2 Output BNC
Y/CVBS In BNC
Pb/Y In BNC
Pr/C In BNC
Y/G/CVBS Out BNC
Pb/B/Y Out BNC
Pr/R/C Out BNC
green
blue
red
green
blue
red
Analog Audio
Channel 1 Input
Analog Audio
Channel 2 Input
Analog Audio
Channel 1 Output
Analog Audio
Channel 2 Output
AES Input
Channels 1 & 2
AES Output
Channels 1 & 2
60-pin connector
To KONA LHe Plus
Balanced Audio
Analog Video
SD/HD SDI
Video/Audio
Connections
