Audio Monitor: Here you select which two channels will be mapped to the analog audio stereo output
(headphone jack).
Video Setup Screen
KONA4/ 3G provides a high-quality analog component or composite output, generally
used for monitoring. This screen shows the current settings for that analog video output,
and allows you to re-configure it when desired.

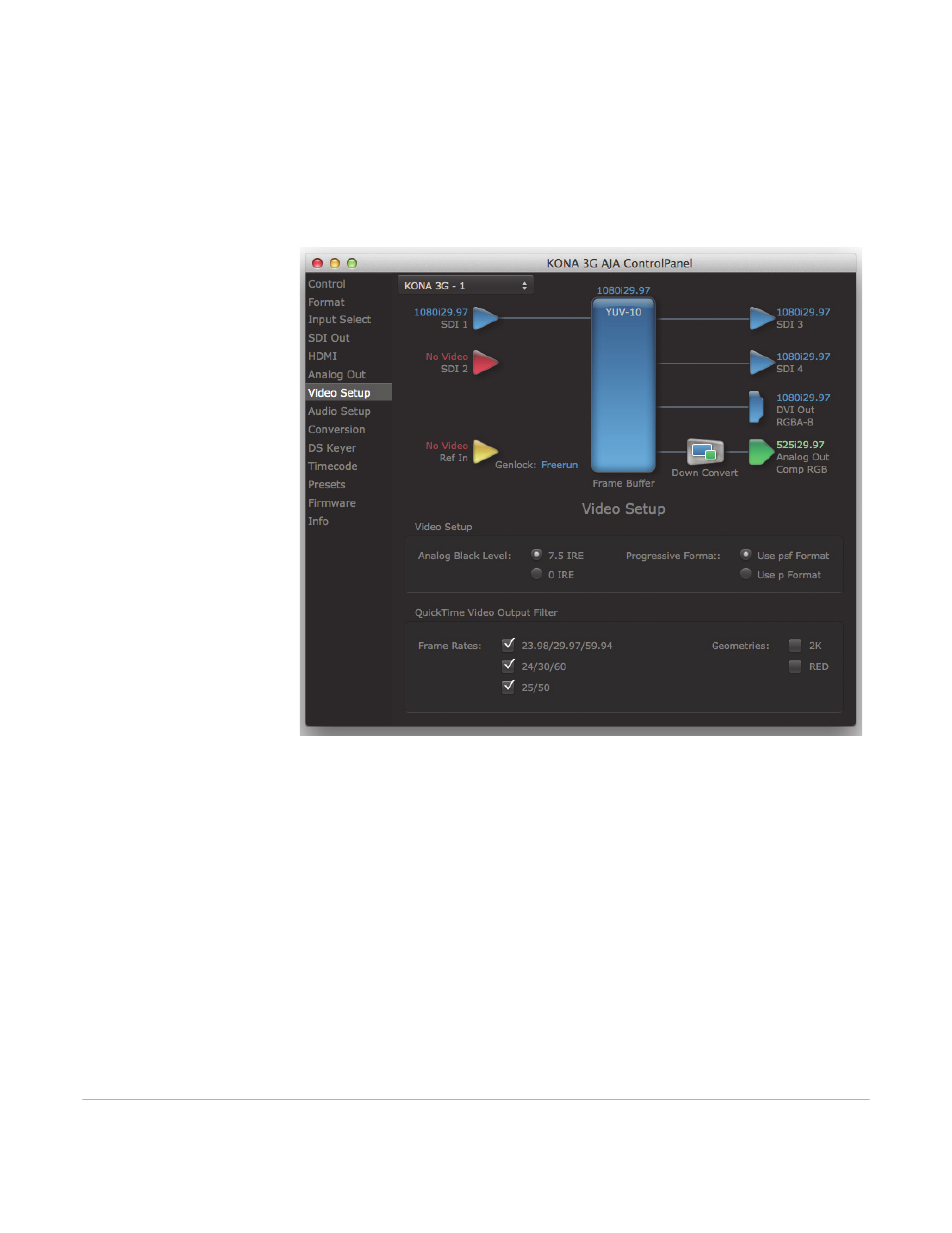

Figure 51. AJA Control Panel, Video Setup Screen
Video Setup Screen
Settings
Analog Black Level: Choices available for Black Level are the two Composite analog formats. Choices
presented are for US or Japan:
• 7.5 IRE (NTSC US)
• 0 IRE (NTSC Japan)
Progressive Formats: Radio buttons allow you to choose between psf (progressive segmented frames) and
p (progressive frames) non-interlaced output.
QuickTime Video Output Filter
(available on Mac OS only):
The QuickTime Video Output Display Filter is designed to help manage the
comprehensive list of video outputs that may be available to applications.
By selecting the checkbox next to specified parameters, the video outputs related to
these specified parameters are enabled as possible video outputs for applications. For
example, if the checkbox next to 25/50 is unchecked, 50Hz video outputs are deselected
and would not be available to the user’s editing application. To avoid confusion when
