KONA v10.5 www.aja.com 12
KONA 4/3G
Connectors
KONA 4/3G provides complete I/O connectivity choices in two multi-signal breakout
cables and one HDMI-to-HDMI mini output cable. One multi-signal cable provides AES/
EBU digital BNC connections and analog video monitoring connections. The other has 4
mini-connectors on one end and 4 BNCs on the other providing SDI connections for both
Single Link and Dual Link SD/HD SDI connections. Cable connections are marked on both
the KONA card endplate and on the cable connectors for easy identification.

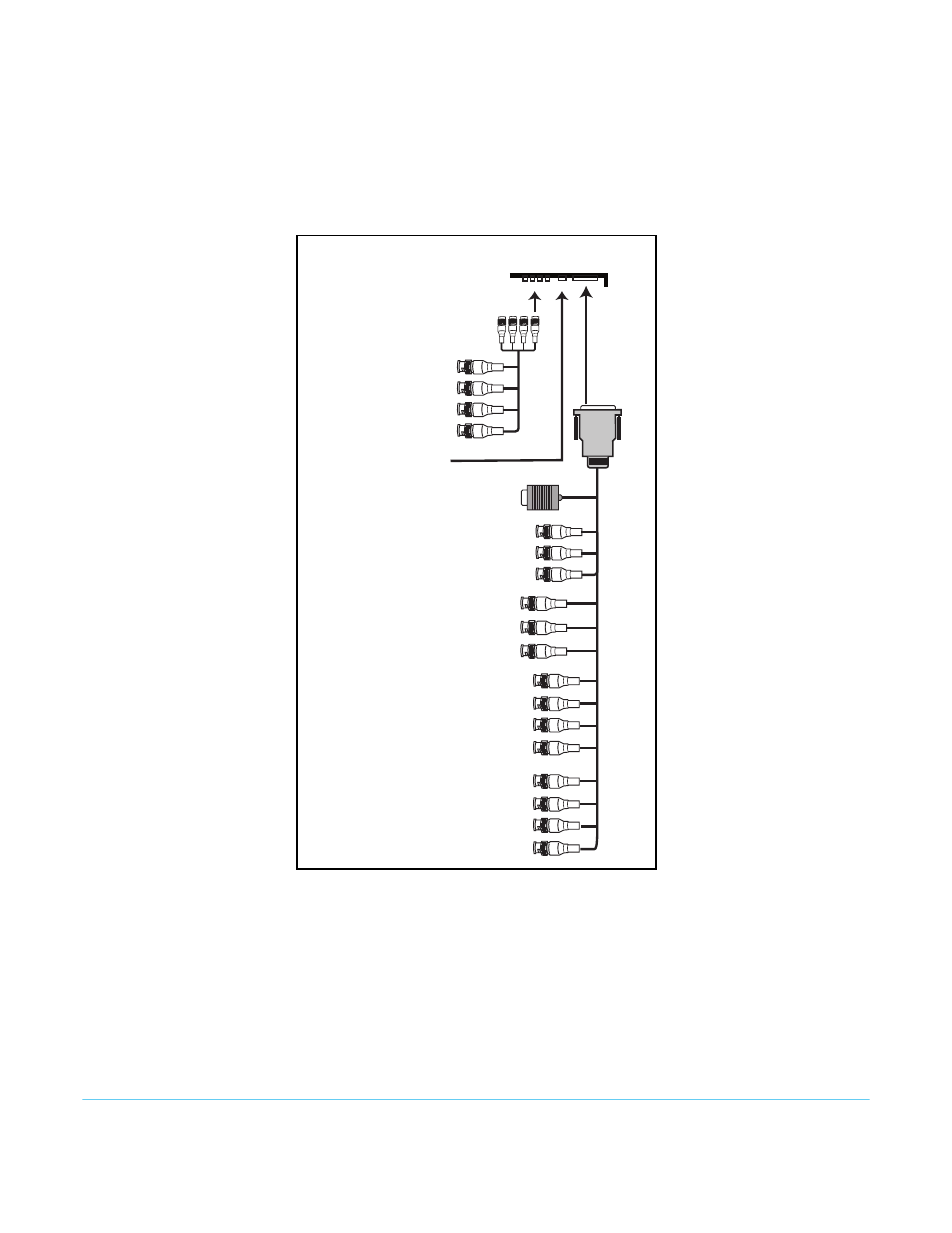

Figure 2. KONA 4/3G Breakout Cable
4-mini BNCs
to 4 standard
BNCs
Reference Input BNC
HDMI Output (1)
RS422 Machine Control to VTR
(9-pin)
SDI Out1/Link A BNC
SDI Out2/Link B BNC
SDI In1/Link A BNC
SDI In2/Link B BNC
Digital AES
Audio Input BNCs
Channels 1-8
Digital AES
Audio Output BNCs
Channels 1-8
LTC Input BNC
LTC Output BNC
SDI
KONA 4/3G
end-plate
3 BNCs (Analog Connections):
Output SD:
Component, Composite, or S-Video
Output HD: Component or RGB
