The KONA LHi and LHe Plus cards use the breakout cable shown below providing XLR
balanced audio connectors, an RS-422 9-pin connector, and BNCs for video I/O and
reference connection.

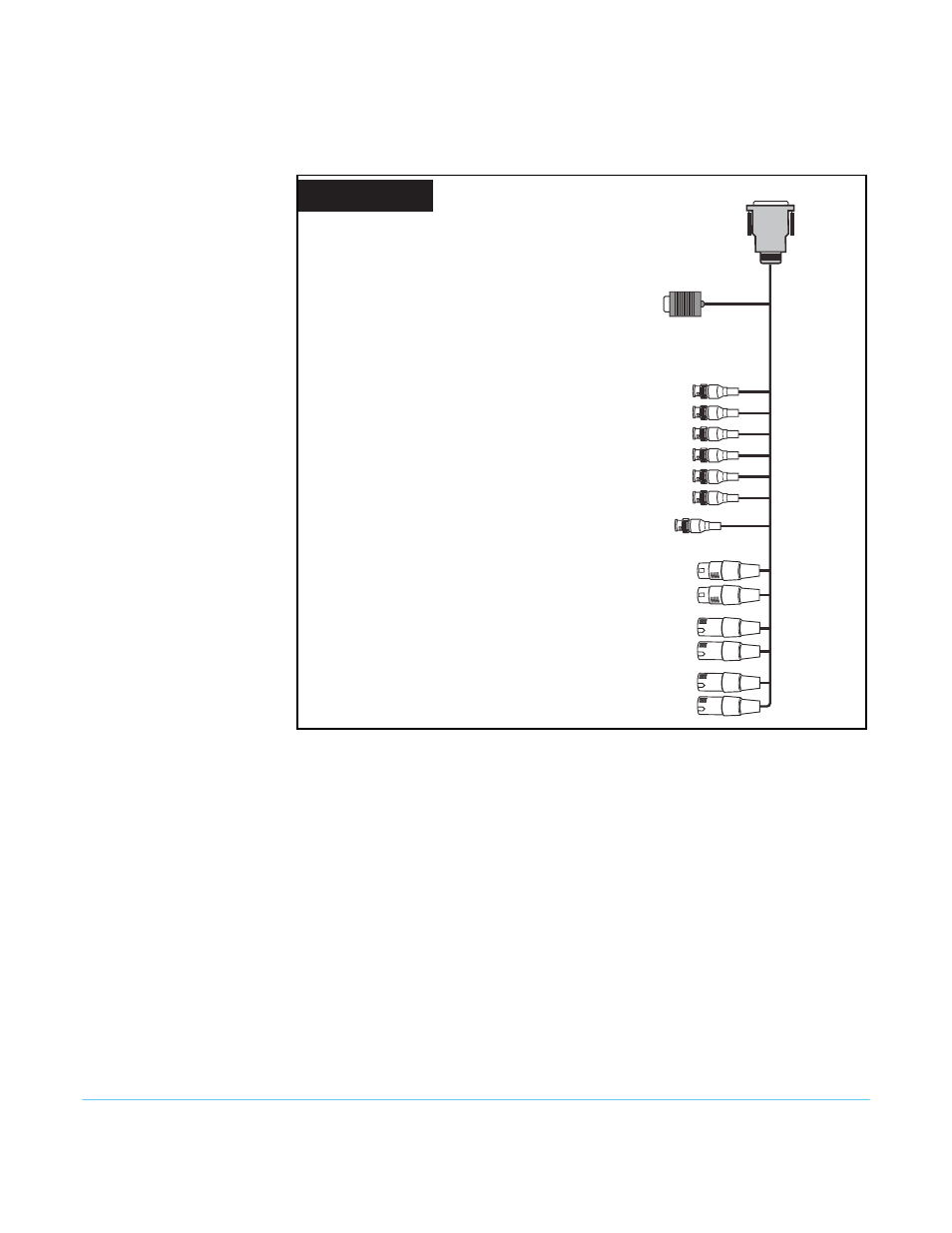

Figure 7. KONA LHe Plus/LHi Breakout Cable
As you unpack your shipment, carefully examine the contents. Ensure you received
everything and that nothing was damaged during shipping. If you find any damage,
immediately notify the shipping service and supply them with a complete description of
the damage. AJA will repair or replace damaged items. If you find shipping damage,
contact your AJA dealer or distributor for details on how to have your KONA card
repaired or replaced.
NOTE: Save packing materials and the shipping box. If you ever require service or move your
system—use the packaging materials and box for safe shipment.
Standard Cable
RS422 Machine Control to VTR
(9-pin)
Analog Audio Channel 1 Input
Analog Audio Channel 2 Input
Analog Audio Channel 1 Output
Analog Audio Channel 2 Output
Digital AES Input Channels 1 & 2
Digital AES Output Channels 1 & 2
Multiple-pin connector
To KONA LHi
Y/CVBS In BNC
Pb/Y In BNC
Pr/C In BNC
Y/G/CVBS Out BNC
Pb/B/Y Out BNC
Pr/R/C Out BNC
green
blue
red
green
blue
red
6 BNCs (Analog Connections): Can be
Configured for Component, Composite, or Y/C
Reference Input or LTC Input BNC
Balanced Audio
Analog Video
