Rockwell Automation T8842 Trusted Versatile FTA - Manual (Page 2)

SDS-8842
Trusted
TM Industrial Control System
Trusted TM Versatile FTA - T8842
ICS Triplex
Technical data sheets are intended for
information and guidance. The Company
has a policy of continual product
development and improvement.
Specifications are subject to change
without notice. For latest information, visit
our Website:-
www.icstriplex.com
BLOCK DIAGRAM

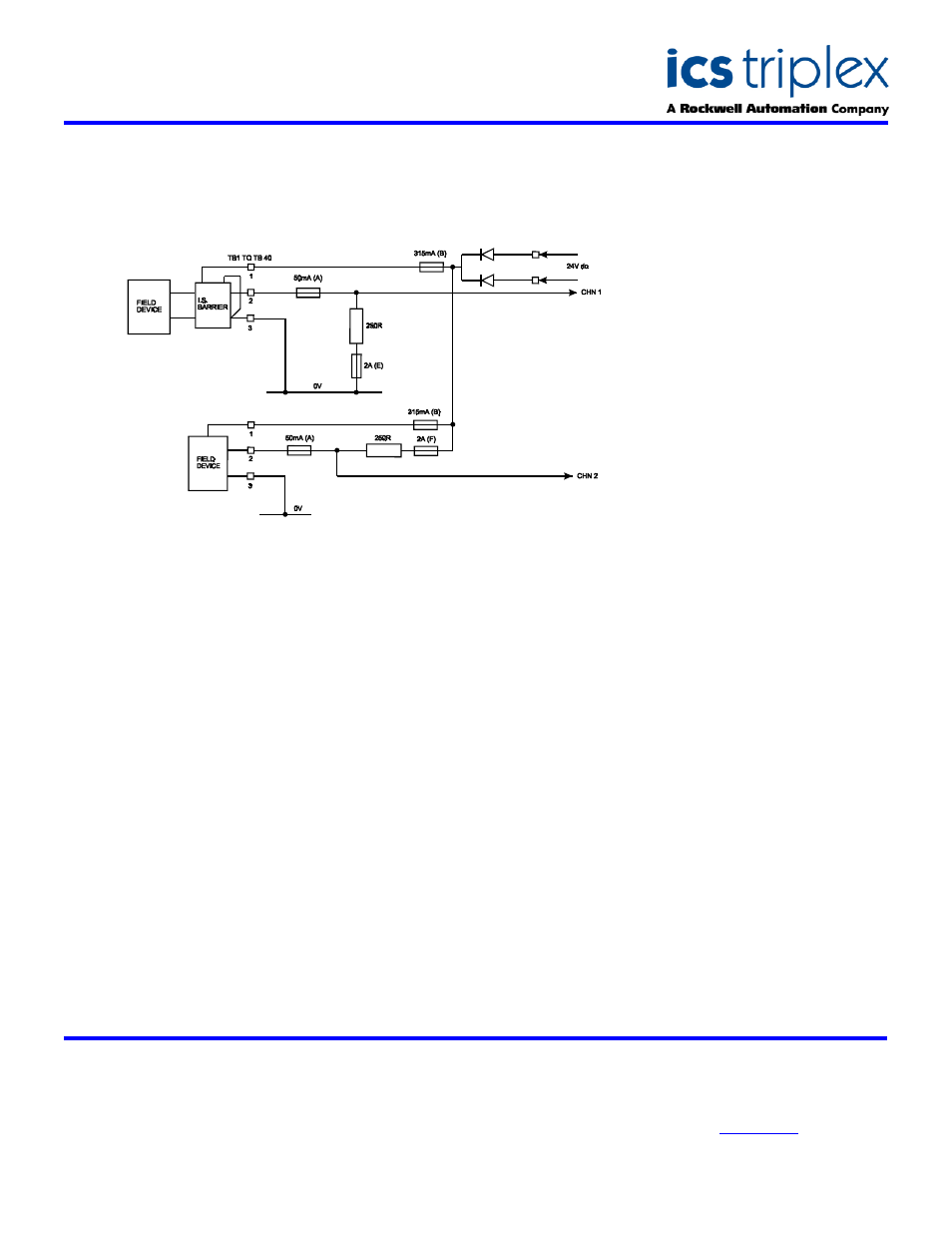

Single Channel Schematic for Current Sinking Gas Inputs
ELECTRICAL SPECIFICATION
Voltage Range (Field Supply) 18 to 28V dc
Fuses 40-off 2A
40-off 315mA
40-off 50mA
Maximum Current (Field Supply) 2.52A per power group
Recommended Operating Current 220mA per channel
Power Consumption (Field Supply) 9W maximum
Signal Input range 0-20mA
MECHANICAL
SPECIFICATION
Dimensions (HxWxD):
110mm x 360mm x 68mm
(4.3ins x 14.2ins x 2.6ins)
Weight (fully populated)
950gms
(2.1lbs)
ENVIRONMENTAL
Operating Temperature:
-5
°C to 60°C
(23 °F to 140°F)
Operating Humidity:
5 to 95%, non-
condensing
Vibration:
10 to 57Hz
±0.075mm
57 to 150Hz 1.0g
Shock:
15g, ½ sine wave, 11ms
EMI (IEC 801):
ESD
Air discharge to 15kV.
Contact discharge to 8kV
Radiated Fields
10V/m, 27MHz to
500MHz
Transients and Bursts
2kV, 2.5kHz for
t=60 seconds
