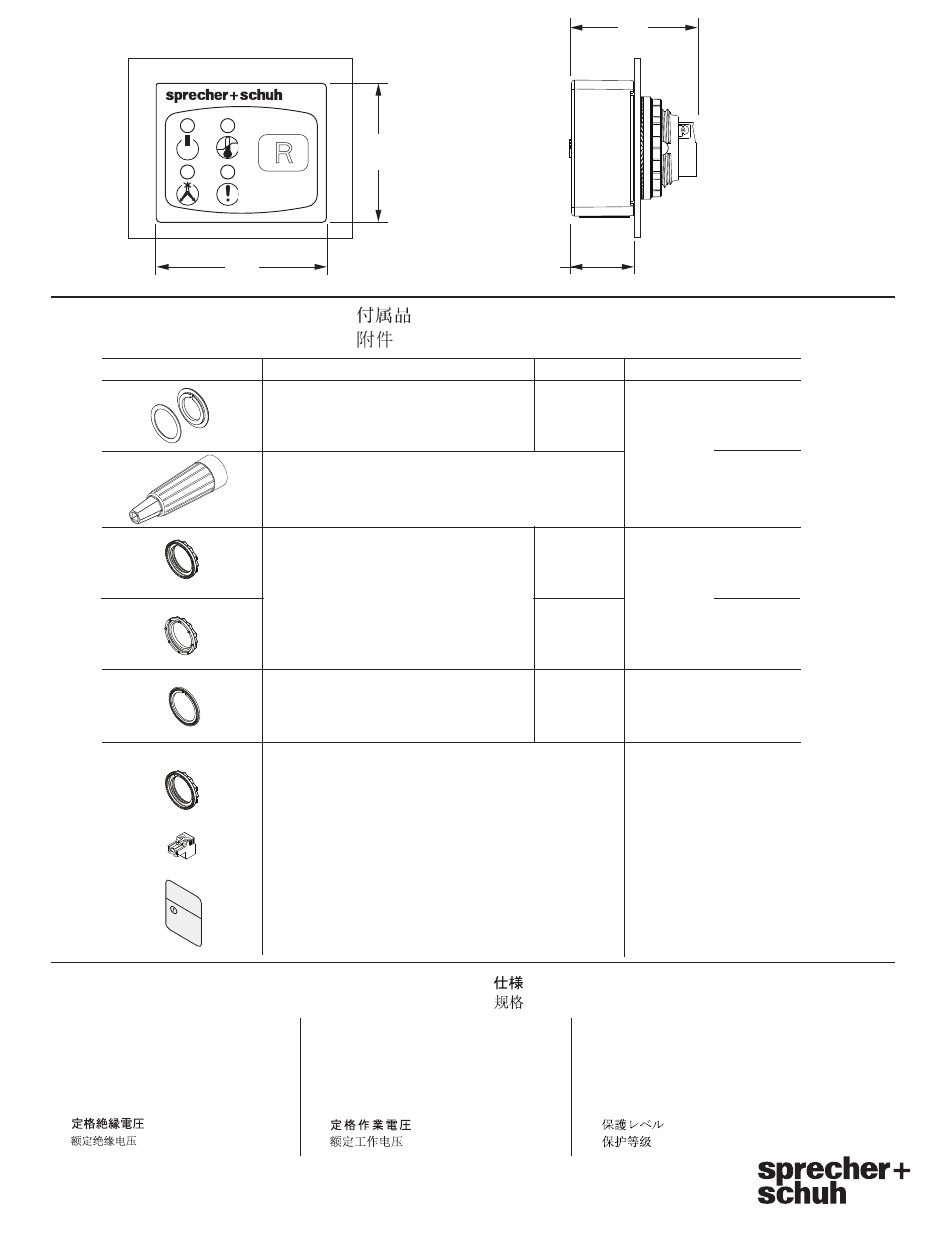

Rockwell Automation CEP7-ERID CEP7 Remote Indication Display Application and Installation User Manual
Page 4

Specifications
Caractéristiques
Spezifikationen
Características
Rated Insulation Voltage (Ui)
Tension d'isolation nominale (Ui)
Nennprüfspannung (Ui)
Tensión nominal de aislamiento (Ui)
Voltaggio di isolamento nominale (Ui)
Voltagem Nominal de Isolamento (Ui)
Degree of Protection IP 65 / 66 (Type 4/4X/12 /13)
Niveau de protection For use on a flat surface of a
Schutzgrad Type 4/4X/12/13 enclosure
Grado de protección
Nível de proteção
Grado di protezione
300V
Rated Operating Voltage (Ue)
Tension d'emploi assignée (Ue)
Nennbetriebsspannung (Ue)
Tensión nominal de trabajo (Ue)
Voltaggio di isolamento di esercizio (Ue)
Voltagem Nominal de Operação (Ue)
24 VDC
Accessory
Accessoire
Zubehör
Accesorio
Acessório
Accessori
Specifiche
Especificações
(Ue)
(Ue)
(Ui)
(Ui)
PN-28077
DIR 10000022833 (Version 02)
Printed in U.S.A.
Description
30.5 mm to 22.5 mm Hole Size Adapter
This adapter allows a 22.5 mm push button
operator to be installed in a panel with existing
30.5 mm mounting holes.
Note: Comes with anti-rotation washer
Mounting Ring Wrench
The mounting ring wrench is used to tighten plastic or metal mounting
rings quickly and securely
Replacement Mounting Rings
Replacement Parts:
Mounting Ring (Plastic)
Terminal Block Plug
L.E.D. Fault Code Label
Replacement Trim Washer
Type
Pkg. Quantity
Cat No.
Metal
1
10
D7-AHA1
Plastic
D7-ARP
Metal
D7-ARM
10
1
1
1
Metal
D7-ATW1
CEP7-NCRID
D7-AW2
1.81
(46)
.69
(17.5)
1.37
(34.9)
1.50
(38)
FAUL
T CODE
Star
ter:
1- GR
OUND F
AUL
T
2- J
AM
3- PTC
