I/O SmartSlot Cables Version 2 TC-500
Issue 13 Apr 10 PD-TC500 9
1. I/O SmartSlot Cable Type TC-501
This type of cable, and the modules/field termination assemblies it is used with, is shown in Figure 1
below.

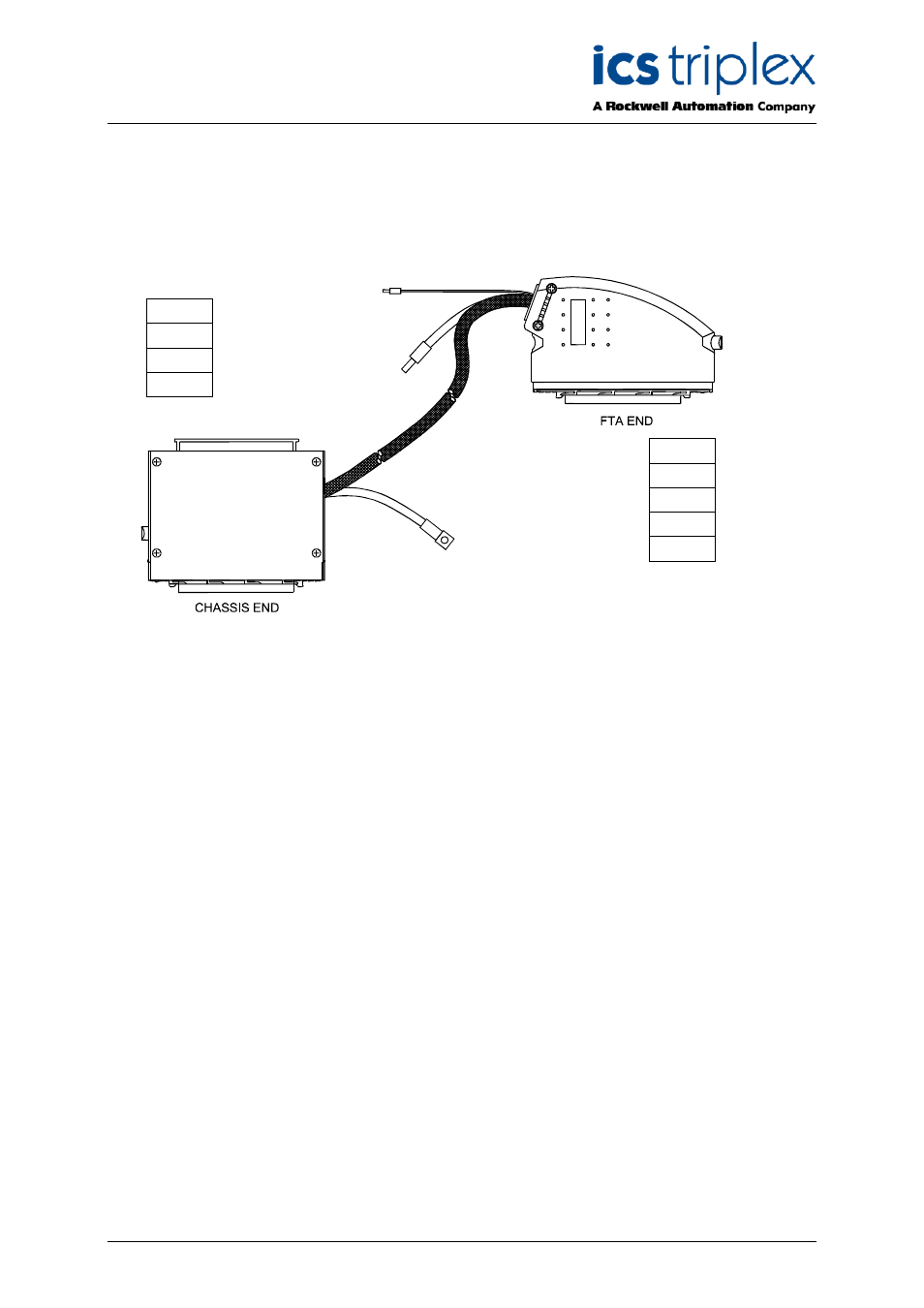

Figure 1 I/O SmartSlot Cable Type TC-501
This type of Trusted TM I/O SmartSlot Cable is designed for use with analogue or digital input modules
and is suitable for connecting input signals from an internal FTA to the module.
The chassis end of the multi-core cable is fitted with a 96-way type ‘C’ connector housed in a
single-width hood (Type TC-500). The other end of the cable is fitted with a 96-way type ‘R’ connector
housed in a single-width hood enabling the cable to be connected to an FTA.
The multi-core cable is stripped back 1.5m at both ends, then shrouded in nylon Rilgain sheathing.
The ends of the sheathing are heated or fitted with over sleeving to prevent fraying.
At both the chassis and remote end, a sheathed braid allows the connector hood to be wired to safety
earth. At the remote end, the multicore screen drain is wired to a green wire to allow connection to
screen earth.
FTA
T8800
T8801
T8821
T8830/1
Module
T8403
T8423
T8431
