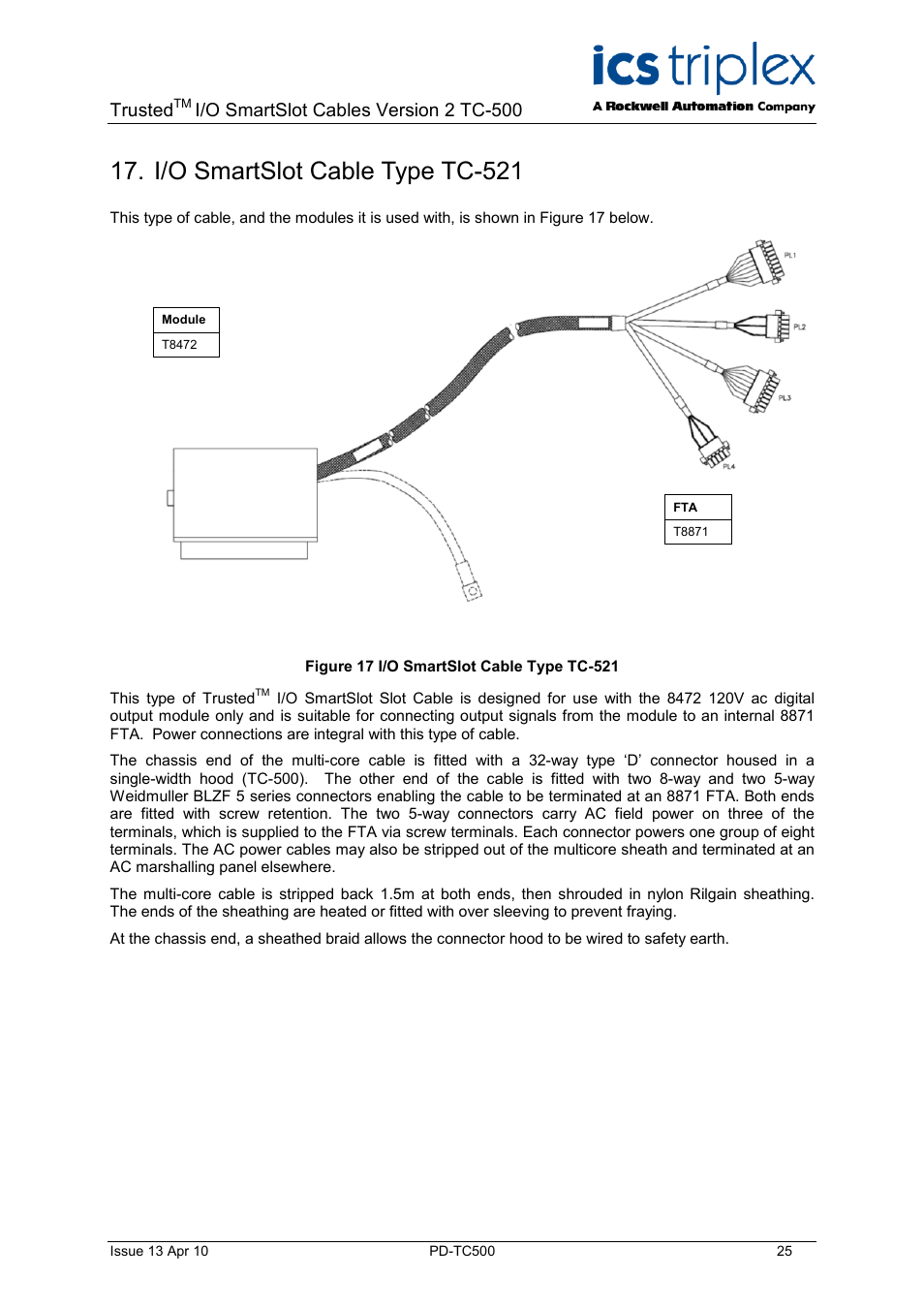

I/o smartslot cable type tc-521, Figure 17 i/o smartslot cable type tc-521, Trusted – Rockwell Automation TC500 Trusted I/O SmartSlot Cables User Manual
Page 25: I/o smartslot cables version 2 tc-500
