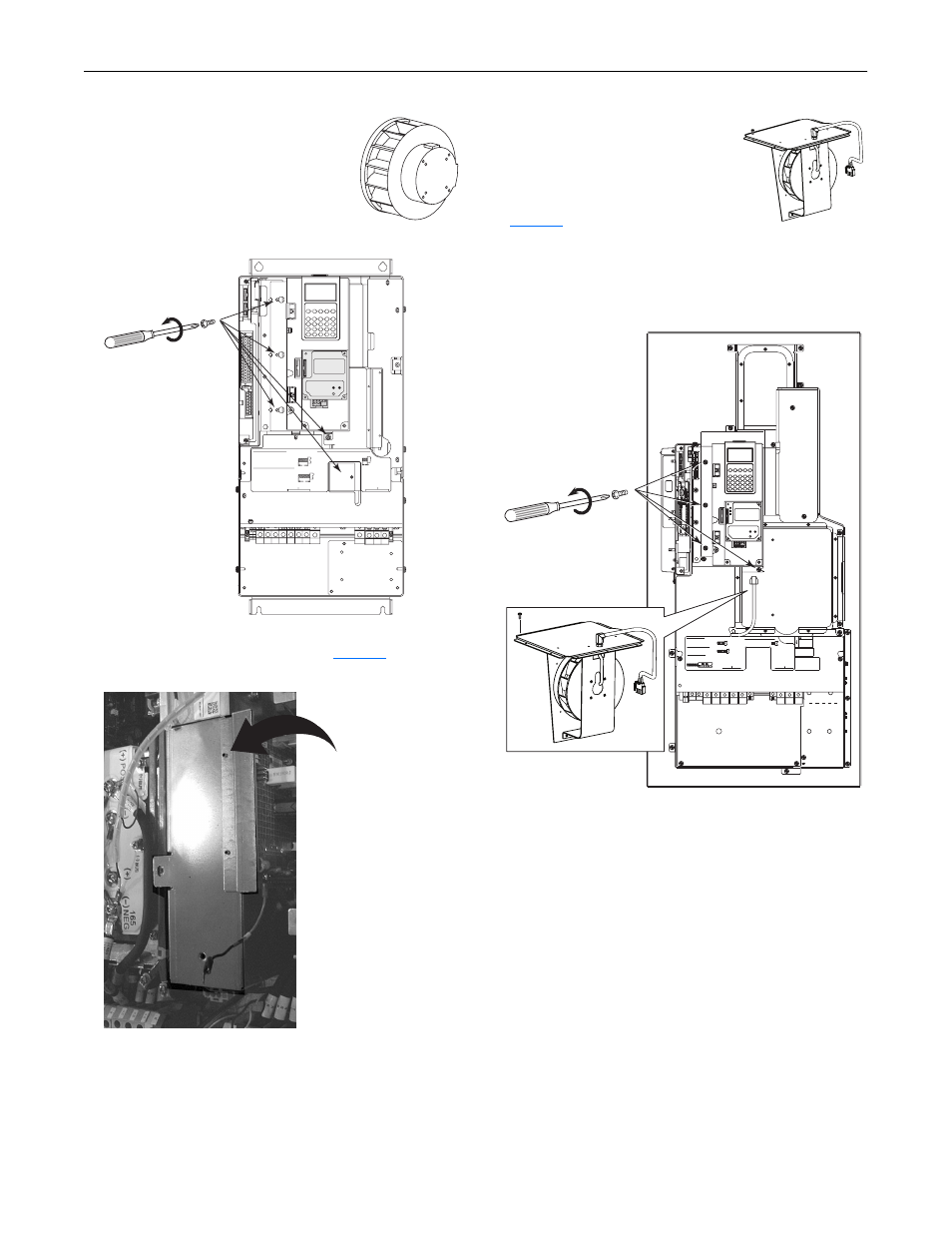

Fan/Fan Transformer Replacement – Frame 5
Fan Replacement - IP00, NEMA/UL
Type 1 Drives
A. Remove the four screws securing the
plastic shield and HIM panel. Remove
the shield and lay the HIM Panel to one
side. Remove ground wire and MOV.
Figure 3
B. Remove screw securing fan cover. Remove fan connector.
Slide fan enclosure down & out (see
Figure 4
).
Figure 4
C. Remove fan assembly and replace fan.
D. Re-assemble in reverse order. Verify that notch on bottom
of assembly lines up with cut-out in chassis.
E. Verify Precharge Board alignment. Tighten all screws to
3.2 N-m (28 lb.-in.).
Fan Replacement - IP54, NEMA/UL
Type 12 Drives
A. Remove the four screws securing
the HIM panel. Position the HIM
Panel off to the side. Refer to
B. Locate the Fan Assembly and disconnect the cable.
Remove the 10 screws that secure the assembly. Pull the
Fan Assembly straight out and discard.
Figure 5
C. Install the new fan in reverse order.
D. Tighten all screws to 3.2 N-m (28 lb.-in.).
WIRE RANGE: 14-1/0 AWG (2.5-35 MM
2
)
TORQUE: 32 IN-LB (3.6 N-M)
STRIP LENGTH: 0.67 IN (17 MM)
USE 75 C CU WIRE ONLY
POWER TERMINAL RATINGS
WIRE RANGE: 6-1/0 AWG (16-35 MM
2
)
TORQUE: 44 IN-LB (5 N-M)
STRIP LENGTH: 0.83 IN (21 MM)
GROUND TERMINAL RATINGS (PE)
300 VDC EXT PWR SPLY TERM (PS+, PS-)
WIRE RANGE: 22-10 AWG (0.5-4 MM
2
)
TORQUE: 5.3 IN-LB (0.6 N-M)
STRIP LENGTH: 0.35 IN (9 MM)
17
21
INPUT AC
OUTPUT
Optional
Communications
Module
9
USE 75 C CU WIRE ONLY
WIRE RANGE: 4-3/0 AWG (18-70 MM2)
TORQUE: 133 IN-LB (15 N-M)
STRIP LENGTH: 1.02 IN (26 MM)
POWER & DC TERMINAL RATINGS
WIRE RANGE: 14-1/0 AWG (2.5-50 MM2)
TORQUE: 32 IN-LB (3.6 N-M)
STRIP LENGTH: 0.67 IN (17 MM)
BRAKE TERMINAL RATINGS
WIRE RANGE: 6-1/0 AWG (18-35 MM2)
TORQUE: 44 IN-LB (5 N-M)
STRIP LENGTH: 0.83 IN (21 MM)
GROUND TERMINAL RATINGS (PE)
OUTPUT
INPUT AC
300 VDC EXT PWR SPLY TERM (PS+, PS-)
WIRE RANGE: 22-10 AWG (0.5-4 MM2)
TORQUE: 5.3 IN-LB (0.6 N-M)
STRIP LENGTH: 0.35 IN (9 MM)
DANGER
DANGER
RISK OF ELECTRIC
SHOCK AND DEATH
FIELD INSTALLED OPTIONS
6 MM HEX KEY
6 MM HEX KEY
SHLD
SHLD
x 10
