Fault finding and maintenance, Fault reporting, Field wiring faults – Rockwell Automation T8402 Trusted Dual 24V dc Digital Input Module - 60 Channel User Manual

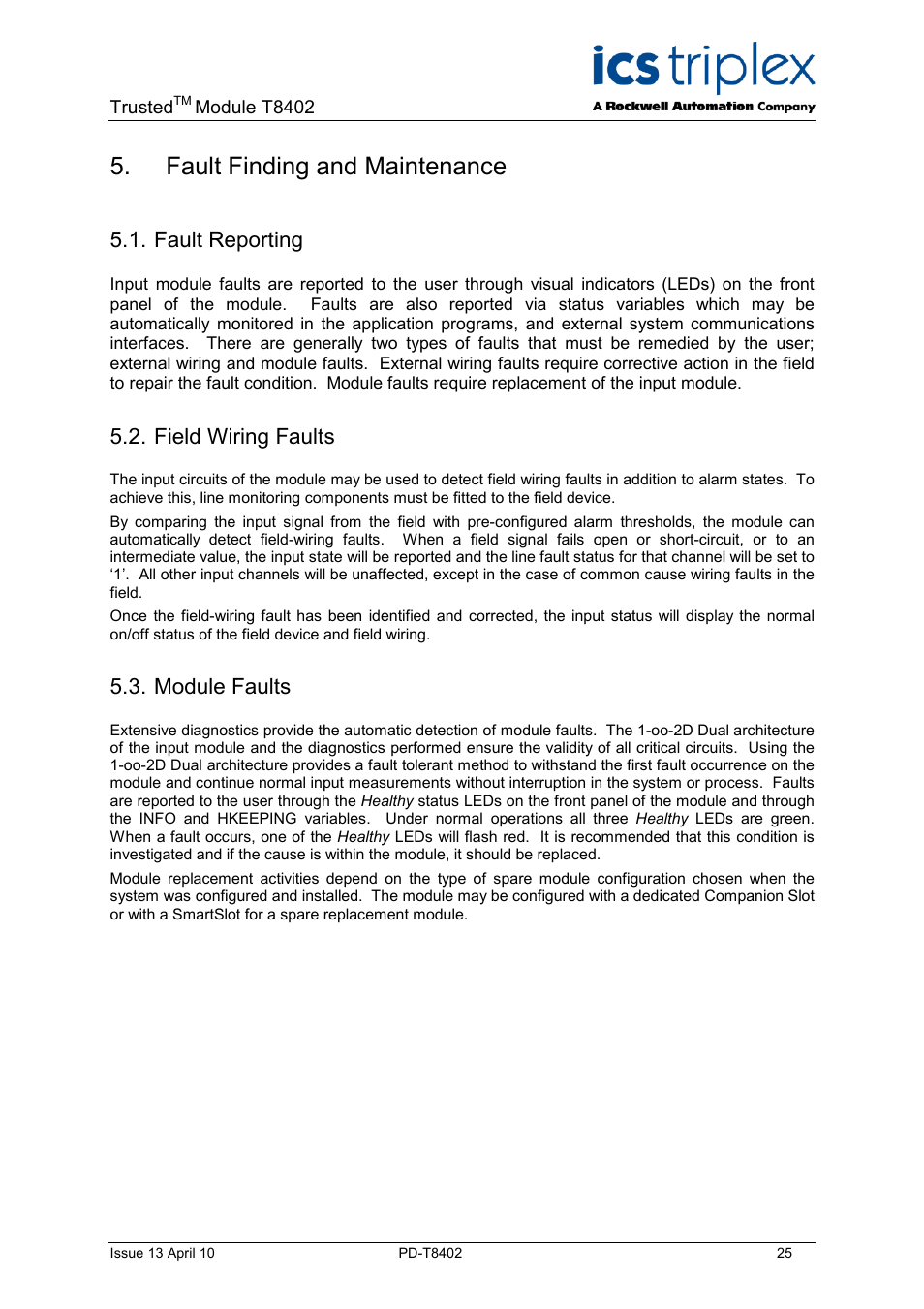

Page 25: Module faults
