Isolated Guarded Digital Output Module (T7485)
P D - 7 0 3 4 M a r - 0 6
15
1) Set the Module Type:
Position the cursor on the module slot you wish to define.
Choose Set Module Type from the Edit Menu and select
the isolated Guarded output module from the list.
2) Edit the Module Definition:
Choose Edit Module Definition from the Edit Menu. A
dialog box will open where you can define the output point
definitions.

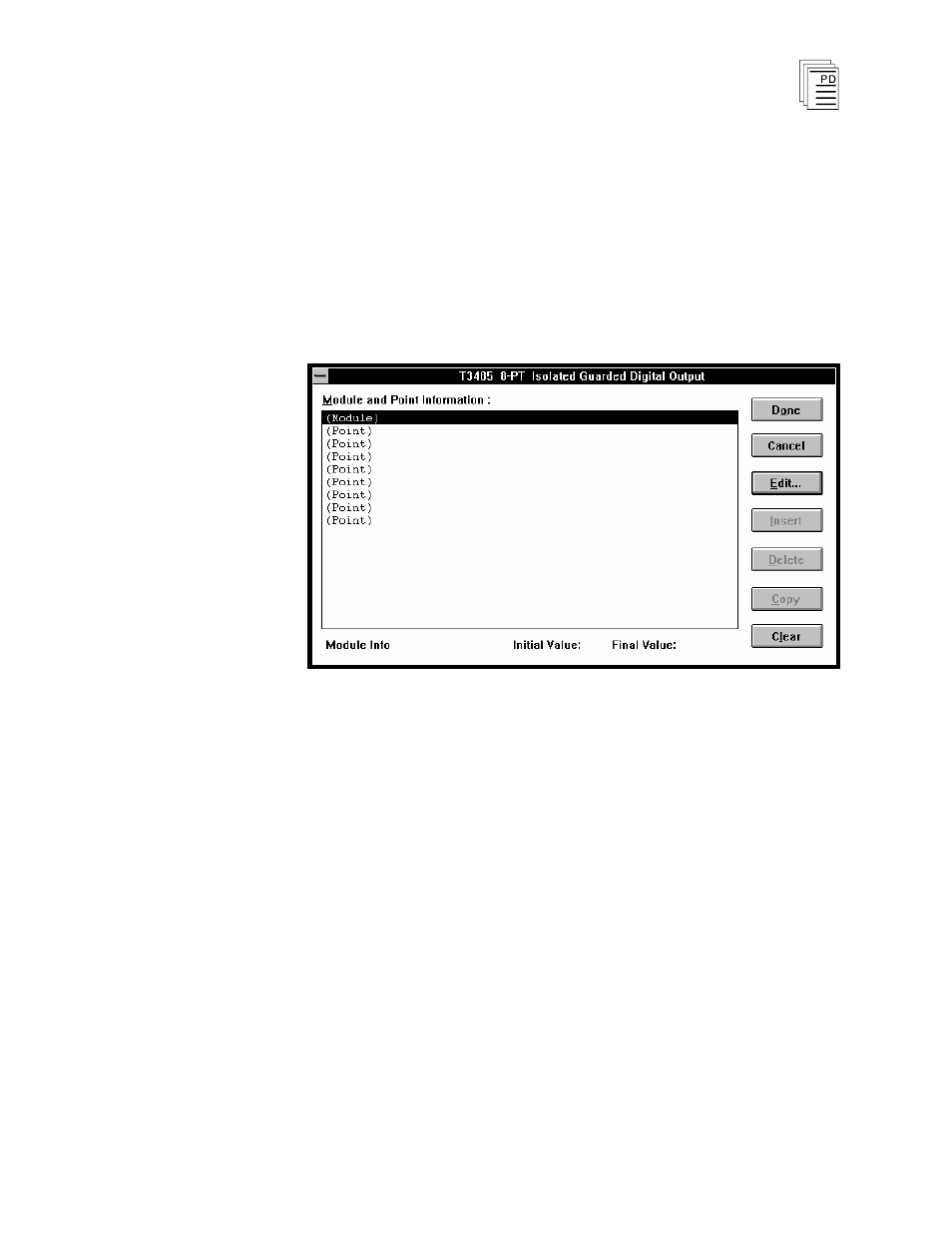

Figure 8. Isolated Guarded Output Module Definition.
3) Edit each point:
Choose Edit from the Module Definition dialog box to define a
name and description for each output point. In the Digital
Output Point dialog, enter names and values for the
configuration fields as described below.
