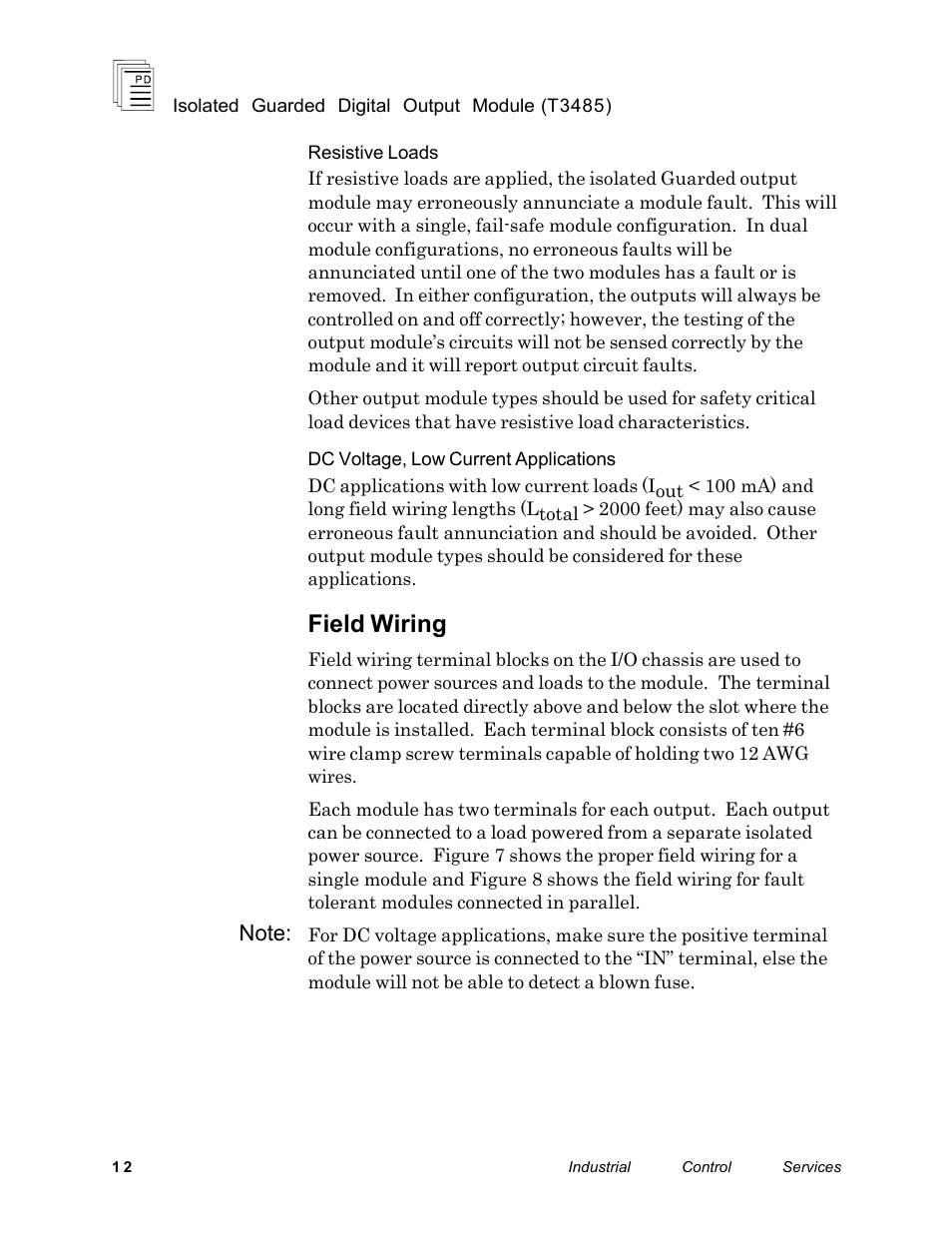

Field wiring – Rockwell Automation T3485 ICS Regent Isolated Guarded Output Modules User Manual
Page 12
