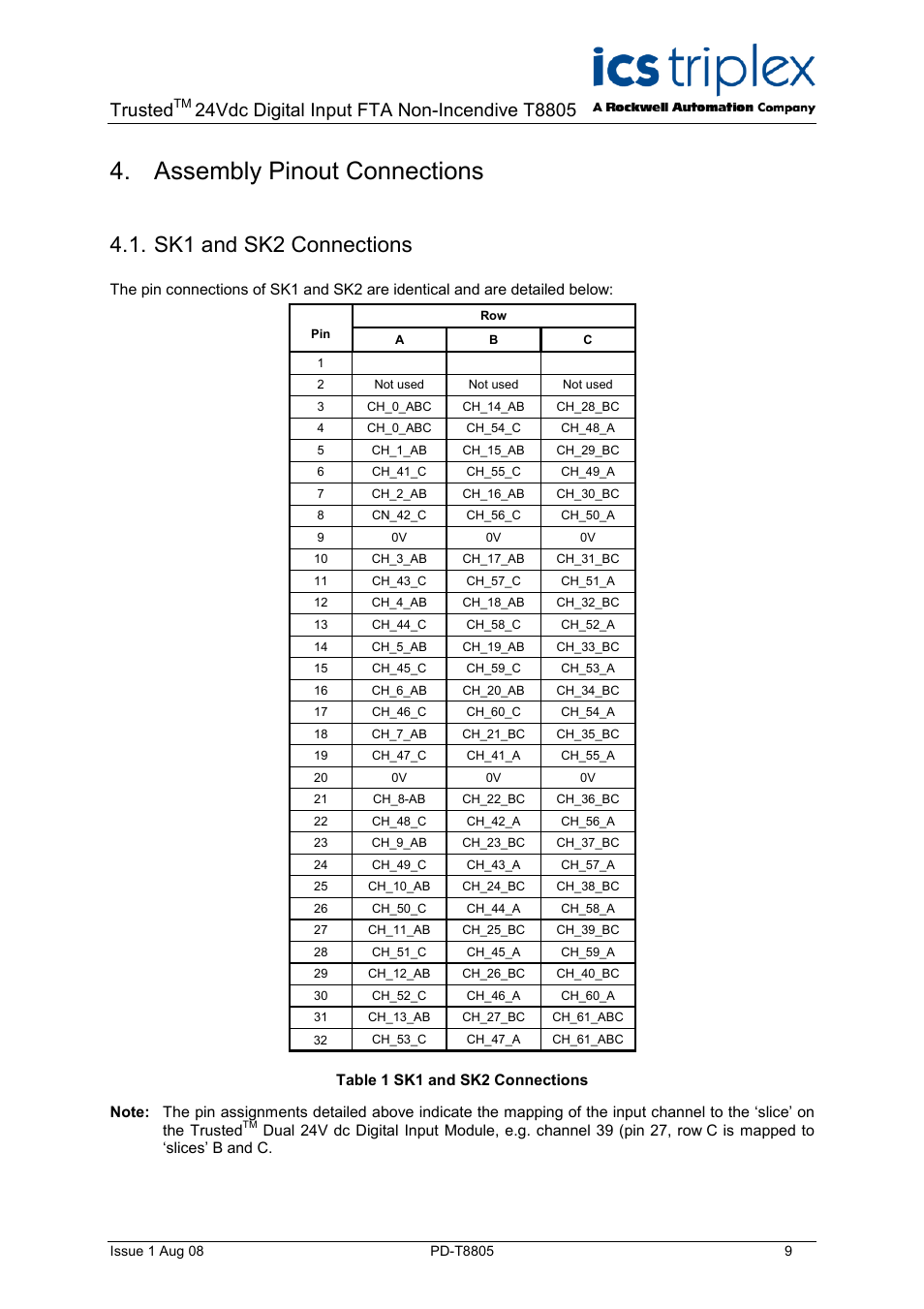

Assembly pinout connections, Sk1 and sk2 connections, Table 1 sk1 and sk2 connections – Rockwell Automation T8805 Trusted 60 Channel 24V dc Digital Input FTA Non-Incendive User Manual
Page 9: Trusted
