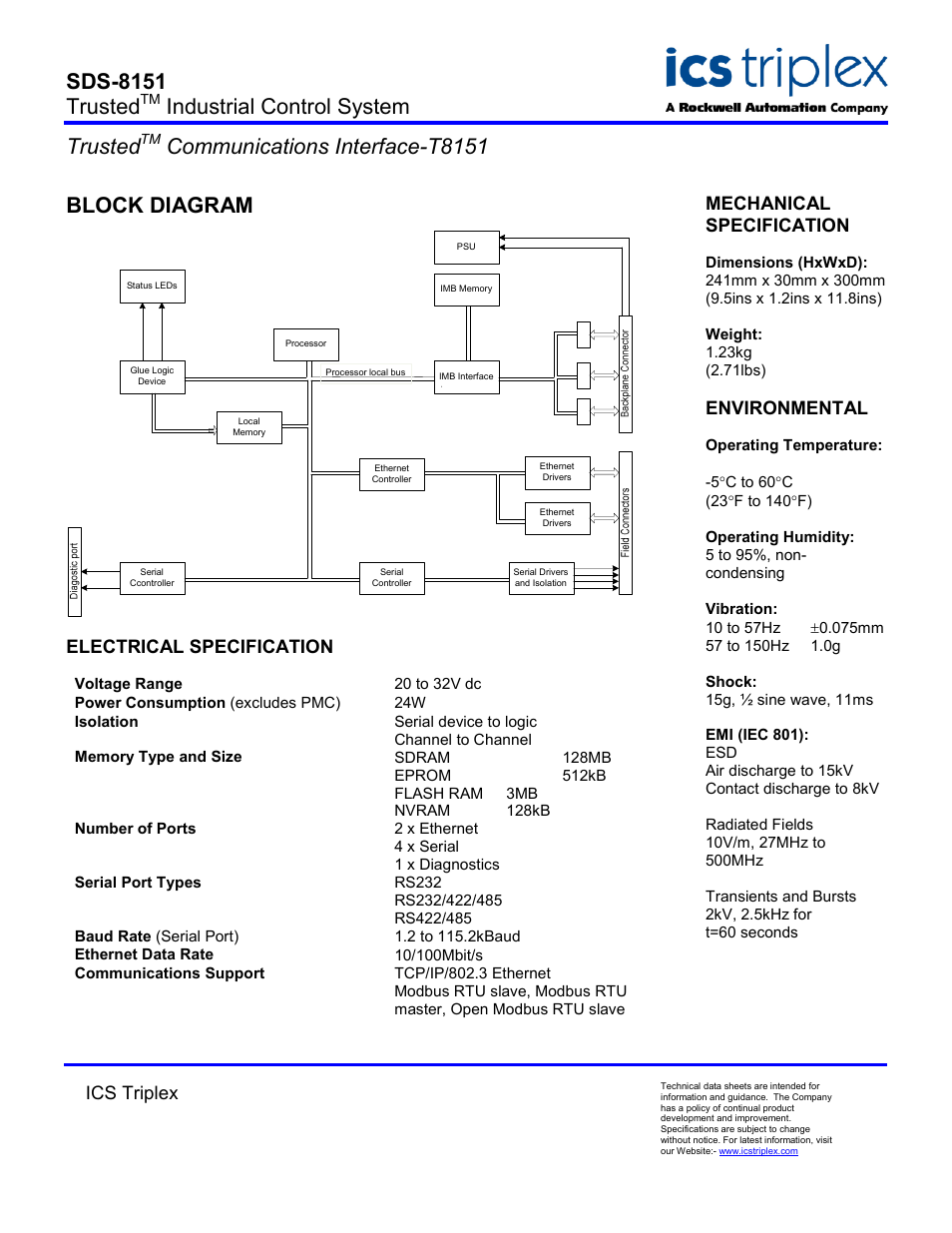

Block diagram, Electrical specification, Sds-8151 trusted – Rockwell Automation T8151 Trusted Communications Interface User Manual
Page 2: Industrial control system trusted, Communications interface-t8151, Ics triplex, Mechanical specification, Environmental
