Description, Associated equipment, Figure 2 t8173 internal layout – Rockwell Automation T8173 Trusted Gateway Adapter User Manual
Page 6: Table 1 associated equipment
Trusted
TM
Gateway Adaptor T8173
Issue 01 Feb 10
PD-T8173
6
1.1. Associated Equipment
Table 1 Associated Equipment
2. Description
The Trusted
TM
Gateway Adaptor T8173 is designed to be connected directly to the rear of a Gateway
module in a Controller Chassis T8100. The adaptor provides two Ethernet communications
connections to remote systems and local connection (keyboard, video and mouse) for the Gateway
module maintenance. Connection between the adaptor and the Gateway module is by a 78 × 2-way
Inverse DIN41612 M-type connector (SK1). Figure 2 shows the physical layout of the adaptor with a
side plate removed.

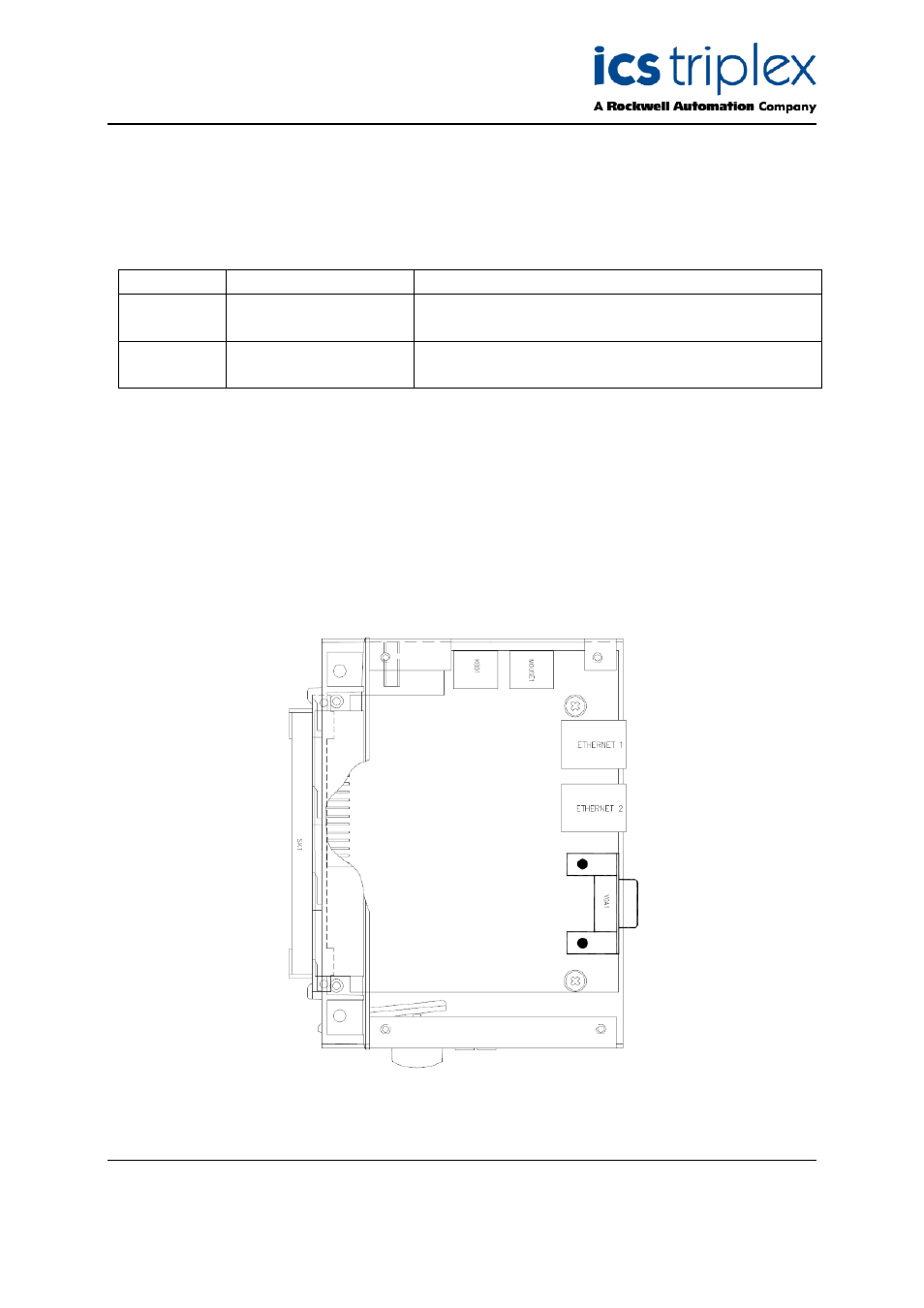

Figure 2 T8173 Internal Layout
Part Number Product Name
Description
T8170
Gateway Module
Single board module, primarily supporting OPC server
T8151B
Communications
Interface
Multiple communications links to external systems
