Triguard sc300e – Rockwell Automation MSR04XI Serial Communications Module RS232 User Manual
Page 2
2
MSR04XI October 2005 – Issue 8

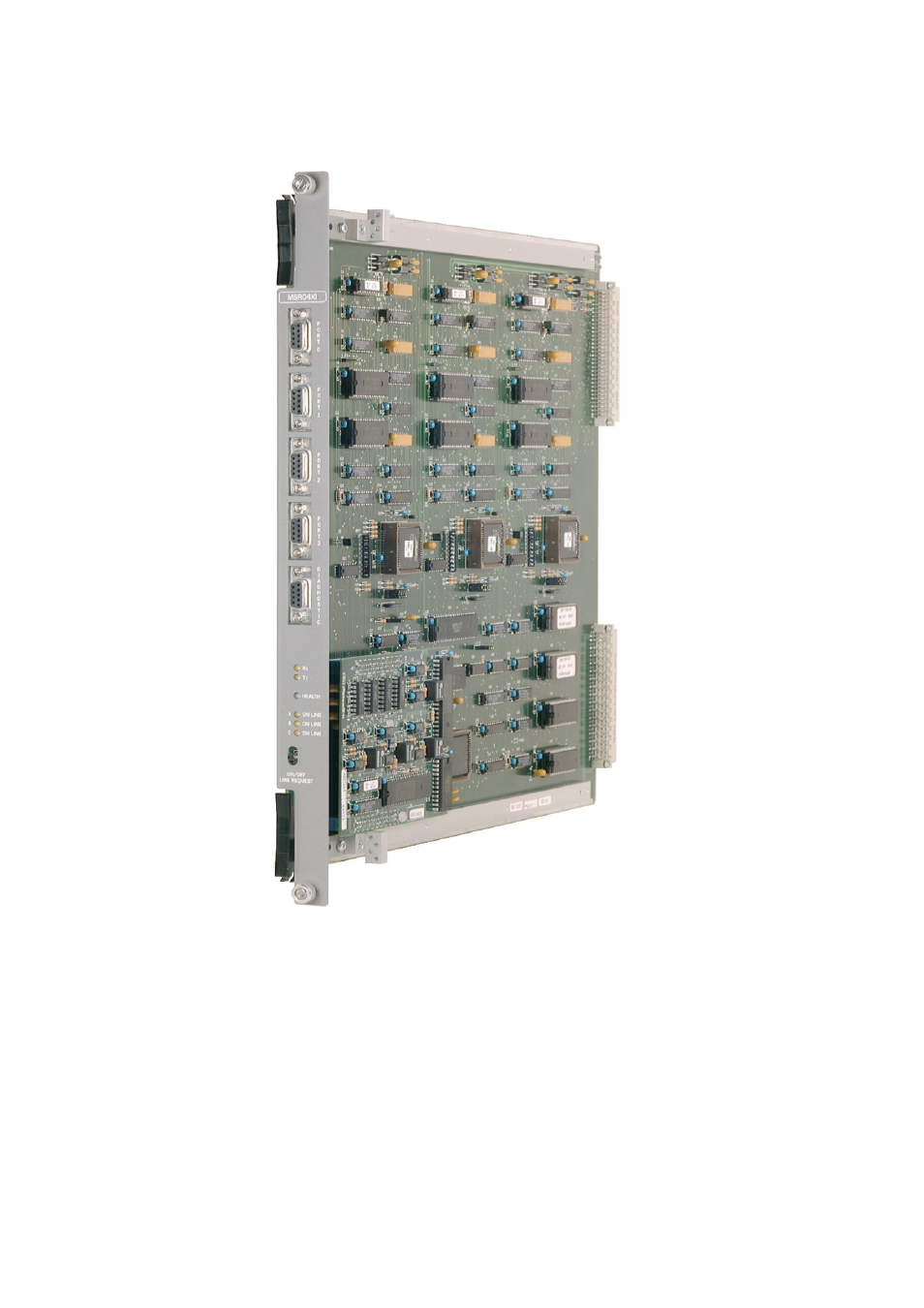

Triguard SC300E
Ejector lever
User COMMports
Diagnosticport
Mechanical coding block
(Upper)
Connector J1
(Module ID)
Link LK2
(Voltage Mon)
Link LK2
Link LK4
Tx / Rx LEDs
Health LED
ON/OFF LEDs
ON/OFF Line
Request switch
Ejector lever
Connector J2
RS232 Daughterboard
Mechanical coding block
(Lower)
