Chassis installation – Rockwell Automation T8100 Trusted Controller Chassis User Manual
Page 14
Trusted
TM
TMR Controller Chassis T8100
Issue 12 Jul 12
PD-T8100
14
10. Chassis Installation
The Trusted
TM
Controller Chassis is installed into a swing-frame or fixed frame as shown in Figure 9
using M5 x 12 Pan Head Taptite screws.

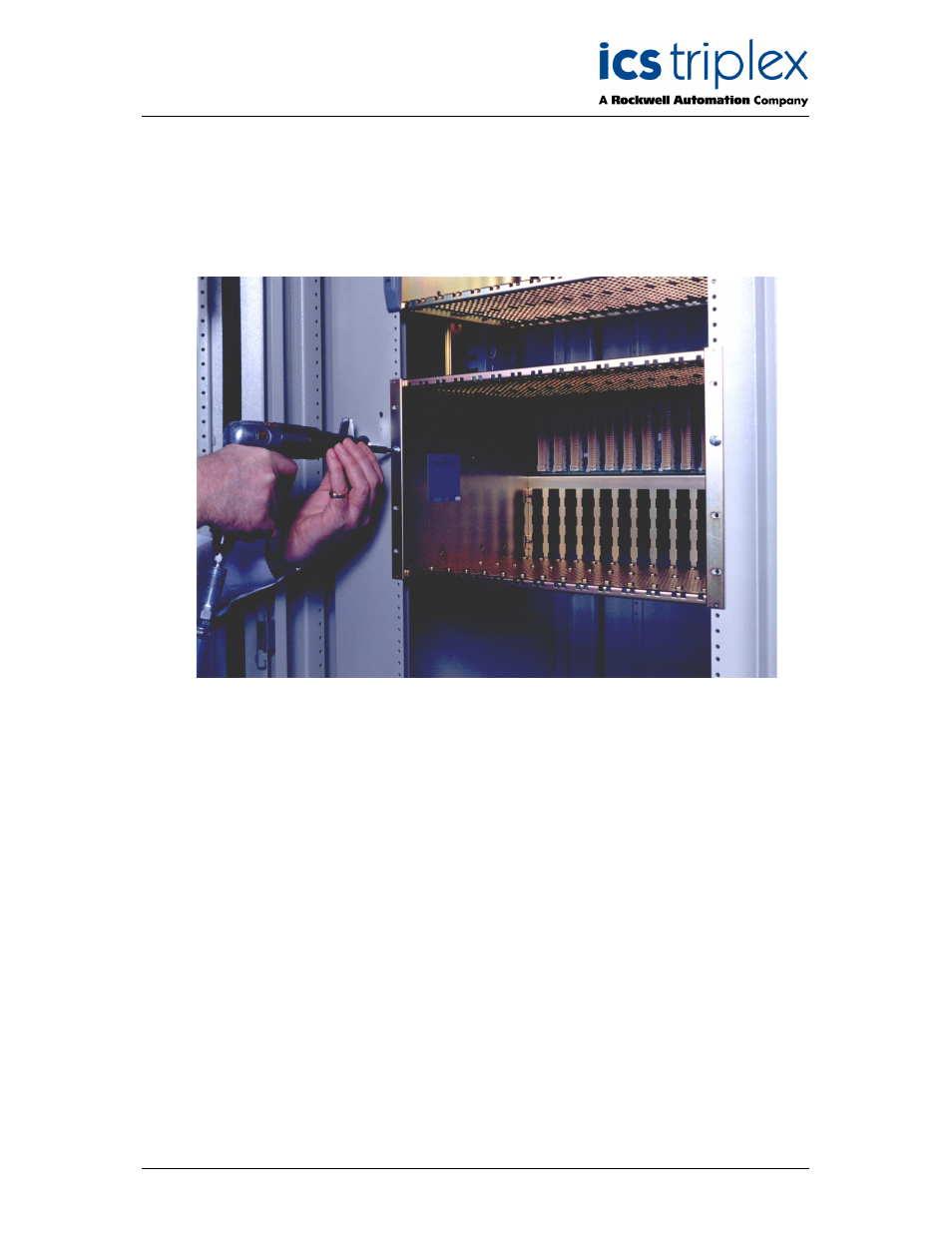

Figure 9 Installation of Chassis
Note that only the inner pair of holes in the mounting ears are used at this stage to secure the Chassis
in the swing-frame. The outer holes are used to fit the plastic facia ears once all chassis and fan trays
are fitted and alignment is correct
Alternatively, the Chassis may be mounted on a panel or equipment sheet using a Panel Mounting Kit
T8380 which comprises a pair of brackets with rear facing ears.
The brackets are first located and fitted using M5 fixings in four positions per bracket. The chassis is
then fitted to the front ears of the brackets using M5 x 12 Pan Head Taptite screws.
