XM Dynamic Measurement Module 7
Publication ICM-IN002A-EN-P - March 2009
About the Module
The 1440-DYN02-01RJ module is a 2-channel general purpose monitor that
supports measurements of dynamic inputs such as vibration, pressure, and
strain.The module can be used for monitoring shaft, casing, and pedestal
vibration in rotating equipment. Inputs accepted include eddy current probe,
standard integrated electronics piezoelectric (IEPE) accelerometer, or voltage
output measurement device such as a pressure transducer. The module also
accepts a tachometer input to provide speed measurement and order analysis
functions. The module can work with most tachometer signal sources such as
eddy current probe, unpowered magnetic probe, and other powered and
unpowered tachometer sensors.
The module provides onboard processing of critical vibration parameters and
advanced alarm and virtual relay logic. It can be integrated with existing
automation and control systems, including PLC’s and displays, to provide
information to aid in protecting machinery from catastrophic failures.

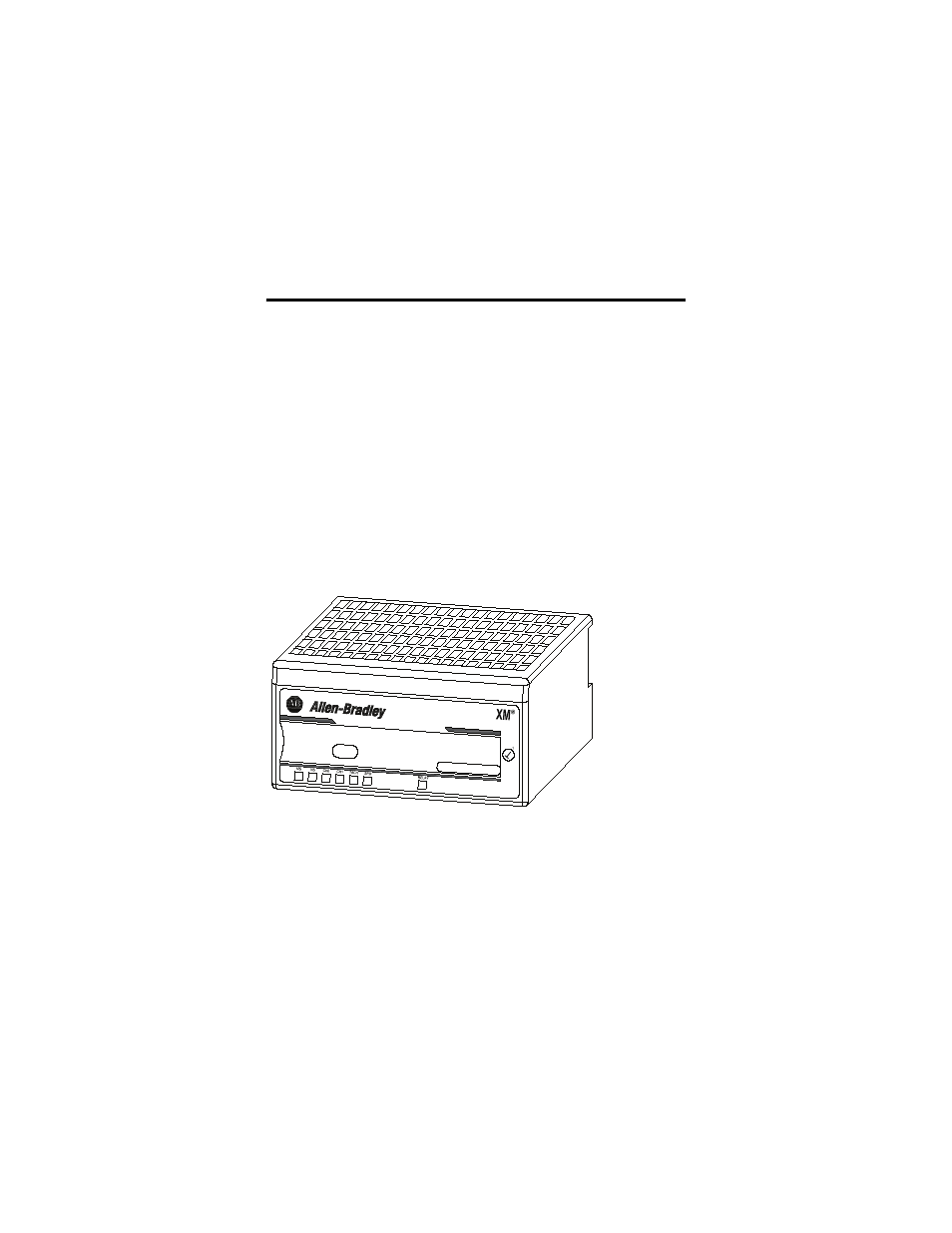

1440-DYN02-01RJ DYNAMIC MEASUREMENT
