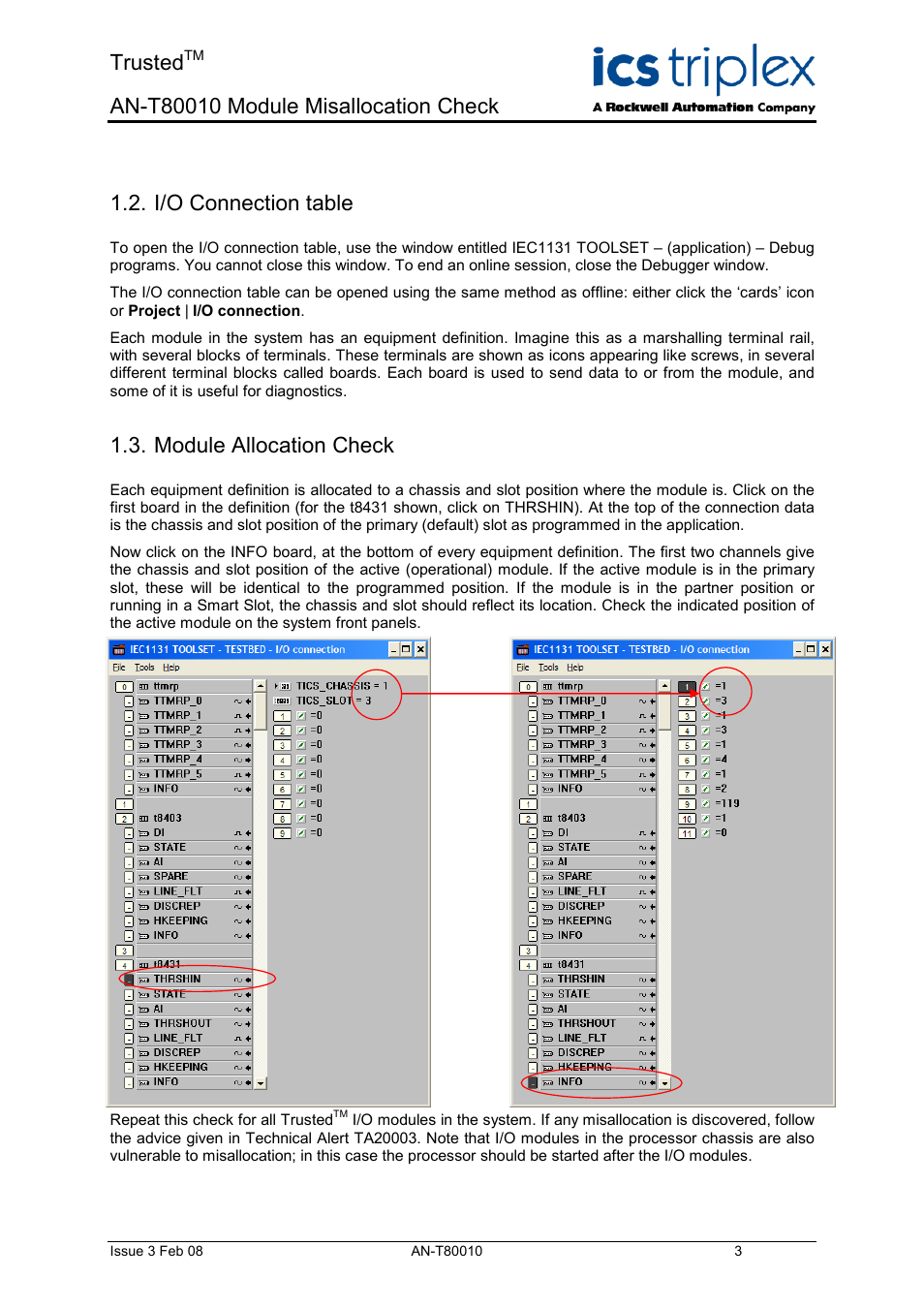

I/o connection table, Module allocation check, Trusted – Rockwell Automation T80010 Application Note Module Misallocation Check User Manual
