Tb1 field connections, Tb3 field connections, Figure 3 tb1 and tb3 connections (example) – Rockwell Automation T8871 Trusted 16 Channel 120V ac Digital Output FTA User Manual

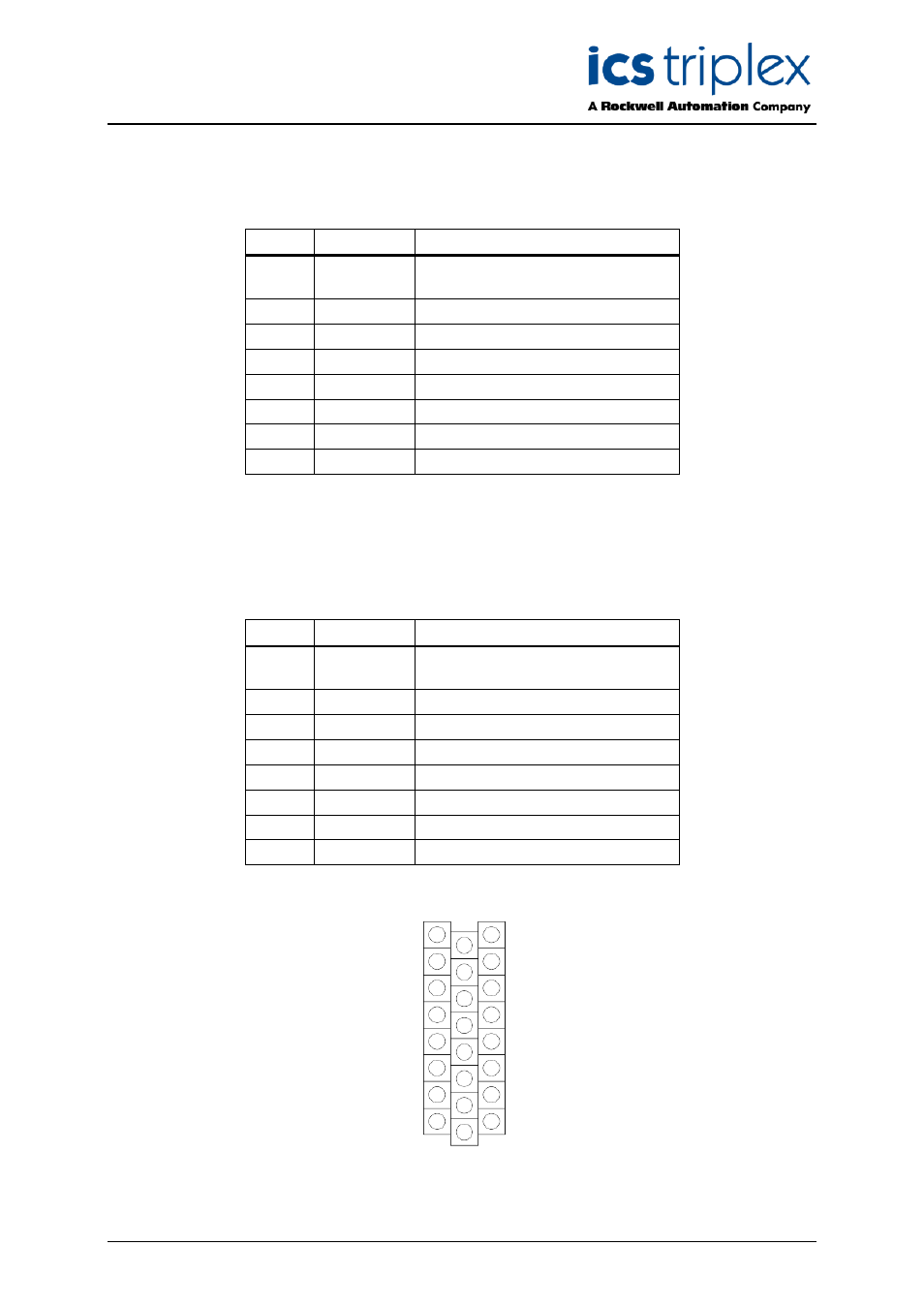

Page 11: Table 5 tb1 connections, Table 6 tb3 connections, Trusted

Trusted
TM
120Vac Digital Output FTA T8871
Issue 2 Feb 08
PD-T8871
11
4.5. TB1 Field Connections
Group Column
Service
Ch 1
L1,N1,E1
Field device connection channel 1
(Live,Neutral, Earth)
Ch 2
L1,N1,E1
Field device connection channel 2
Ch 3
L1,N1,E1
Field device connection channel 3
Ch 4
L1,N1,E1
Field device connection channel 4
Ch 5
L1,N1,E1
Field device connection channel 5
Ch 6
L1,N1,E1
Field device connection channel 6
Ch 7
L1,N1,E1
Field device connection channel 7
Ch 8
L1,N1,E1
Field device connection channel 8
Table 5 TB1 Connections
4.6. TB3 Field Connections
Group Column
Service
Ch 9
L2,N2,E2
Field device connection channel 9
(Live,Neutral, Earth)
Ch 10
L2,N2,E2
Field device connection channel 10
Ch 11
L2,N2,E2
Field device connection channel 11
Ch 12
L2,N2,E2
Field device connection channel 12
Ch 13
L2,N2,E2
Field device connection channel 13
Ch 14
L2,N2,E2
Field device connection channel 14
Ch 15
L2,N2,E2
Field device connection channel 15
Ch 16
L2,N2,E2
Field device connection channel 16
Table 6 TB3 Connections
Figure 3 TB1 and TB3 Connections (example)
L1
N1
E1
Channel 1
