Rockwell Automation Logix5000 Control Systems: Connect a PowerFlex 70 Drive over DeviceNet Quick Start User Manual
Page 37

Rockwell Automation Publication IASIMP-QS030A-EN-P - July 2012
37

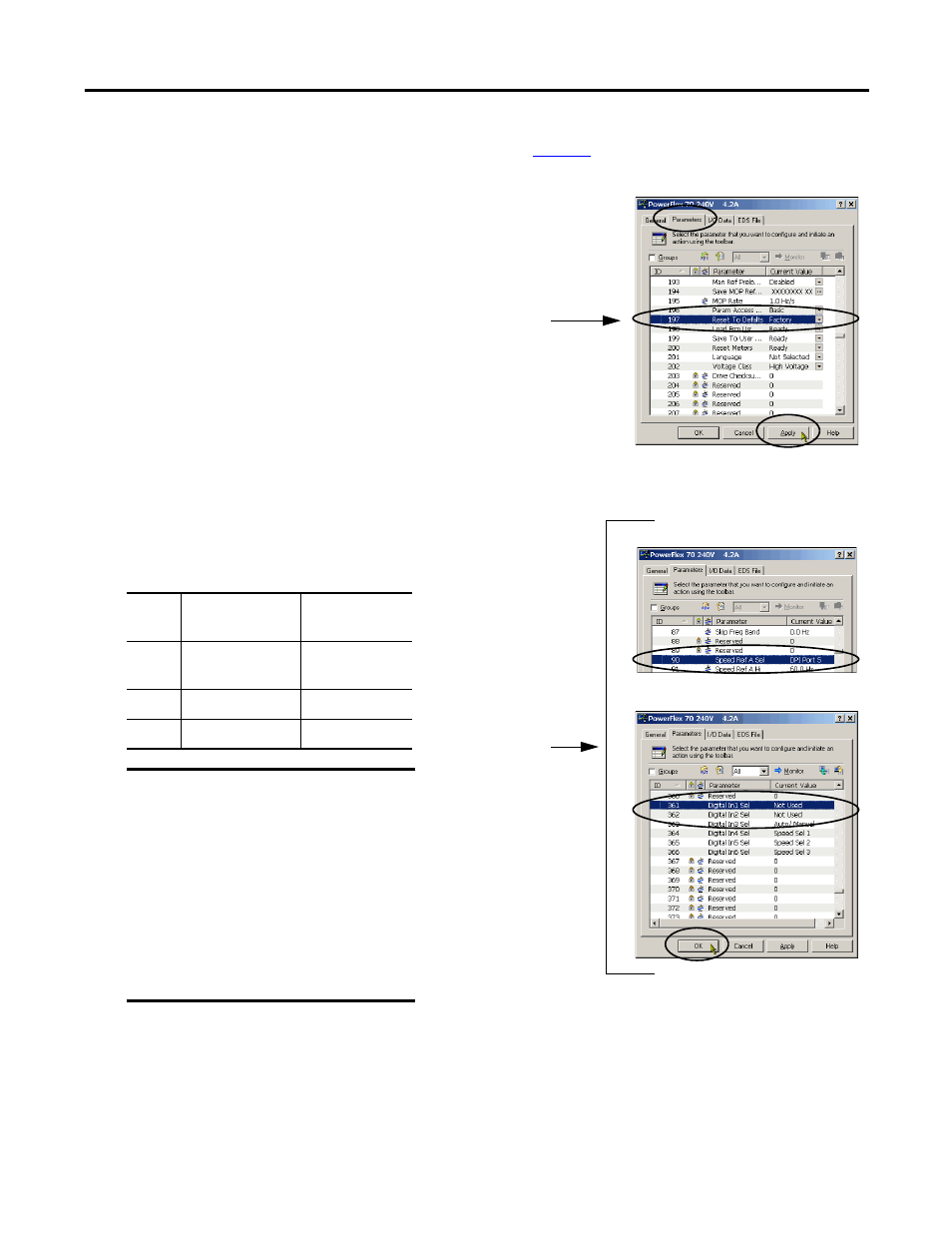

Create DeviceNet Network Software Files Chapter 2
10.
If your drive has not been previously used, skip to
step 12
.
11.
If your PowerFlex 70 drive has
been used previously, reset it to
factory defaults.
a. Click the Parameters tab.
b. From the Parameter 197, Reset
to Defalts pull-down menu,
choose Factory.
c. Click Apply.
12.
Use the pull-down menus to
change the following parameters.
13.
Click OK.
ID
Parameter
Required
Value
90
Speed Ref
A Sel
DPI Port 5
361
Digital In1 Sel
Not used
362
Digital In2 Sel
Not used
IMPORTANT
In this example, you do not
need to change any other
parameters because this quick
start does not include a motor.
In real-world applications, the
drive is always connected to,
and controls, a motor. In that
case, you must change
additional parameters, for
example, parameters 41…45.
Optional Selection
Required Selections
