Module pin-out connections, Rtd1 to rtd8, Ioif – Rockwell Automation T8840 Trusted Temperature FTA User Manual

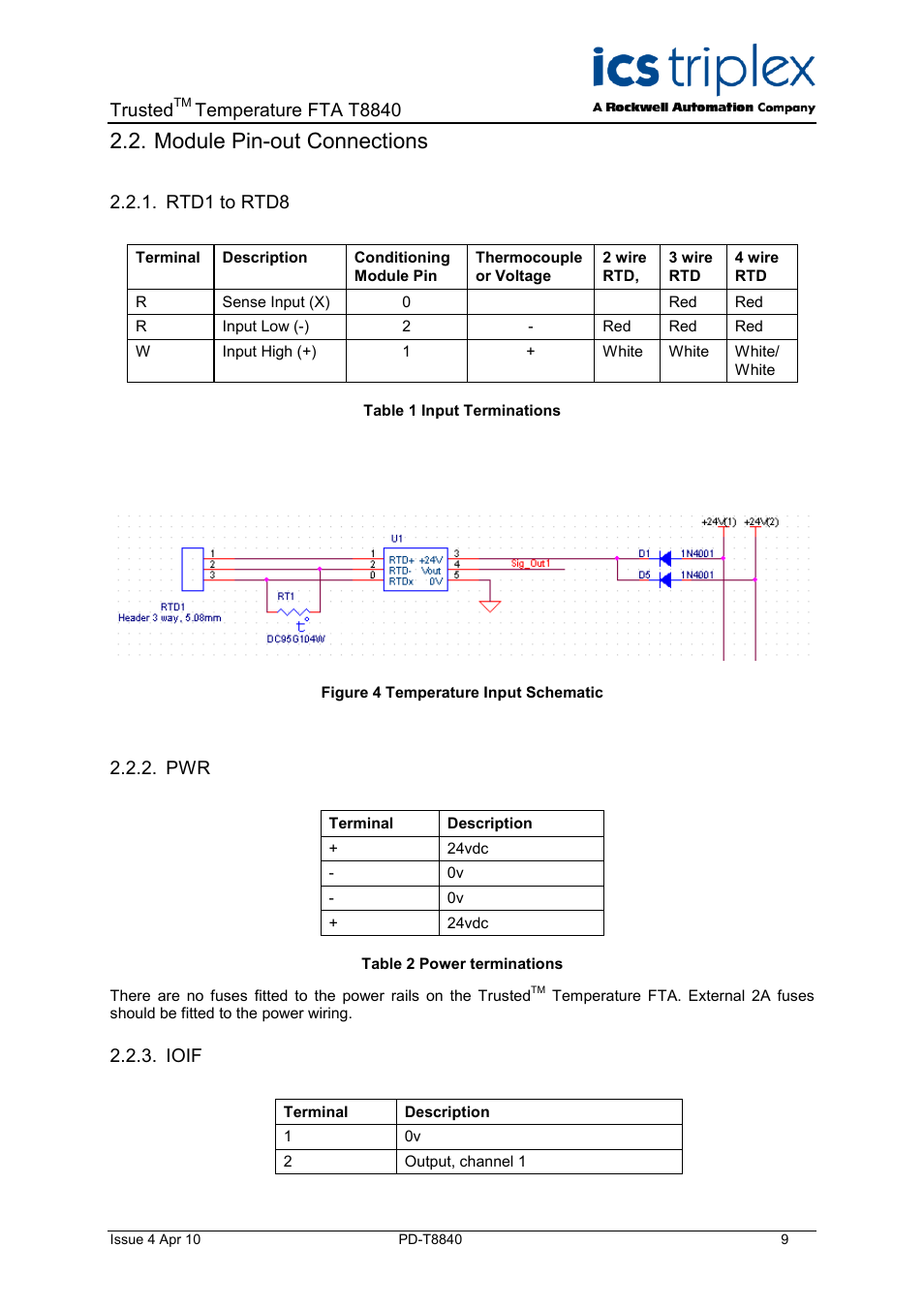

Page 9: Figure 4 temperature input schematic, Table 1 input terminations, Table 2 power terminations, Trusted, Temperature fta t8840

Module pin-out connections, Rtd1 to rtd8, Ioif | Figure 4 temperature input schematic, Table 1 input terminations, Table 2 power terminations, Trusted, Temperature fta t8840 | Rockwell Automation T8840 Trusted Temperature FTA User Manual | Page 9 / 15 Module pin-out connections, Rtd1 to rtd8, Ioif | Figure 4 temperature input schematic, Table 1 input terminations, Table 2 power terminations, Trusted, Temperature fta t8840 | Rockwell Automation T8840 Trusted Temperature FTA User Manual | Page 9 / 15
