Technical description – Rockwell Automation TDI16BIA 16 - Channel Digital Input Termination Card 24Vdc User Manual
Page 4
4
TDI16BIA October 2005 – Issue 3
Triguard SC300E
TECHNICAL DESCRIPTION
PHYSICAL
The TDI16BIA comprises a PCB assembly mounted in a moulded carrier that can be snapped
onto all commercially available styles of DIN mounting rail. Connection to the chassis
backplane is via a multicore cable terminated at either end by a DIN41612 connector.
Figure 2-2 shows the TDI16BIA with the DIN41612 connector attached and mounted on rail EN
50022 type NS 35/5.
Figure 2-1 identifies the main components on the PCB.

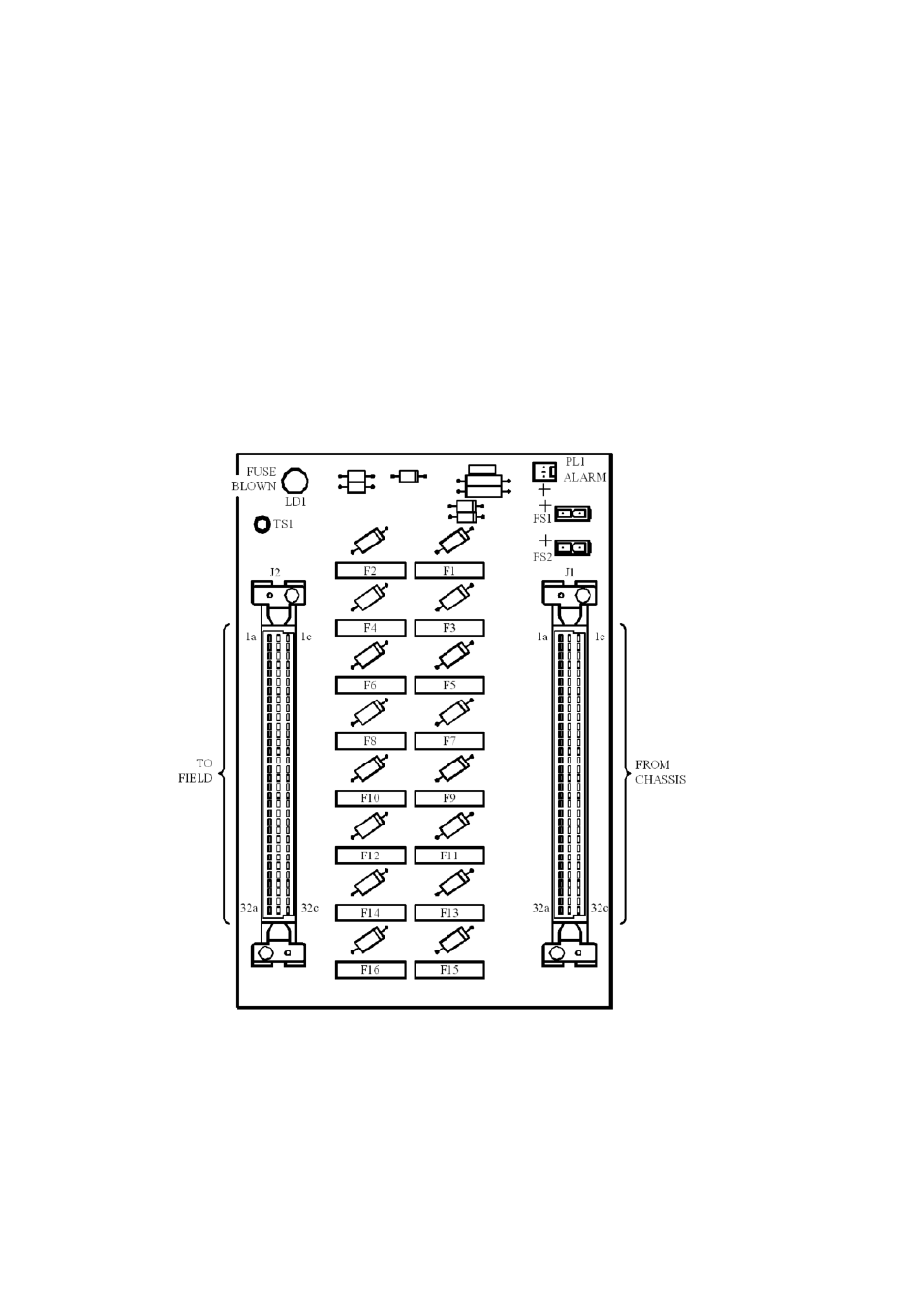

Figure 2-1 General view and component layout
